Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5
Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5
Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5
Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5
Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5
Three-phase motor 2.2Kw 3CV 230/400V 3000 rpm IE1 Flange B5

Three-phase motor 2.2Kw 3HP 230/400V 3000 rpm IE1 Flange B5

€162.38 Tax included

€134.20 tax excl.

Three-phase electric motor 2.2kW (3HP) 230/400V 3000 rpm (2 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 2.
  • Revolutions: 3000 rpm.
  • Flange: B5.
  • Shaft diameter: 24mm.
  • Flange diameter: 200mm.
  • Power: 2,2Kw - 3HP.
  • Size: 90.
  • Energy efficiency: IE1

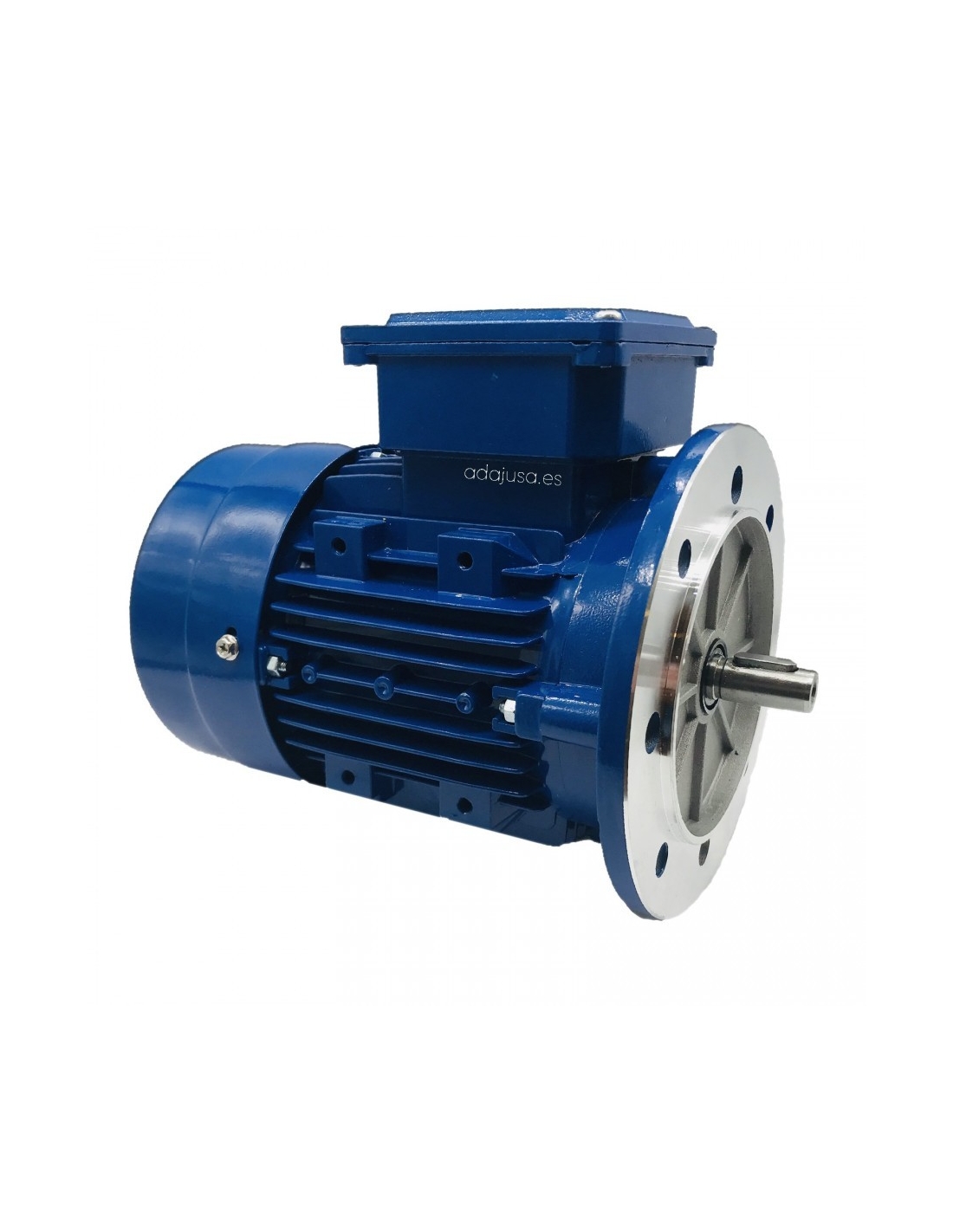

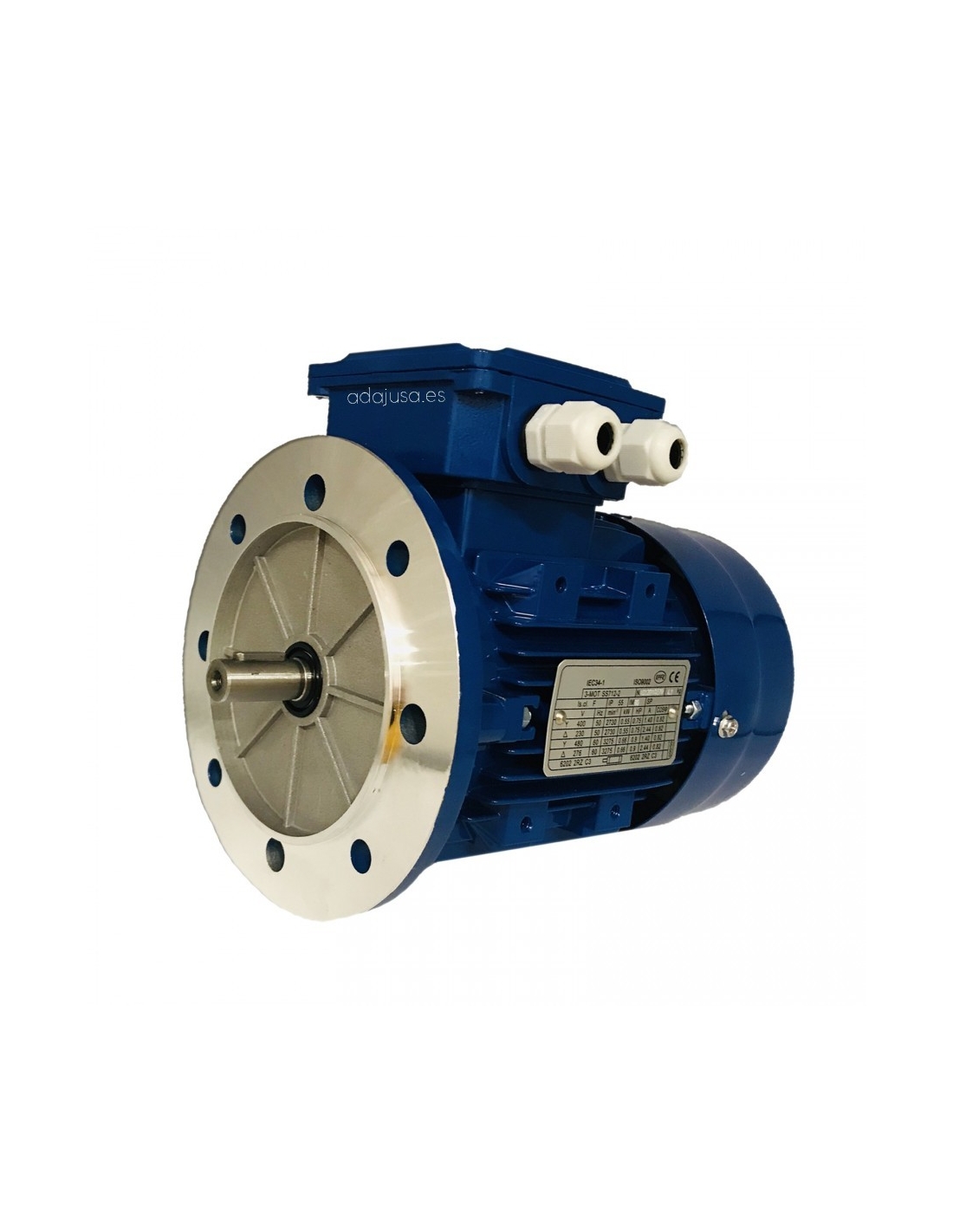

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 2,2kW (3CV) 230/400V 3000 rpm B5 flange. Manufactured in cast aluminum.
Standardized three-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable legs. Winding in enameled copper with a isolation class F. The execution of the housing is closed, has retainer on the output shaft which gives it a degree of protection IP55

characteristics:

  • Manufacturer/Importer: Motorseg
  • Part number:SS90L2B54E1
  • Motor type: squirrel cage asynchronous.
  • Efficiency: IE1
  • Voltage: 230/400 V. III. 50/60 Hz.
  • Number of poles: 2.
  • Revolutions: 3000 (2800).
  • Power: 2.2 Kw (3 hp).
  • Current: 8,61/4,98 A.
  • Efficiency: 78%
  • Continuous duty: S1.
  • Degree of protection: IP55.
  • Type of fastening: B5 flange
  • Shaft diameter: Ø24mm.
  • Flange diameter: 200mm.
  • Housing size 90 (90L).
  • Flange PAM: 200/24.
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 13.2 Kg.
  • CE marked.

For more information, other powers or executions, please consult us.
As in all asynchronous electric motors, the installation of a motor circuit-breaker is mandatory to avoid damage due to overload.

Tabla motores B5-B14 aluminio


For further information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
