Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5
Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5
Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5

Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5

€66.40 Tax included

€54.88 tax excl.

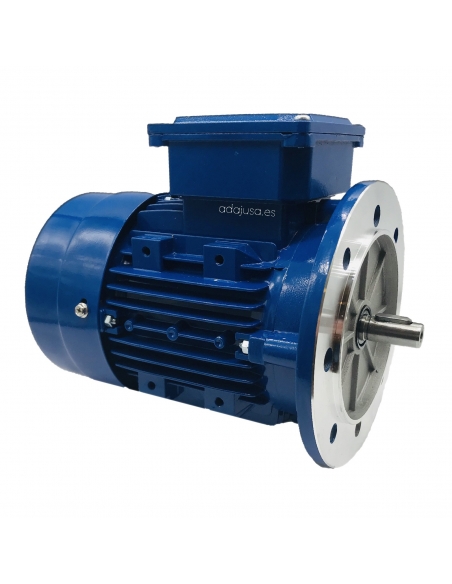

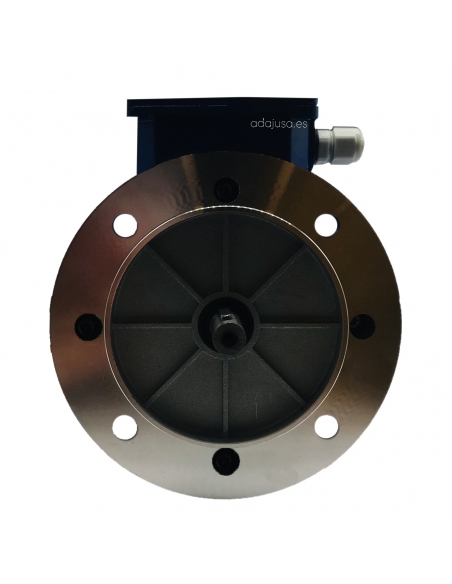

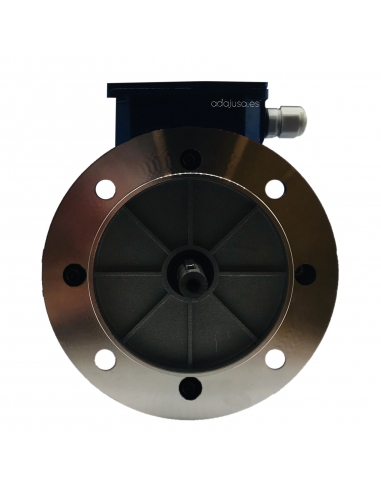

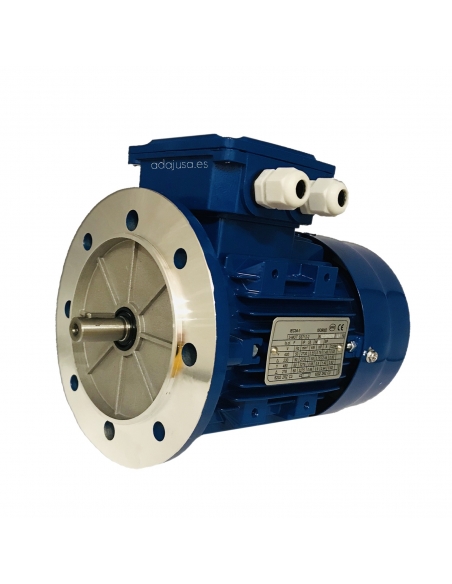

Three-phase electric motor 0.12kW (0.16HP) 230/400Vac., 3000 rpm (2 Pole), Flange B5, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SS-561-2 B5
  • Voltage: 230/400Vac 50/60Hz
  • Number of poles: 2
  • Revolutions: 3000 rpm
  • Flange: B5
  • Shaft diameter: 9mm
  • Flange diameter: 120mm
  • Power: 0.12Kw - 0.16hp
  • Size: 56
  • Energy efficiency: IE1


Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 0.12kW (0.16hp) 230/400Vac 3000 rpm Flange B5. Made of cast aluminum.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-561-2 B5
  • Motor Type: Asynchronous squirrel Cage
  • Efficiency: IE1
  • Voltage: 230/400 Vac., III 50/60Hz
  • Number of poles: 2
  • Revolutions: 2800 rpm
  • Power: 0,12 Kw (0,16HP)
  • Intensity: 0.67/0.38 A
  • Yield: 67%.
  • Continuous service: S1
  • Degree of protection: IP55
  • Clamping type: Flange B5
  • Shaft diameter: Ø9mm
  • Flange diameter: 120mm
  • Housing size 56 (561)
  • PAM Flange: 120/9
  • Color: Blue
  • Housing Material: Aluminum
  • Weight: 4 Kg
  • CE Marking

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla dimensiones motores brida B5 y B14
To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
