Three-phase motor 2.2Kw/3HP 230/400V 750 rpm B3...

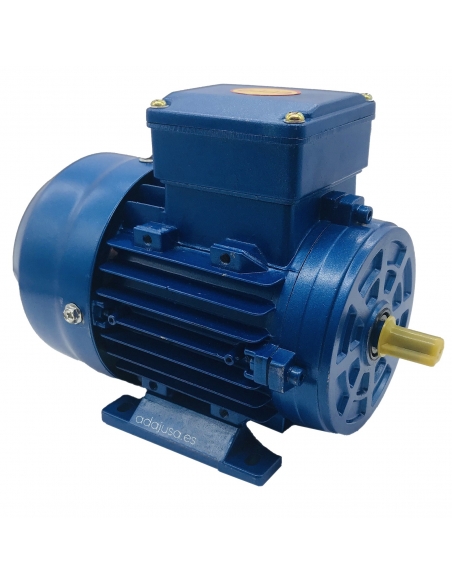

Three-phase motor 2.2Kw/3HP 230/400V 750 rpm B3 foot flange cast housing

Three-phase motor 2.2Kw/3HP 230/400V 750 rpm B3 foot flange cast housing

€390.24 Tax included

€322.51 tax excl.

Three-phase electric motor 2.2kW (3HP) 230/400V 750 rpm (8 Poles) Flange B3 foot, cast housing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • number of poles: 8.
  • Revs: 750 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 38mm.
  • Power: 2.2Kw - 3HP.
  • Size: 132.
  • Energy efficiency: IE1.


Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 2.2kW (3HP) asynchronous 230/400V 750 rpm Flange B3 (foot), cast housing.

characteristics:

  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1
  • Voltage: 230/400 V. III. 50/60 Hz.
  • Number of poles: 8.
  • Revolutions: 750 (715).
  • Power: 2.2 Kw (3 hp).
  • Intensity: 9.92/5.7A
  • Yield: 77.7%
  • Degree of protection: IP55.
  • Type of suction: Flange B3 (foot).
  • Shaft diameter: Ø38mm
  • Housing size: 132 (132S).
  • Color: Blue.
  • Housing material: Casting.
  • CE marking.

For more information, other powers or executions consult.


As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
