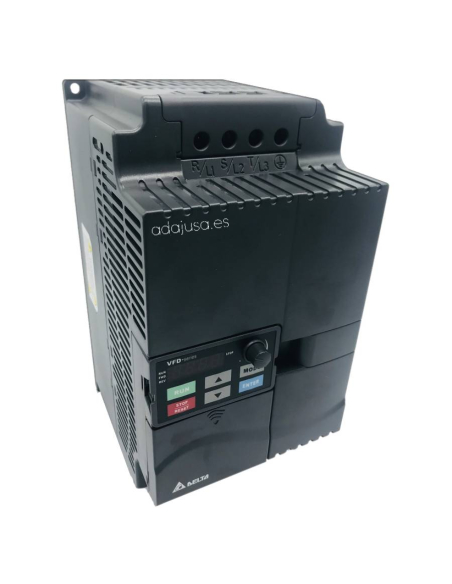

1.5 Kw EL Series Three-Phase Frequency Converter - DELTA
1.5 Kw EL Series Three-Phase Frequency Converter - DELTA

Three-Phase Frequency Converter 1.5 Kw Series EL- DELTA

€306.93 Tax included

€253.66 tax excl.

Three-phase frequency converter 400V 1.5Kw (2CV),RFI filter and integrated programming panel.

Frequency converters allow the control and speed variation of standard three-phase motors.

Manufacturer: DELTA

Reference: VFD015EL43A

Logotipo Delta

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase frequency converter 400V 1.5Kw (2CV), RFI filter and integrated programming panel.

The frequency converters allow the control and speed variation of standard three-phase motors.

This model of frequency converter already has a built-in RFI filter to avoid electromagnetic interference that could occur with other electronic components.

On the front panel, it incorporates all the necessary buttons for motor control and a potentiometer for speed regulation. It can also be controlled from pushbuttons and external potentiometer.

The EL series of frequency converters of the brand DELTA incorporates:

  • Potentiometer.
  • 15 programmable speeds with activation by inputs.
  • Possibility of PID control.
  • RS485 communication.
  • Integrated RFI filter.
  • Programming panel integrated in the front panel (not remotizable).
  • Supports control of communication cards.
  • Braking module not included.


Summary of technical specifications:

  • Manufacturer: DELTA.
  • Part number: VFD015EL43A
  • Rated voltage/frequency: three-phase 380-480Vac +/-10% - 50/60Hz.
  • Max. motor power (Kw): 1,5.
  • Max. motor power (hp): 2.
  • Rated output current (A): 4.2.
  • Rated frequency (Hz): 1.0 to 400.
  • Rated input current (A): 4.3.
  • RFI Filter: Built-in.
  • Frequency tolerance +/- 5%.
  • Control system: SPWM (Sinusoidal Pulse Width Modulation. freq: 3Khz-10Khz.
  • torque characteristics: Including torque compensation and slip compensation, starting torque can be 150% at 5Hz.
  • Overload capacity: 150% of rated current for 1 minute.
  • DC injection braking: Starting frequency 0.1 to 600Hz. Output 0 to 100% of rated current. Duration: 0 to 60 sec.
  • Regenerative braking torque: Approx. 20% (up to 125% with external braking unit).
  • V/F model: Adjustable V/F model.
  • Blocking protection level: Adjustable from 20 to 200% of rated current.
  • Frequency adjustment: via keys, potentiometer or external signals.
  • Start/stop signal: via keys or external signals.
  • Multifunction input signal.
  • Multifunction output indicator.
  • Protection: Self-diagnosis, overvoltage, overcurrent, overvoltage, undervoltage, overload, overheating, external fault, electronic thermal current.
  • Cooling: natural ventilation.
  • Programming and control panel: Integrated.
  • Dust protection: grade 2.
  • Dimensions: Height 174mm x Width 72mm x Depth 136 mm.

Other powers or specifications on request.

Material for professional use, install in compliance with the regulations in force at the installation site.
