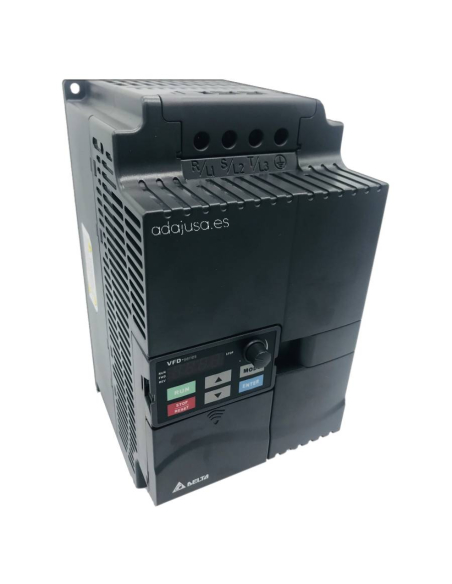

Three-Phase Frequency Converter 3.7 Kw Series EL - DELTA

Three-phase 400V 3.7Kw (5CV)frequency inver ter, RFI filter and integrated programming panel.

The frequency converters allow the control and speed variation of standard three-phase motors.

This model of frequency converter already has a built-in RFI filter to avoid electromagnetic interference that could occur with other electronic components.

On the front panel, it incorporates all the necessary buttons for motor control and a potentiometer for speed regulation. It can also be controlled from pushbuttons and external potentiometer.

The EL series of frequency converters of the brand DELTA incorporates:

• Potentiometer.
• 15 programmable speeds with activation by inputs.
• Possibility of PID control.
• RS485 communication.
• Integrated RFI filter.
• Programming panel integrated in the front panel (not remotizable).
• Supports control of communication cards.
• Braking module not included.

Summary of technical specifications:

• Manufacturer: DELTA.
• Rated voltage/frequency: three phase 380-480Vac +/-10% - 50/60Hz.
• Max. motor power (Kw): 3,7
• Max. motor power (hp): 5
• Rated output current (A): 8.2
• Nominal frequency (Hz): 1.0 to 400
• Rated inrush current (A): 11.2
• RFI Filter: Built-in
• Frequency tolerance +/- 5%.
• Control system: SPWM (Sinusoidal Pulse Width Modulation). freq: 3Khz-10Khz.
• torque characteristics: Including torque compensation and slip compensation, starting torque can be

slip compensation, the starting torque can be 150% at 5Hz.

• Overload capacity: 150% of rated current for 1 minute.
• DC injection braking: Starting frequency 0.1 to 600Hz. Output 0 to 100% of rated current

nominal current. Duration: 0 to 60 sec.

• Regenerative braking torque: Approx. 20% (up to 125% with external braking unit).
• V/F model: Adjustable V/F model.
• Blocking protection level: Adjustable from 20 to 200% of rated current.
• Frequency adjustment: via keys, potentiometer or external signals.
• Start/stop signal: via keys or external signals.
• Multifunction input signal.
• Multifunction output indicator.
• Protection: Self-diagnosis, overvoltage, overcurrent, overvoltage, undervoltage, overload, overheating, external fault, external fault, overvoltage, overvoltage, overcurrent, undervoltage, overload, overload,

overheating, external fault, electronic thermal current.

• Cooling: Forced ventilation.
• Programming and control panel: Integrated.
• Dust protection: grade 2.
• Dimensions: Height 174mm x Width 100mm x Depth 136 mm

Other powers or specifications on request.

Material for professional use, install in compliance with the regulations in force at the installation site.
