Three-phase Gear motor 0.55kW 0.75HP 230/400Vac 1500 rpm ratio 25 T63 (56rpm)

€259.75 Tax included

216.46 tax excl.

PK-9MR0600075254

Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 63 with reduction ratio I:25 that allows output turns of approximately 56rpm.

Motor: three-phase 0.55Kw 230/400Vac 1500rpm
Reducer : size 63 I:25.
Output laps: 56
For output shaft: Ø25mm

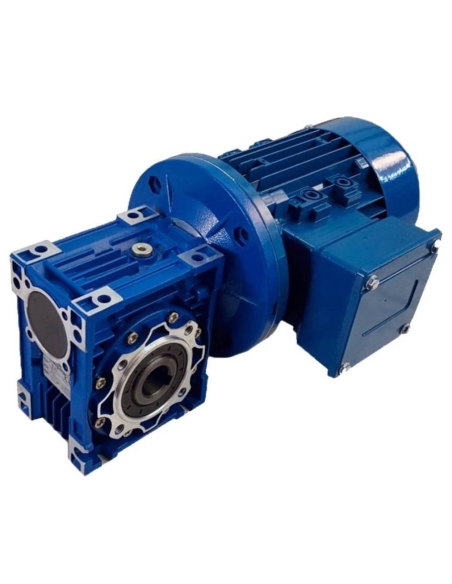

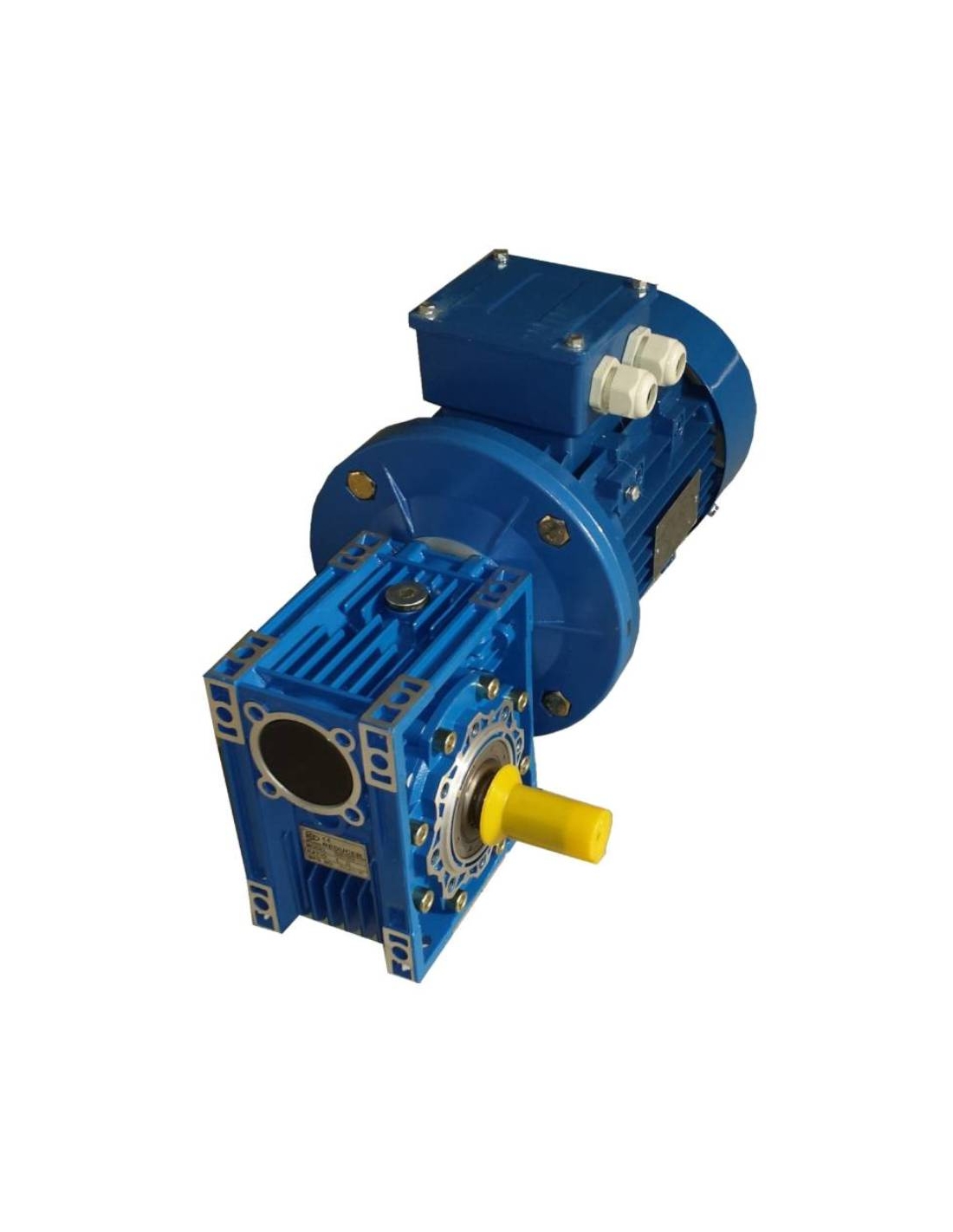

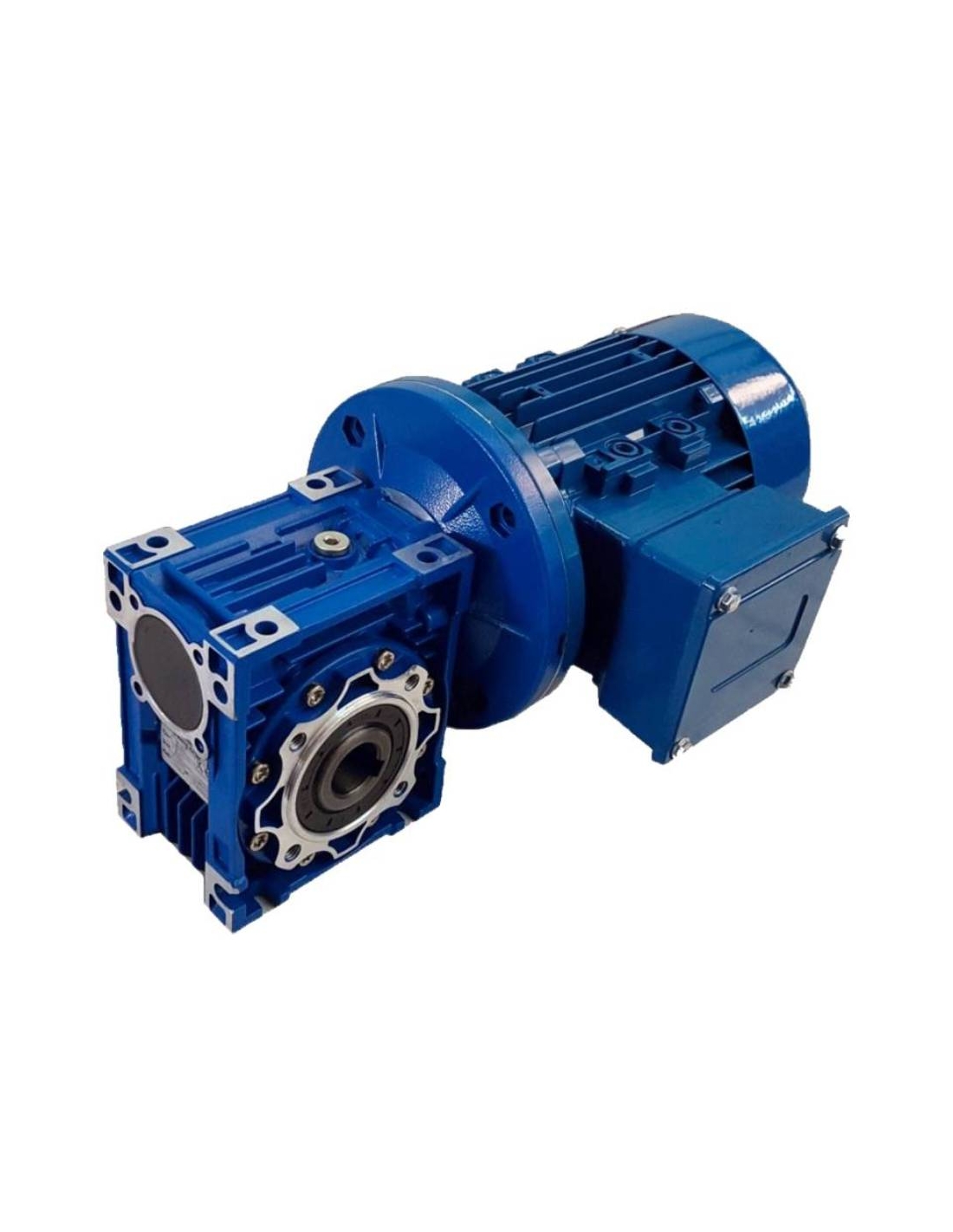

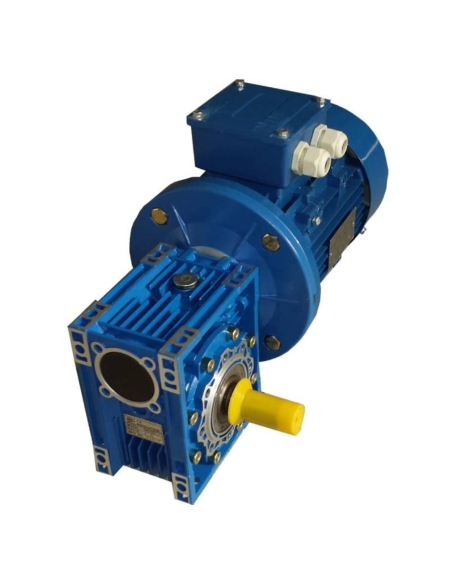

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

Three-phase motor 0.55Kw 0.75hp 230/400V 1500 rpm IE1 Flange B5

Three-phase motor 0.55Kw 0.75PS 230/400V 1500 rpm IE1 Flange B5

€117.64

Endless reducer crown Size 63 Flange PAM 200/19 - Motor housing 80 B5 Reduction ratio-25

€142.12

1 question about the product

Privacy

Shipments

Returns

Three-phase Gear motor 0.55kw 0.75HP 230/400Vac, reducer size 63 with reduction ratio I:25 that allows an output of approximately 56rpm at its output.

Engine technical characteristics:

Three-phase motor.
Nominal voltage: 230/400Vac 50/60Hz.
Rated power: 0.55Kw. (0.75HP).
Revolutions: 1500 rpm .

Technical characteristics of the reducer:

Reducer type: crown worm.
Reducer size: 63.
Reduction ratio: 25.
Final turns: 56 rpm .
Output torque: 72 Nm.
Service factor: 1.9
For output shaft: Ø25mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site

Dimensions worm gear crown

Gearbox dimensions worm gear crown gear

Download (1.75MB)

Gearbox replacement guide

Guide for gearbox replacement worm gear corona

Download (2.3MB)

Questions

Question

Bonjour, le réducteur dimension 63 de rapport 25 est-il irréversible ? L'utilisation est un monte charge. A partir de quel rapport de réduction est-on garanti d'être irréversible ? Sinon peut-être faut-il plutôt un moteur 2800T/mn et avec réducteur de rapport 50 ? Je n'ai rien trouvé sur cette question dans vos documentations.
Merci pour vos conseils.

Answer

Bonjour.

Ce type de réducteur n'est pas adapté au levage de charges, si avec le temps et suite à l'effort la vis sans fin ou la roue à vis sans fin se détériorent, la charge tombe sans contrôle ce qui est extrêmement dangereux, pour lever des charges on utilise un autre type de réducteur, qui en cas de détérioration reste bloqué. Les machines destinées à soulever des charges doivent être fabriquées selon des spécifications très strictes pour être sûres.

Nous ne vendons que des réducteurs à vis sans fin.

Cordialement

Philippe on 05/13/2023 22:26:48
