Hydraulic crimper for terminals copper from 16 to 300 mm2
Hydraulic crimper for terminals copper from 16 to 300 mm2
Hydraulic crimper for terminals copper from 16 to 300 mm2

Hydraulic crimper for terminals copper from 16 to 300 mm2

€108.43 Tax included

€89.61 tax excl.

Hydraulic tool for manual crimping of copper and aluminum terminals, hexagonal crimping that guarantees the correct fixing of the terminal to the cable. Allows crimping of copper terminals from 16 to 300 mm2 and aluminum terminals from 10 to 240 mm2.

Facilitates manual crimping by providing a force of 10kN. Ergonomic non-slip PVC handle and 360° rotating articulated steel head that allows easy opening for the exchange of the dies according to the crimping section of the terminal. Easily removable and interchangeable dies included in the scope of supply.


Part No.: HPR-1



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Out of stock

No queries yet, leave the first!


Hydraulic tool for manual crimping of copper and aluminum terminals. Allows crimping of copper terminals with cross-section from 16 to 300 mm2 and aluminum terminals from 10 to 240 mm2, hexagonal crimping that guarantees the correct and secure fixing of the terminal to the cable.


Easy and quick manual crimping without effort thanks to its mechanism with hydraulic cylinder that provides a crimping force of 10kN, thus facilitating the crimping of large cross-section terminals. The tool has an ergonomic non-slip PVC handle for comfortable handling, a high quality steel head with 360º rotation that allows easy opening for the exchange of the dies according to the crimping section of the terminal. The dies are easily removable and interchangeable and are included in the supply, 11 dies for the crimping of different terminal sections of both copper and aluminum.

The tool includes a manual switch or knob for the application and release of pressure; when the terminal is crimped the switch must be actuated so that the tool applies the necessary force for crimping, once the function is performed the switch must be returned to its original position for the automatic release of the pressure by a hydraulic release system.

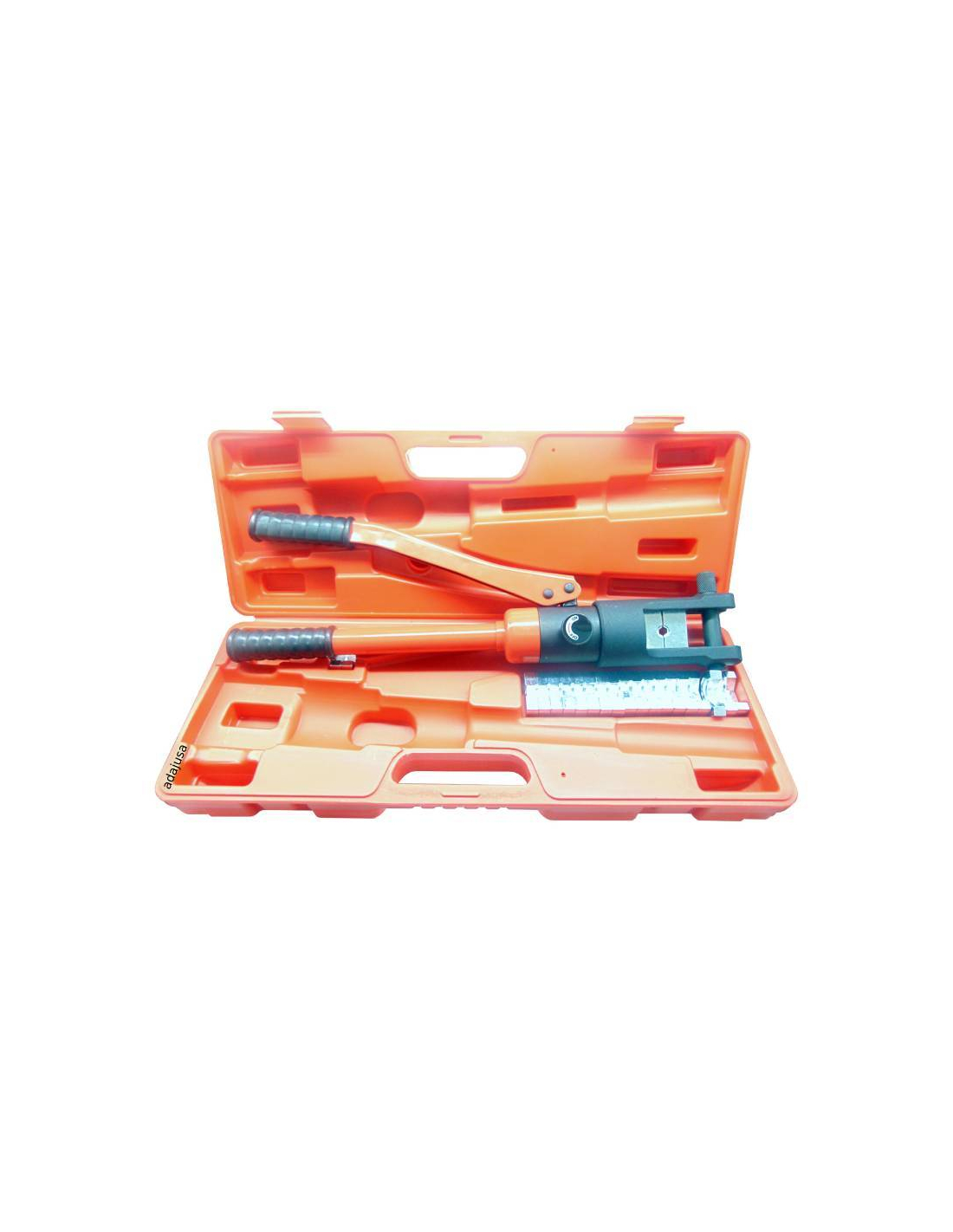

The supply includes the crimping tool, eleven different dies for crimping terminals of different sections and a plastic case for transport and storage.



Technical features:

  • Manufacturer/supplier: OMU/Mixvill
  • Manufacturer's reference: HPR-1
  • Pressing range Copper: 16 - 300mm2
  • Crimp range Aluminum: 10 - 240mm2
  • Pressing force: 10kN
  • Rated operating pressure: 700kg/cm2
  • Weight: 3.5kg
  • Length: 545mm
  • Full crimp cycle
  • Hexagonal crimp form using removable and interchangeable dies
  • Dies: 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2
  • Oil type: Number 32
  • Accessories: Tool, crimping dies, carrying case
  • Standards: EN-792-1


Material for professional use
