Single discs or ring gears Z37 3/4 x 7/16 12B-1 ISO DIN 606

€73.51 Tax included

€60.75 tax excl.

Toothed discs or simple toothed chains for roller chain 3/4" 12B-1 according to European standard DIN ISO 606

Reference: DISC Z37 3/4

Teeth: 37

ISO: 12B-1 (3/4" - 7/16mm)

No queries yet, leave the first!

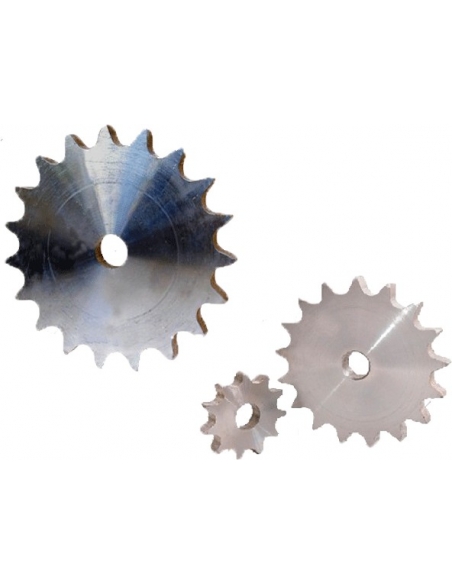

Toothed discs or simple toothed crowns Z37 (37 teeth) for roller chain 3/4" 12B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISC Z37 3/4

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristics:

  • 3/4” x 7/16”mm ISO 12B-1
  • 19.05 x 11.68mm
  • Teeth: 37
  • Tooth Radius: 19mm
  • Curved area width: 2 mm
  • Tooth width (h1): 11.1 mm
  • Outer Diameter (OD): 232.9
  • Primitive diameter (Dp): 224.64
  • Hub diameter (d): 25 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
