Pack

SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA

Pulley V-belt 180mm 3 slot for shaft diameter...

Pulley V-belt 180mm 3 slot for shaft diameter 28mm type SPA

€129.06 Tax included

€106.66 tax excl.

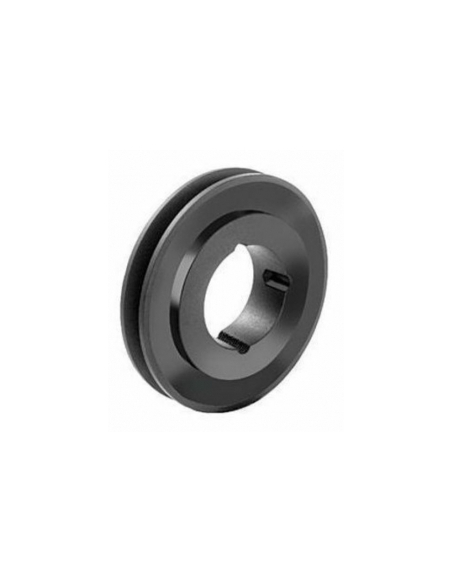

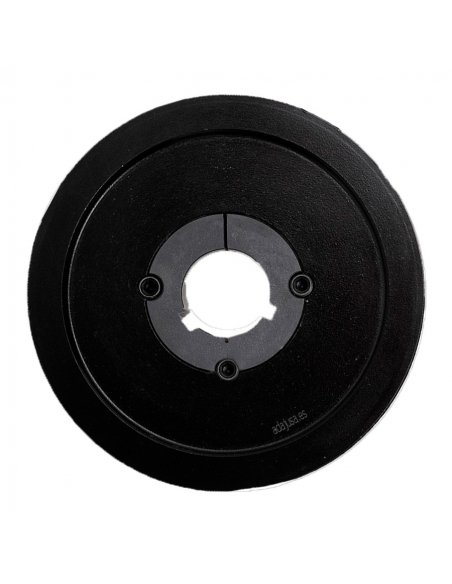

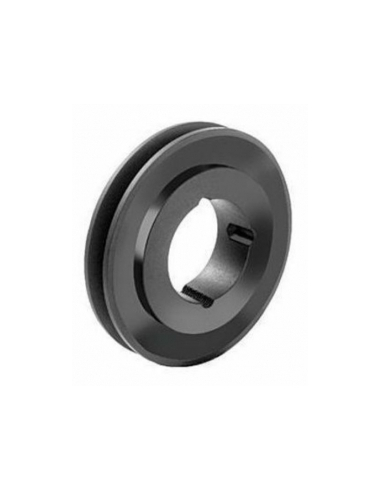

Pulley for Ø180mm V-belts, 3 slot , with taper lock with 28mm shaft diameter and keyway. Valid for all belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211.

Belt type: "V" profile type A and SPA
Pulley diameter (Dp): 180 mm
Number of strap slots : 3
Taper: 28mm central shaft diameter with 8mm key

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

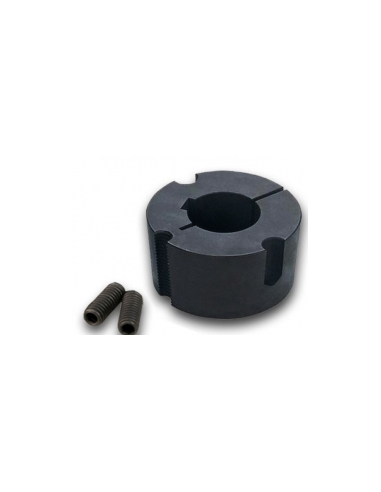

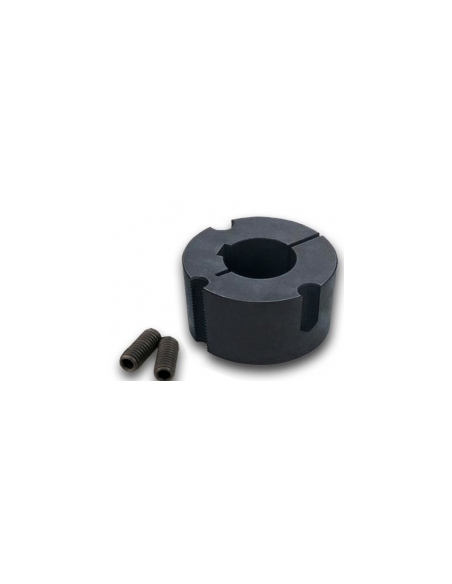

Conical bushing - taper lock size 2517 Shaft diameter-28 mm

€32.03

Pulley V-belt SPA 170x3 slots taper T2517 - adajusa.es

Pulley V-belt SPA 180x3 slots taper T2517

€97.03

No queries yet, leave the first!

Privacy

Shipments

Returns

Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183 standard.

Machined trapezoidal pulley with "Taper Lock" conical bushing, with the hole and keyway already machined to a diameter of 28mm and with an 8mm keyway, with all the grub screws and screws, made of GG25 machined iron.

Pulley dimensions:

(Dp): 180mm
(OD): 185.5mm
(F): 50mm
(J): 146mm
(K): 5mm
(L): 45mm

Shaft and keyway dimensions:

Drill dimensions for adajusa keyways

Diameter for shaft: 28mm
Keyway (b): 8mm
Dimension t: 31.3mm

Note: The reference of the taper and the supplied pulley may vary, always adjusting to the requested dimensions.

Material for professional use, install in compliance with the regulations in force at the installation site.
