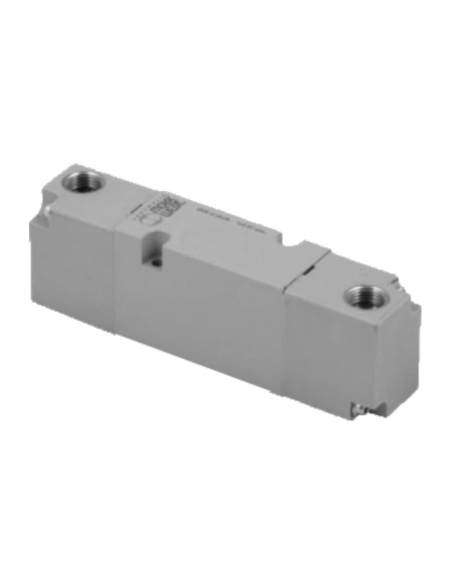

70 pneumatic series valves on 5/2 monostable base

Reference: 7011011100


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

70 pneumatic series valves on 5/2 monostable base

Features:
  • Manufacturer: Metal Work
  • Reference: 7011011100 - PNV B5 PNS OO
  • Operating pressure (bar): Empty ÷ 10
  • Minimum drive pressure: • monostable (bar): 2.5
  • Operating temperature (°C): -10 ÷ +60
  • Nominal diameter (mm): 5
  • Conductance C (Nl/min · bar): 107.69
  • Critical ratio b (bar/bar): 0.29
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 320
  • Flow rate at 6 bar ΔP 1 bar (Nl/min): 450
  • Monostable TRA/TRR at 6 bar (ms): 6/15


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
