1/4 2/2-way valve with pneumatic rotary actuator

Valve 1/4 2/2 way stainless steel with actuator pneumatic rotary - Metal Work

Name: Valve 1/4 2/2 way stainless steel with actuator pneumatic rotary - Metal Work
Brand: Metal Work
SKU: VB22IA008032D
Price: 153.06 EUR
Availability: PreOrder

€153.06 Tax included

€127.55 tax excl.

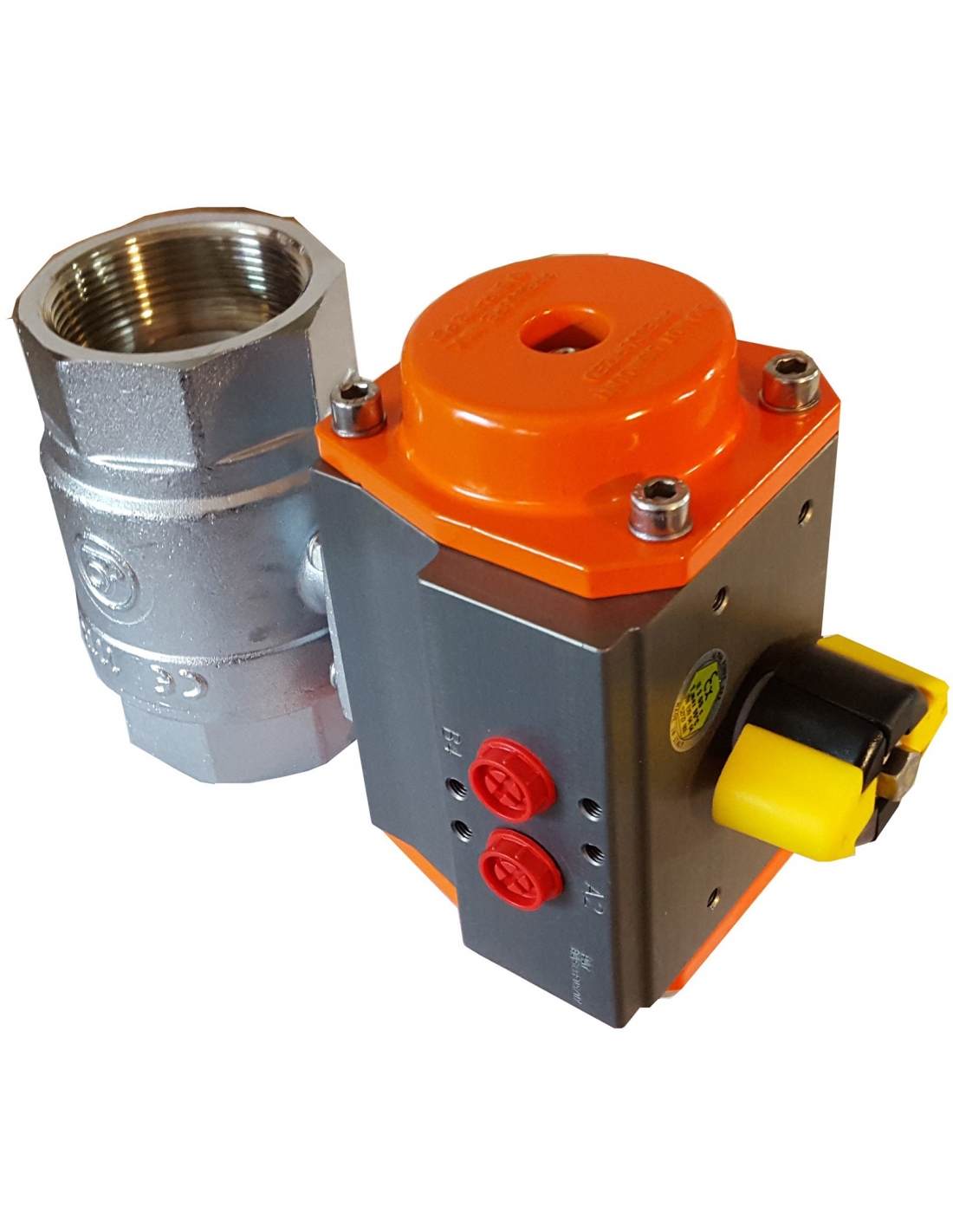

Stainless steel 1/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: Z33VB22IA008032D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/4" ball valve, made of stainless steel, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

Valves with ATEX certification.

Technical characteristics:

Manufacturer of the assembly: Metal Work.
Manufacturer's reference: Z33VB22IA008032D - W0900300001
Type of actuator: Ø32 double acting pneumatic (AP32).
Valve type: 2 way 2 positions (2/2).
Thread type: G 1/4" female.
Valve body: Stainless steel AISI 316
Ball: Stainless steel
Seals: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador 2 vias acero inoxidable

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.
