Signaling box rotary actuators - Metal Work

Name: Signaling box rotary actuators - Metal Work
Brand: Metal Work
SKU: EPP2M01G
Price: 84.324 EUR
Availability: PreOrder

€84.32 Tax included

€70.27 tax excl.

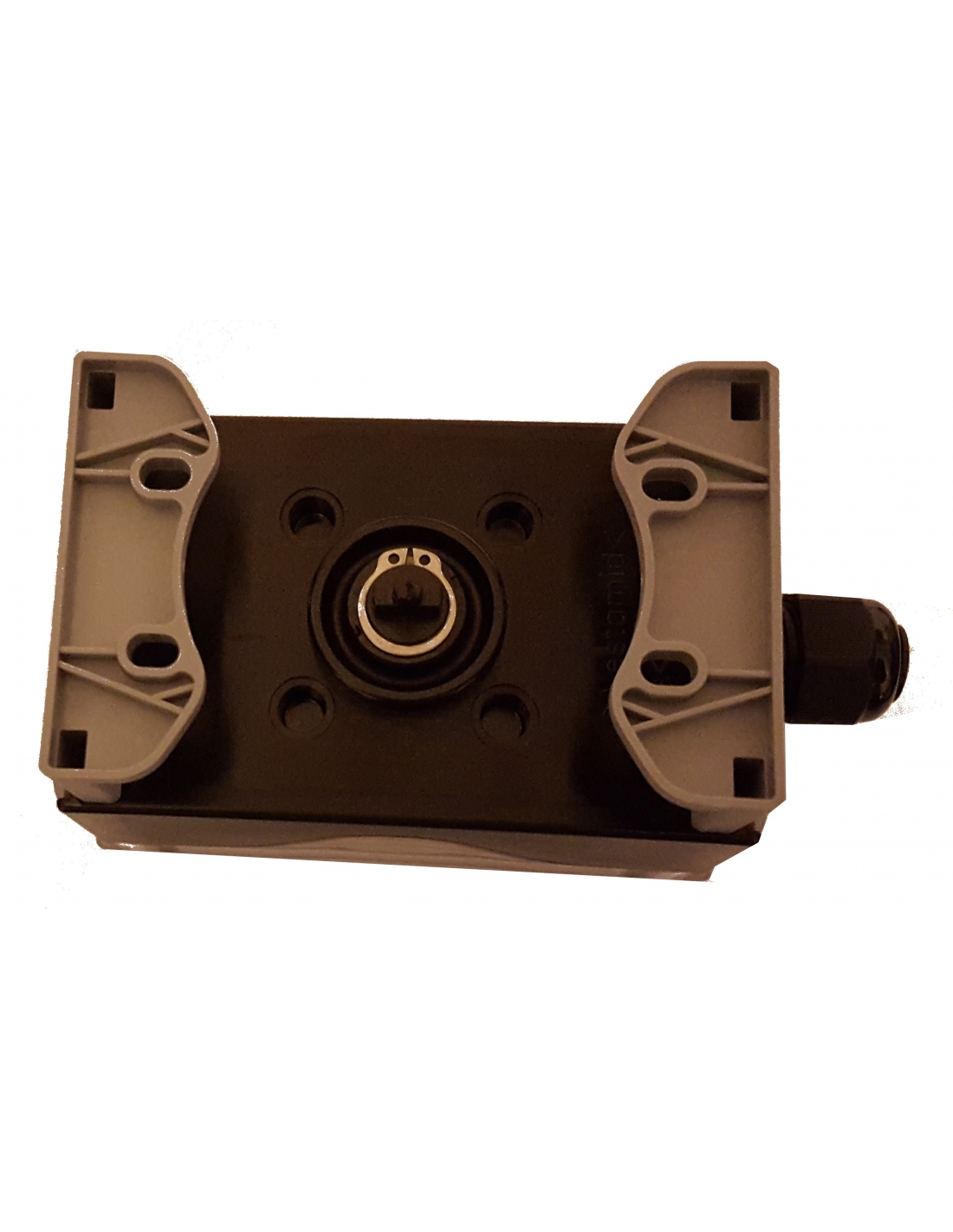

Signaling box for rotary actuators, with 2 electrical contacts with switched contacts and actuator position display.

Made of black polyamide with transparent polycarbonate cover.

Reference: EPP2M01-G

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Signal box for electrical indication of the position of the rotary actuator on which it is installed. It has 1 switched contact in each of the limits.

Through its transparent polycarbonate cover it allows to see the indication of the position of the actuator. The dimensions are 80x30x20mm.

The charging capacity of the electrical contacts is 10A 250Vac or 2.5A 24Vdc, with an IP67 degree of tightness. Cable entry by M20 cable glands.

Provider: Metal Work
Reference: EPP2M01G

Diagrama de conexión caja de señalización

Dimensiones cajas de contactos

Material for professional use, install in compliance with the regulations in force at the place of installation.
