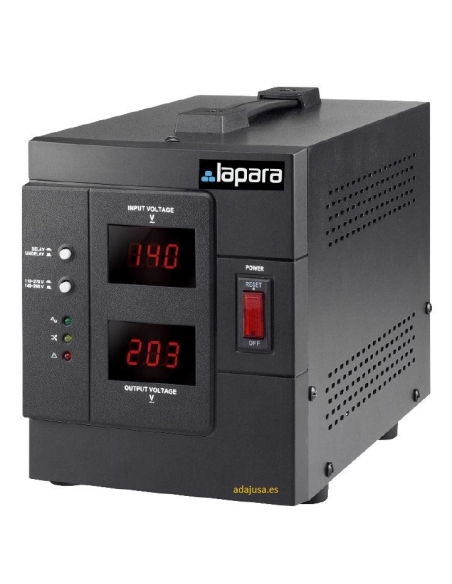

This AVR (Automatic Voltage Regulator) has been designed to automatically maintain a constant voltage level to protect sensitive electronic equipment from voltage surges and sags.
Microprocessor controlled and equipped with thermal sensors, it offers a very efficient protection to the connected equipment.
The type of output voltage regulation is by means of voltage steps, with a maximum output voltage variation of ±10% over the set output voltage. This type of equipment does not provide additional power supply when the input voltage is interrupted; if the input voltage is interrupted, the output voltage is interrupted immediately.
The main characteristics of this type of equipment are as follows
- Wide input voltage: 110V - 270V or 140V - 260V
- Dual LCD display of input and output voltage
- Voltage regulation: ±10%
- Type of protection: Short circuit, overload and overheating
- Schuko type output sockets
- Telephone line protection
- Compact design
- 2-year on-site warranty provided directly by the manufacturer (*)
Technical characteristics:
- Manufacturer/Importer Lapara
- Model: LA-AVR-2000
- Voltage: 220/230 Vac
- Input Voltage Range: 110-270V or 140-260V
- Input frequency range: 50-60Hz
- Efficiency: Normal mode 95%, AVR mode 92%
- Maximum power: 2000VA - 1600W
- Frequency: 50-60Hz
- Sockets: 2 schuko type
- Indicators
- Normal indicator, AVR indicator, delay time setting and fault indicator LEDs
- Digital meter: Input Current / Output Current
- Dimensions: 234 x 134 x 181mm
- Net weight: 6.55 Kg.
- Humidity: 0-90% relative humidity (non-condensing)
- Working temperature: 0..40ºC
- Noise level
(*) On-site warranty offered by the manufacturer, only for the Spanish peninsular territory.
