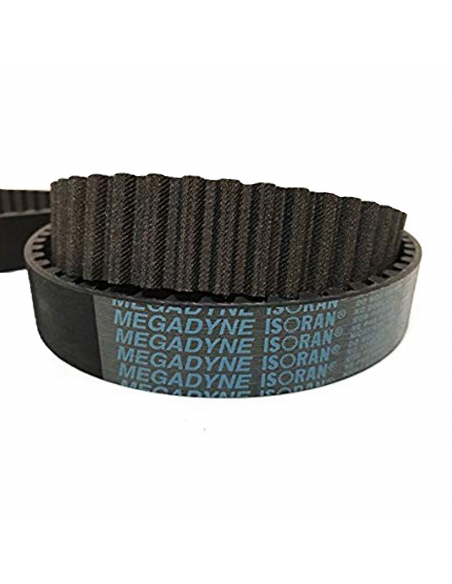

GOLD XPZ 750 LINE Snated Trapecial Strap - MEGADYNE

GOLD XPZ 750 LINE Snated Trapecial Strap - MEGADYNE

€9.61 Tax included

€7.94 tax excl.

LINE GOLD snant V-belt type of profile "XPZ" 9.7x8mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacture with an EPDM rubber compound that can chemically withstand harsh environments, aging, ozone, UV and heat.

  • Ref: LINE GOLD XPZ 750
  • Megadyne Part number: 020711140060
  • Primitive development length (Lw): 750mm
  • Outer length (La): 763mm

tipo-XPZ



No queries yet, leave the first!


Gold line V-belt, with profile section type "XPZ" of 9.7x8mm, specially designed for maximum performance in a wide range of industrial applications, agricultural machinery and gardening.

Manufactured with high quality raw materials to provide straps with high performance, low stretch and very resistant to wear. Careful design and manufacture with an EPDM rubber compound that can chemically withstand harsh environments, aging, ozone, UV and heat.

They are also lubricant resistant and with a wide temperature range (-30oC to +80oC).

Manufactured according to REACH regulations and tolerances according to ISO 4184

Composicion correas dentadas

Technical details:

  • Manufacturer: MEGADYNE.
  • Series: GOLD Line.
  • Reference: XPZ 750.
  • Part number: 020711140060
  • Type: Snated section "XPZ".
  • Primitive development length (Lw): 750mm.
  • Outer length (La): 763mm.
  • Section dimensions 9.7x8mm.
  • Lubrication resistant: SI.
  • Temperature range: -30oC to +80oC.
  • Tolerance: according to ISO 4184
  • Weight: 0.06 Kg



Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
