non-return valve 4mm tube connection - M5 thread - Aignep

non-return valve 4mm tube connection - M5 thread - Aignep

€5.80 Tax included

€4.79 tax excl.

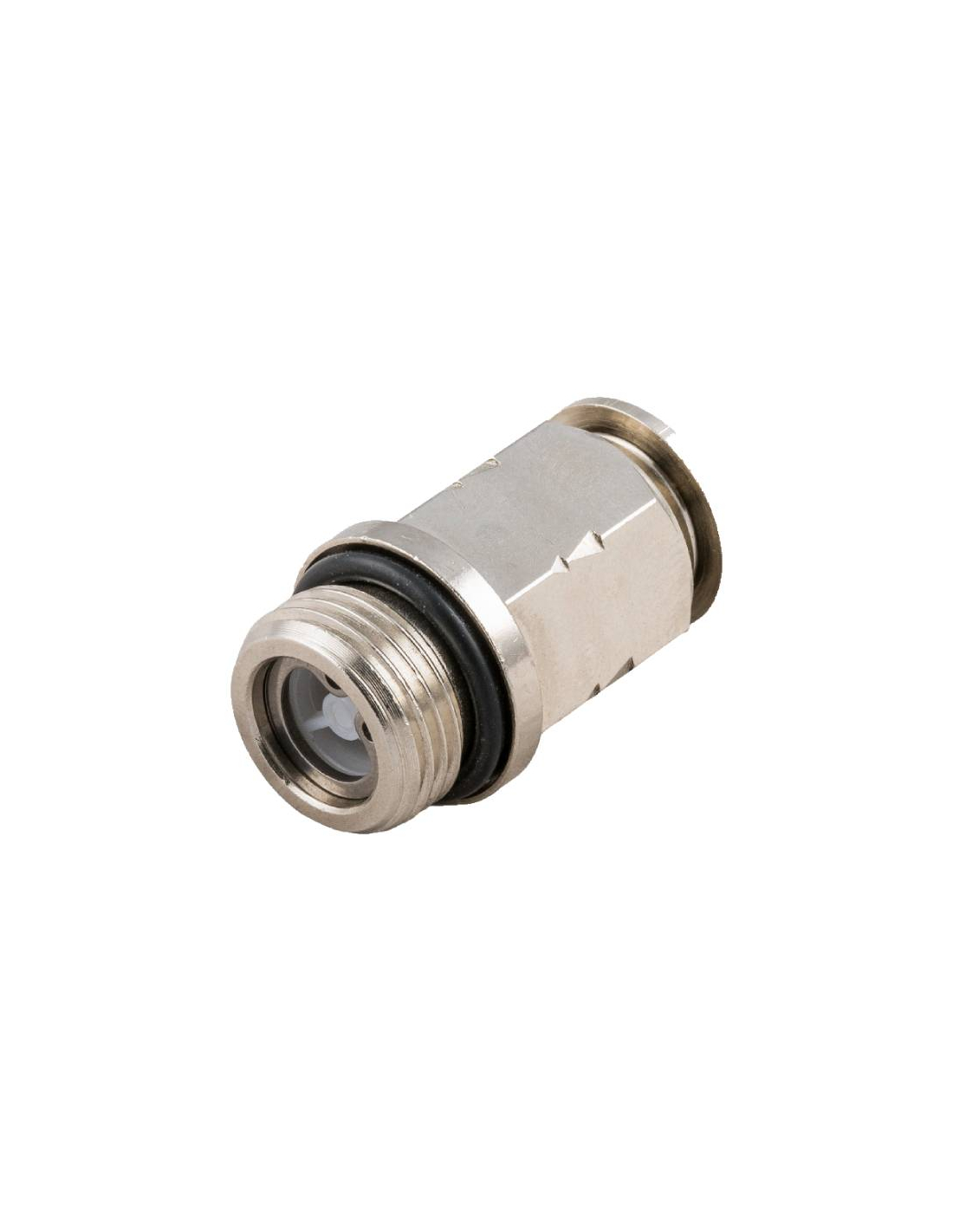

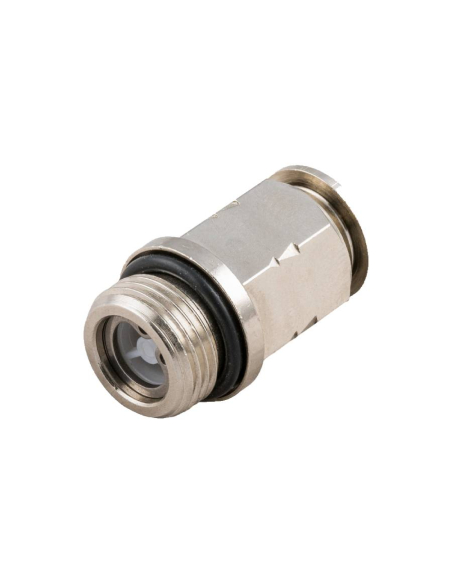

non-return valve with connection for 4 mm diameter tube and M5 male thread, metal. It allows the passage of air only in one direction and prevents it in the opposite direction.

Series: Function
Reference: 57065 4 M5

Non-return valveaignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


non-return valve with connection for 4 mm diameter tube and M5 metal male thread. It allows the passage of air only in one direction (indicated by the date on the body) and prevents it in the opposite direction.

Actuated directly by air, it is used as a safety device, maintaining pressure in a part of the circuit, even when there is no pressure in the supply.

drawing 6062

Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 57065 4 M5
  • Diameter: Ø4mm tube
  • Male thread: M5
  • Fluid: Compressed air
  • Body material: Nickel-plated brass.
  • O-Ring: NBR
  • Maintenance spring: AISI 302 steel
  • Max pressure: 8 bar
  • Minimum pressure that guarantees closure: 2 bar
  • Indicative opening pressure: 0.2 bar
  • Temperature: -20 ºC + 80ºC.
  • Thread: Gas cylindrical ISO 228
  • Metric: ISO R/262

Dimensions:

57065DIMENSIONS
57065DIMENSION CHART

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
