Anti-return valve tube diameter 4 in polyamide

€6.34 Tax included

€5.24 tax excl.

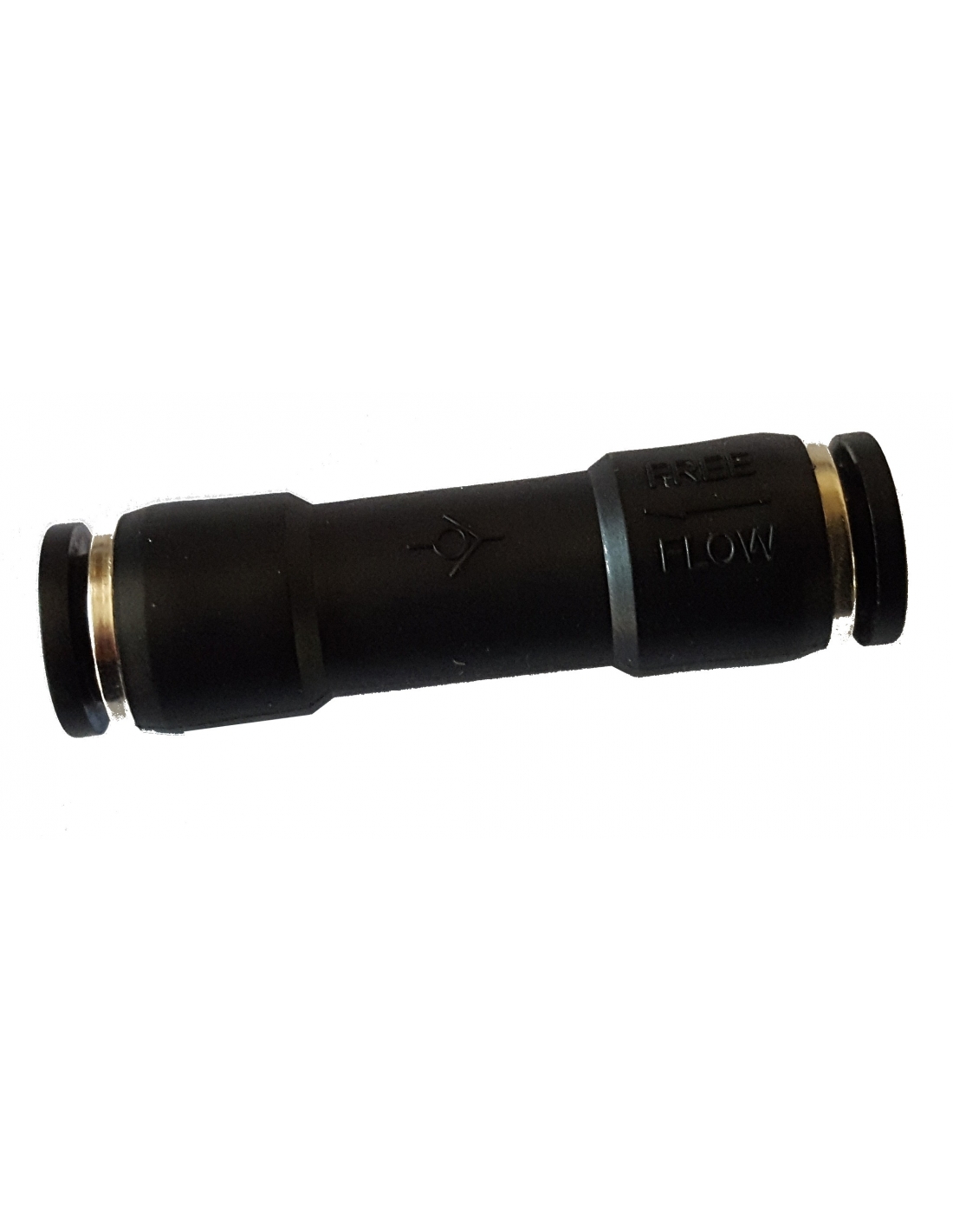

Anti-return valve with built-in fittings for tube Ø4, in polyamide (plastic). It allows the passage of the aíre onlyo in one of the two directions of travel.
Reference: VU. R.TT.04

Simbolo neumático válvula antirretorno


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Anti-return valve with built-in fittings for Ø4mm tube, made of polyamide, allows the passage of the air only in one direction, avoiding it in the other.

Technical data:

Manufacturer: Arion
Reference: VU. R.TT.04

Size: Tube Ø4mm.

Working pressure: 0.1 ≈ 10 bar. 0.01 ≈ 1 Mpa.

Working temperature: -20ºC ≈ 80ºC

Fluid: Aíre with or without lubrification.

Together: NBR.

Spring: Stainless steel.

Material for professional use, install respecting the regulations in force at the place of installation.
