Black 90 diameter mushroom-head push box - Giovenzana
Red 90 diameter screen push box
Black 90 diameter mushroom-head push box - Giovenzana
Red 90 diameter screen push box

Black 90 diameter mushroom-head push box - Giovenzana

€15.85 Tax included

€13.10 tax excl.

Large diameter mushroom-head pushbutton box,90mm, momentary action and in black color. Ideal for control applications where great accessibility is required. 1 no (NA).

Black mushroom-head axial drive (front), momentary action (non-interlocking)

Push button color: black

Reference: PG8M9W10

Esquema pulsador seta abierto Giovenzana

Logotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

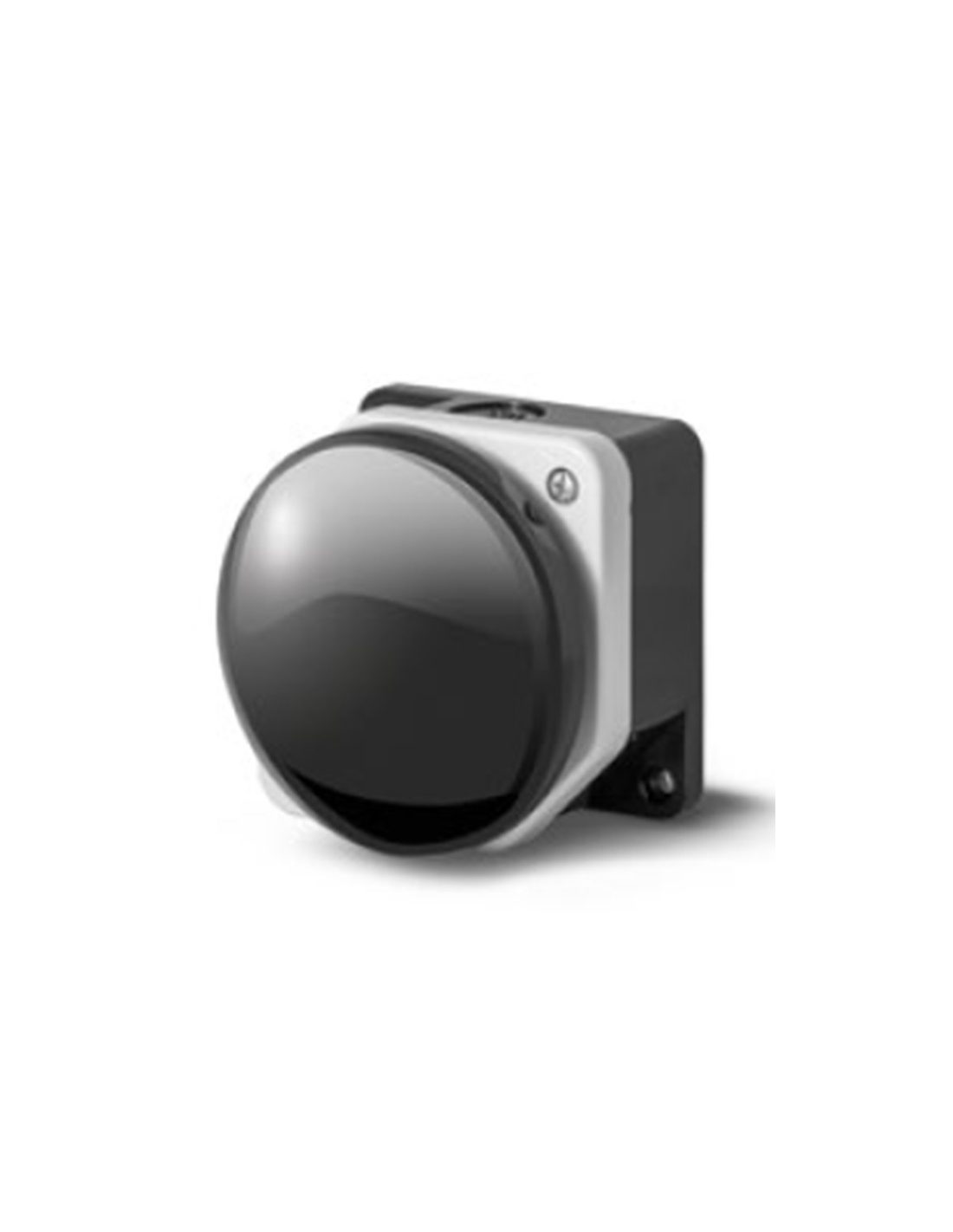

Box with large diameter pushbutton (90mm) in black and momentary action (without interlocking).

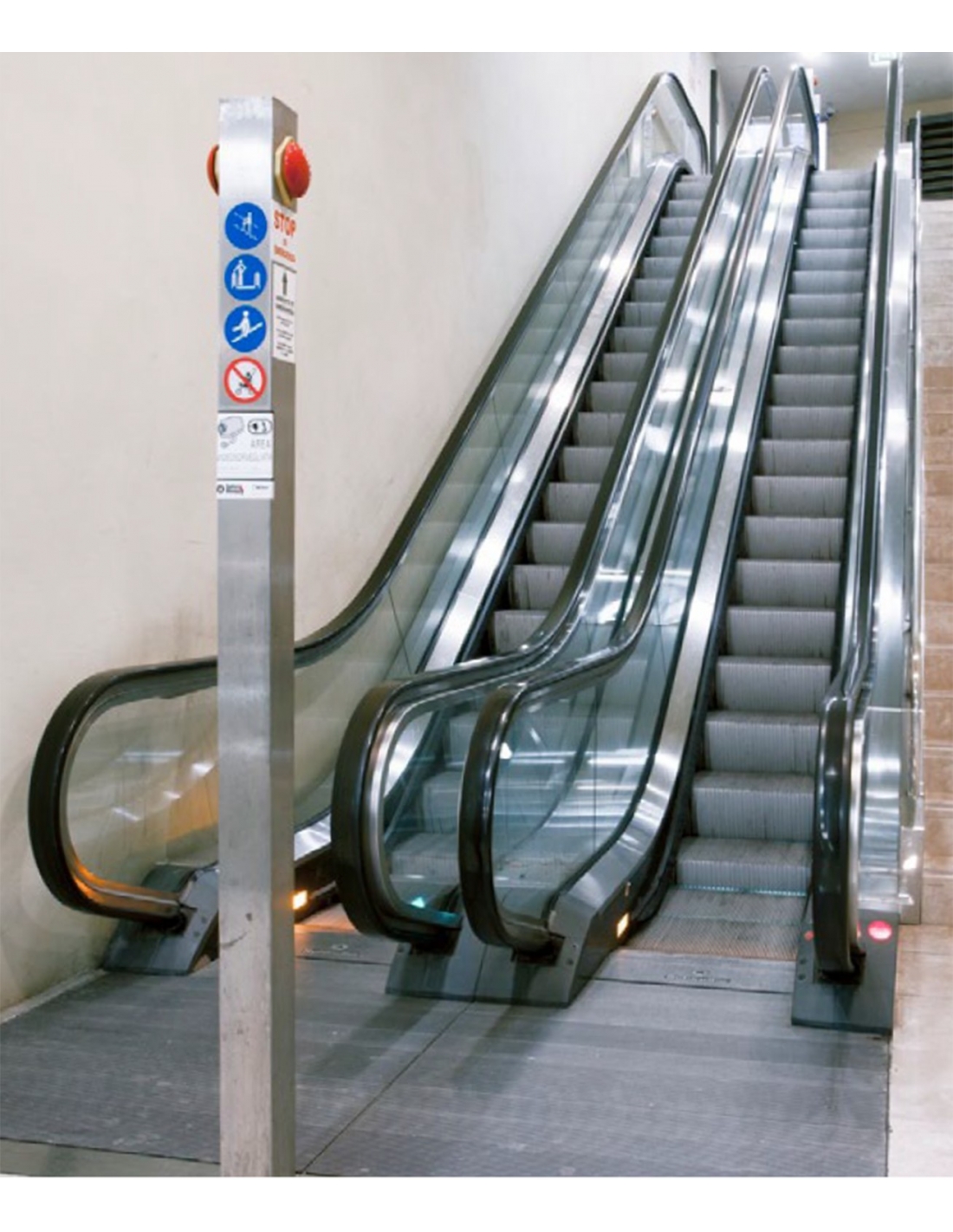

This push button box is specially designed for applications and environments where great accessibility is required. It complies with all the applicable regulations in machine installations, elevators and automatic stairs.

Manufactured high quality plastic material and supplied with a no (NA) and cable connection via quick spring terminals. 2 additional contacts can be added, these contacts can be both open (NA) and closed (NC). The total number of contacts installed in the box is 3 items.

The degree of protection is IP66 and it has 3 pre-die-cut holes of size Pg13.5/M20.

The supply includes:

  • button mushroom-head diameter 90mm.
  • box.
  • Normally open contact (NA).

To complement the contact included in the supply, you can add more blocks of contacts only of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable attachment: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.
  • 1 nc (NC), screw cable fixation: GIPL004001.
  • 1 no (NO), screw cable attachment: GIPL004002.

specifications:

  • Manufacturer: Giovenzana.
  • Reference: PG8M9W10.
  • Type of action: Axial mushroom-head button of momentary action.
  • colour:
    • Push button: mushroom-head black color.
    • Cover: Grey.
    • Box: Black.
  • Push button diameter: 90mm.
  • Box size: 90x90mm.
  • Degree of protection: EN60529 IP66.
  • maximum number of contacts: 3 items.
  • Type of connection: Fast fastening by spring.
  • Cable inlet: 3 pre-die-cut holes Pg 13.5/M20.
  • Ambient temperature:
    • Employment: -25 to +70ºC.
    • Storage: -30 to +70ºC.
  • Climate resistance: IEC 68 2-3, 2-30.

Electrical characteristics:

  • Contact type: Normally open contact (NA).
  • Nominal insulation voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 16a.
    • 60Vca: 12A.
    • 110Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4A.
    • 500Vac: 3A.
    • 690Vac: 1A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 1.2A.
    • 60Vcc: 0.85A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0,25a.
  • Contact resistance:
  • Contact operation: Slow break double contact positive opening.
  • Drive force: 4N.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Identification of the terminals: EN50013.
  • Standard: IEC/EN60947-5-1.

dimensions:

Diagrama de tiempos contacto abierto Giovenzana

Dibujo conexionado terminales resorte giovenzana

Mount mode:

Dimensiones caja pulsador 90

seta-emergencia-escalera-pulsador

Note: Only contact blocks manufactured by Giovenzana can be used.

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
