€0.71 Tax included

€0.59 tax excl.

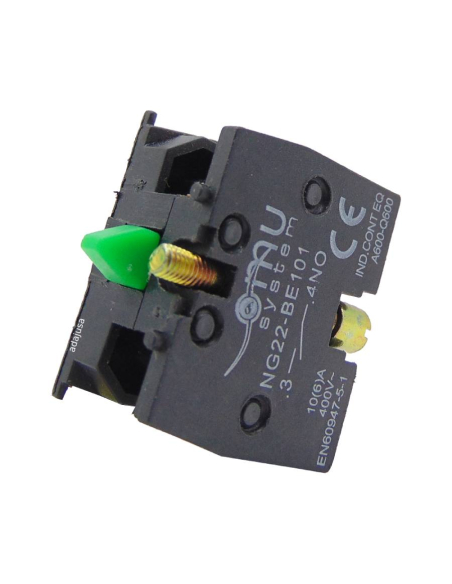

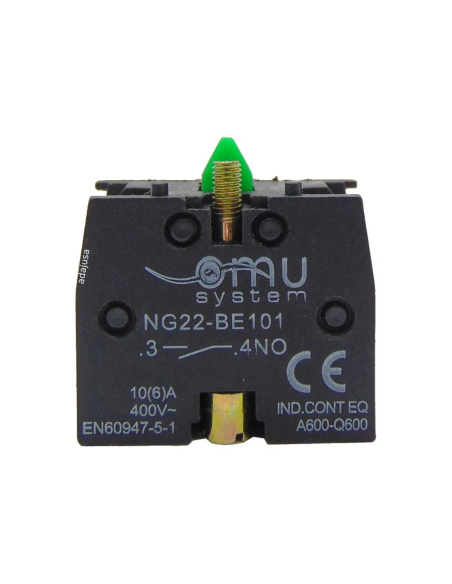

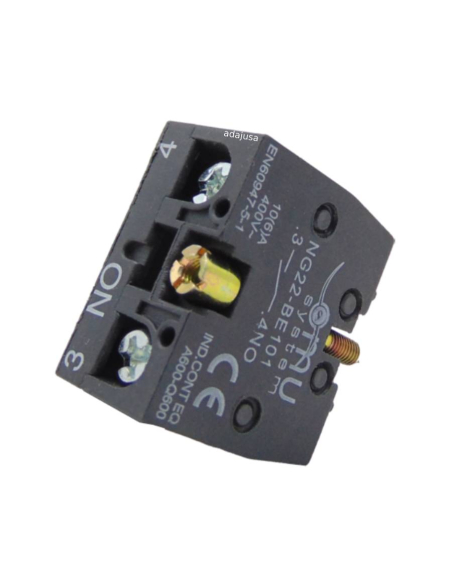

Open contact (NO) to be mounted on metal or plastic electric pushbuttons.


Reference: NG22-BE101

Open contact electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Open contact (NO) to mount on pushbuttons, both plastic or metal pushbuttons. They are valid for the XB2, HB2 and NG22 series of pushbuttons.

Characteristics:

  • Manufacturer/Supplier: Mixvill
  • Reference: NG22-BE101
  • Rated working current (Ith): 10A.
  • Working intensity: 50/60Hz (48V): 8A.
    • 50/60Hz (110V): 6A.
    • 50/60Hz (220-240V): 4.5A.
    • 50/60Hz (380-415V): 2.5A.
    • DC13 (24V): 2.5A.
    • DC13 (48V): 1.3A.
    • DC13 (110V): 0.6A.
    • DC13 (220-240V): 0.3A.
  • Limit voltage supported in 1m: 2.5 Kv.
  • Contact resistance: 50 mOhm.
  • Number of electrical maneuvers:
    • Mounted on common and emergency buttons: 1.000.000
    • Mounted on illuminated pushbuttons: 300.000.
    • Others: 100,000
  • Number of mechanical maneuvers:
    • Common and emergency buttons: 500,000
    • Others: 100,000
  • Protection grade: IP20

Material for professional use, install in compliance with the regulations in force at the installation site.
