Reduction M32-M25 polyamide black

€0.97 Tax included

€0.80 tax excl.

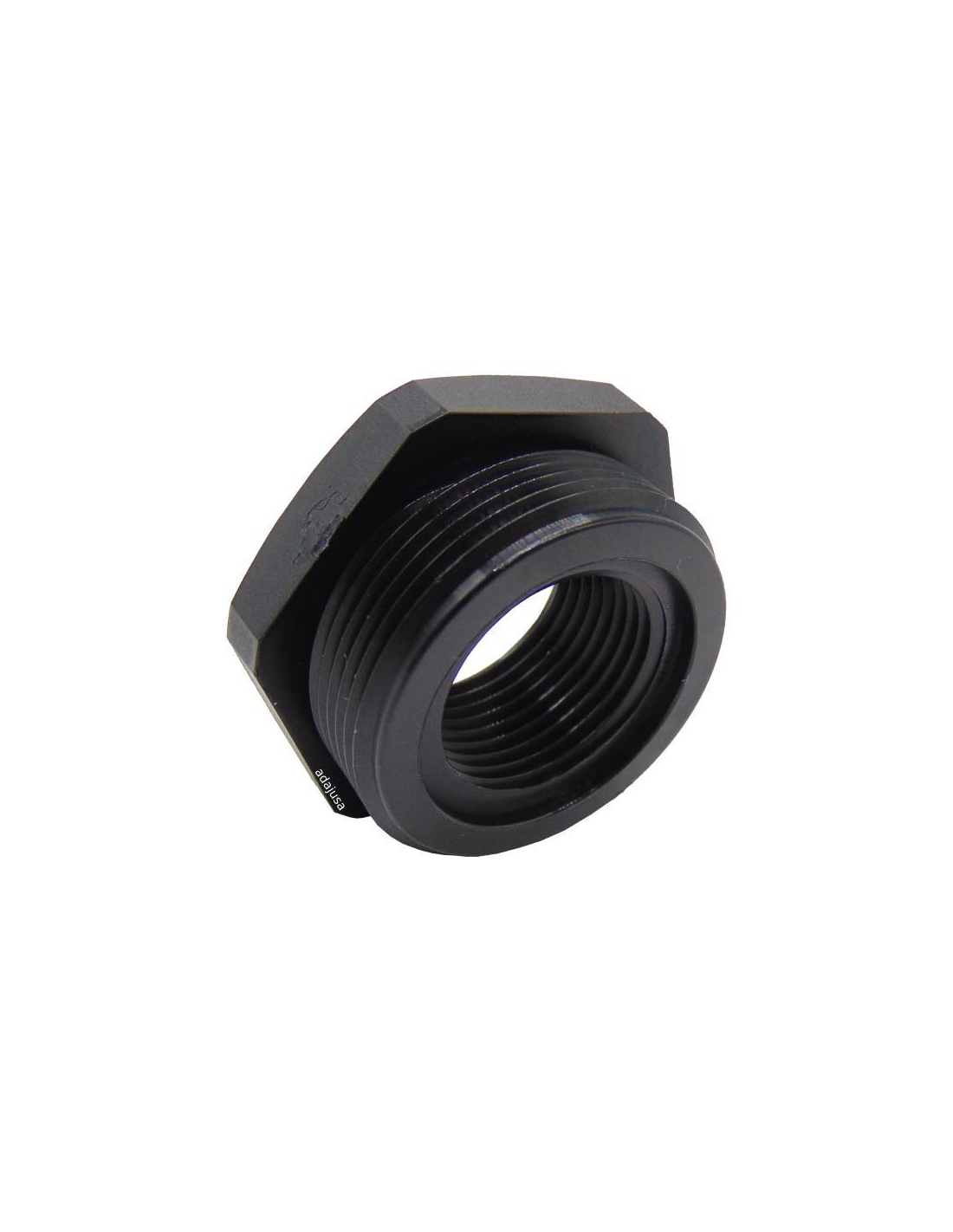

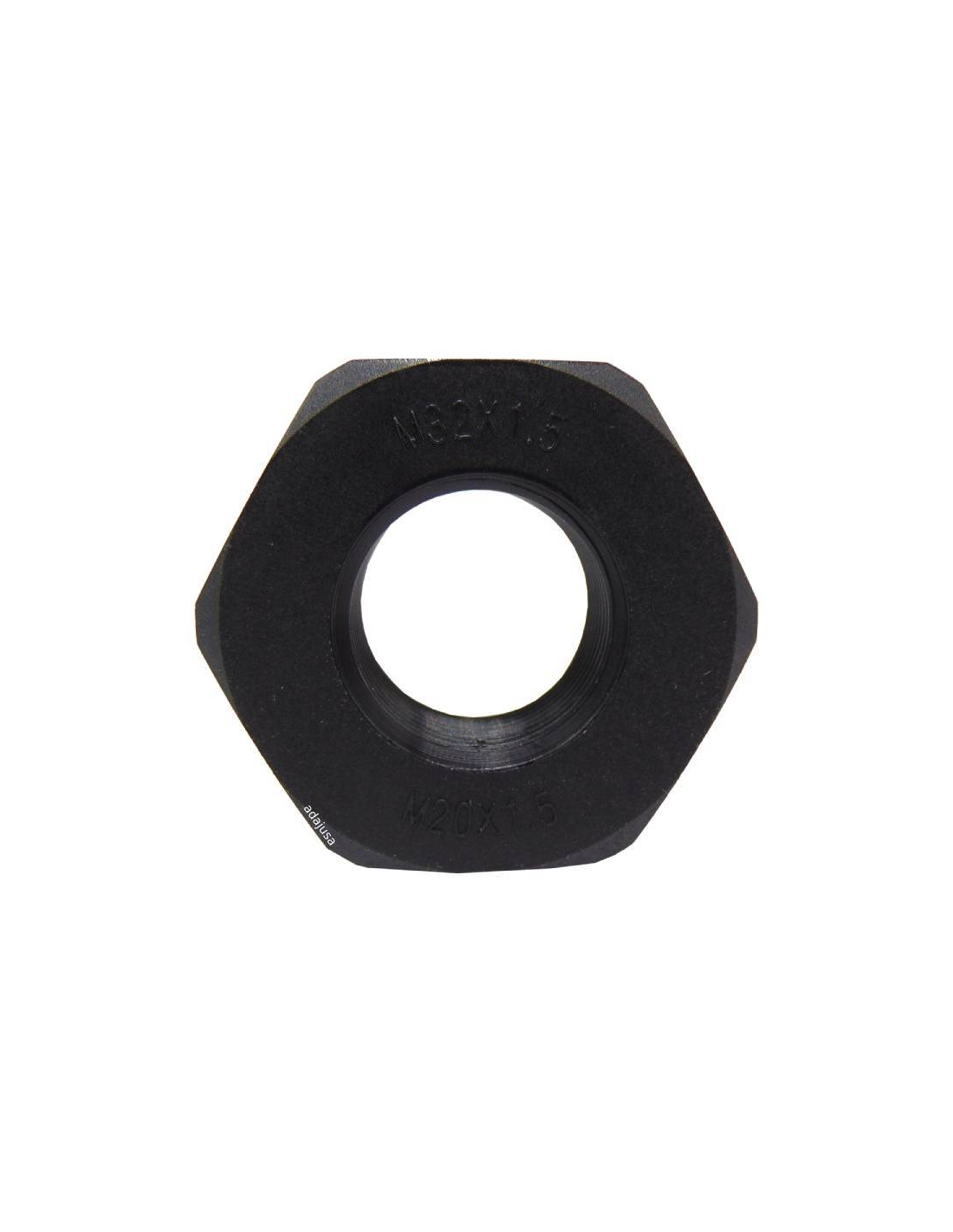

M32-M25 polyamide reduction with metric thread, black color

Allows the adaptation of M25 metric threaded cable glands to M32 metric bores or threads


Part No.: TMSZ-32/25


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns

Polyamide reduction for adapting M25 metric threaded cable glands to M32 metric bores or threads

Made of high quality black polyamide. Designed to withstand temperatures between -40oC and 85oC



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: TMSZ-32/25
  • Thread: Metric
  • Reduction: M32 - M25
  • Color: Black
  • Material: Polyamide (PA6.6)
  • Working temperature: -40ºC to 85ºC
  • Flame resistance according to UL94: V2
  • Indoor/outdoor metric standard: EN 60423


Dimensions:


D2: M32 x 1.5
D1: M25 x 1.5
L: 10 mm
W: 35.9 mm
