Compact pneumatic cylinder 20x30mm double acting rod INOX ISO 21287 - Mindman

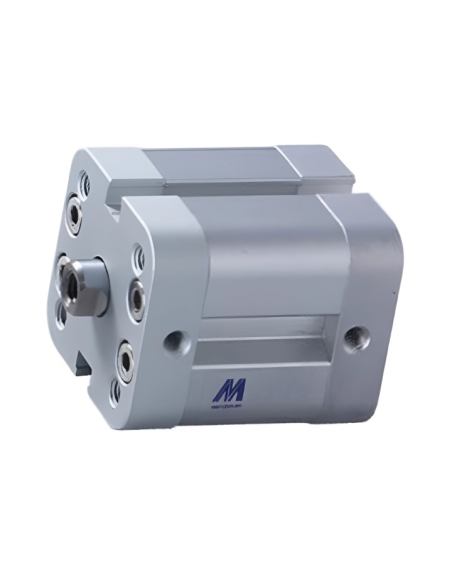

Compact pneumatic cylinder with a diameter of 20 mm and a stroke of 30 mm, double-acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 21287, with an aluminium body and a stainless steel rod. The rod has a female or male thread and NBR seals.

The cylinder body is made of extruded aluminium and has end caps made of the same material. On all sides of the cylinder body there are longitudinal slots for mounting magnetic detectors. It is available in a wide variety of versions and has a wide range of accessories for mounting.

Technical characteristics of the pneumatic cylinder:

• Manufacturer: Mindman
• Manufacturer reference: MCJI-xx-20-30I
• Diameter and stroke: Ø20x30 mm
• Type: Double acting pneumatic cylinder
• Fluid Type: Air with or without lubrication
• Manufacturing standard: ISO 21287
• Maximum working pressure: 10 bar (1 Mpa)
• Minimum operating pressure: 0.5 bar (0.05 Mpa)
• Type of seals: NBR
• Operating temperature: -5ºC to +60ºC
• Construction type: Chromed steel or stainless steel stem
• Air connection thread size: M5
• Stem diameter: 10mm
• Theoretical maximum force that the cylinder can develop when pushing: See attached table.
• Air consumption: See attached table.

The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.





Other races and executions can be supplied upon request.




Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
