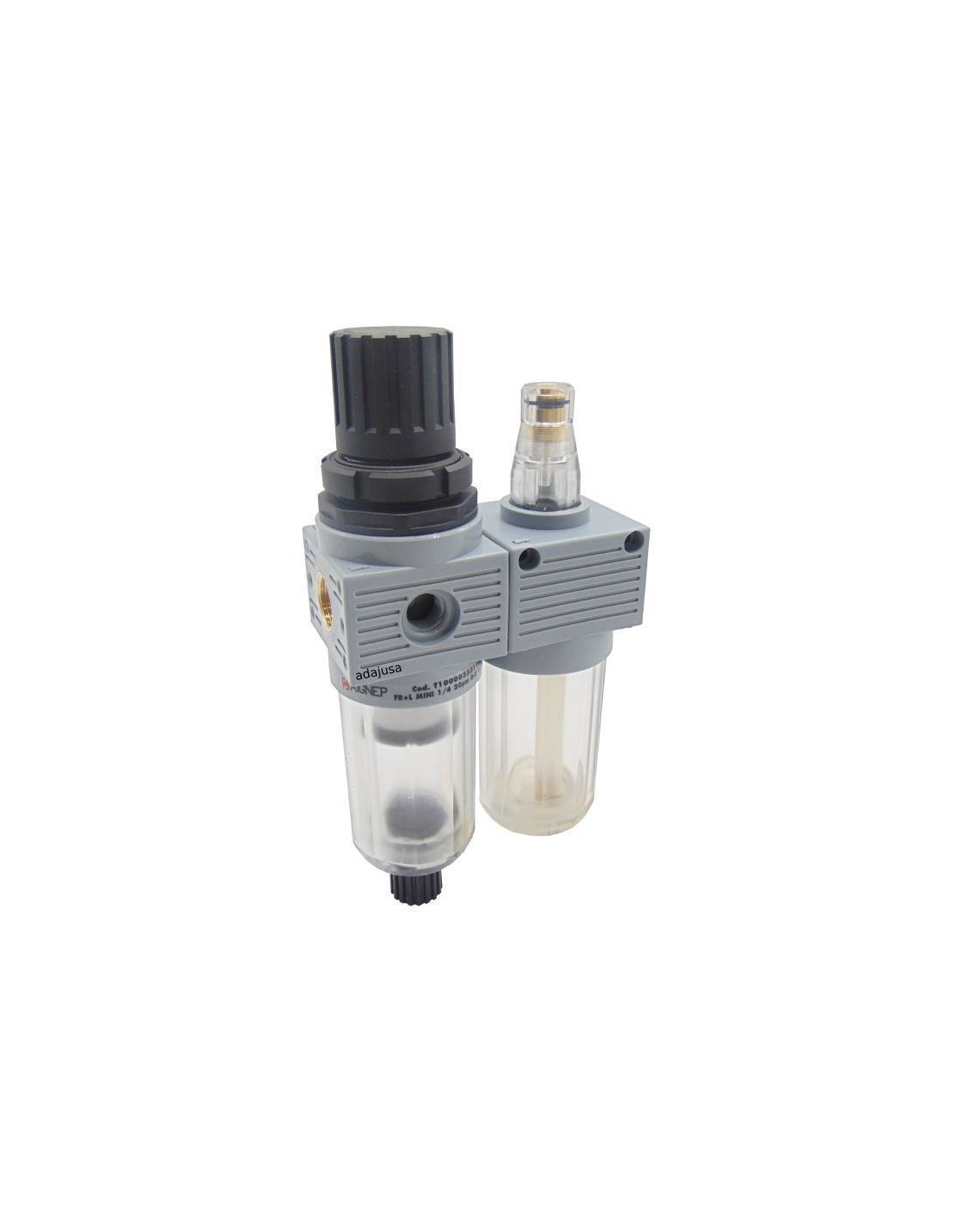

Pneumatic filtering group 1/4 regulation 0-8 bar semi-automatic purge FRL Mini series - Aignep

Pneumatic filtering group 1/4 regulation 0-8 bar semi-automatic purge FRL Mini series - Aignep

€52.56 Tax included

€43.44 tax excl.

Filtering group of 1/4, maintenance unit of 1/4 for pneumatic applications, semi-automatic purge, compact size in 2 modules (FR+L), and regulation range 0-8 kg/cm2. These filtering groups are manufactured in technopolymer and with metallic terminations. European manufacture.

Series: FRL Mini
Reference: T100003231100

Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 filtering group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size, in 2 modules (FR+L), European manufacture.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and coalescence filtering element. These filtering groups are made free of silicones.

with its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of purge is semi-automatic, discharging the condensate when the pressure approaches zero.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

Note: the pressure gauge is not included in the scope of supply, it must be ordered separately.

Characteristics of the filtering group:

  • Manufacturer: Aignep
  • Part number: T100003231100
  • Number of elements: 2 (FR+L)
  • Fluid: Pressurized air
  • Thread size: 1/4
  • Filtration degree: 20 μm (*)
  • Condensation drain manual-semi-automatic
  • External sight glass
  • Built-in overpressure drain valve
  • Lock on regulating knob included
  • Maximum pressure: 15 bar
  • Regulation from 0-8 bar (**)
  • Flow rate at 6 bar (ΔP1bar): 260 Nl/min
  • Thread size for pressure gauge: 1/8
  • Mounting screws: M3 (Not included)
  • Mounting form: Vertical
  • Working temperature: -10ºC to +50ºC
  • Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
  • Reference standard: PED 2014/68/EU
(*) On request, units can be supplied with a filtration degree of
  • 5 μm
  • 50 μm
(**)Other regulation ranges on request
  • 0 a 2 bar
  • 0 a 4 bar

Dimensiones grupo filtrante FR-L Mini Aignep Adajusa
t100 tabla

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
