Three-phase contactor 50A 24Vac auxiliary contact NO NC Series TR1D

Three-phase contactor 50A 24Vac auxiliary contact NO NC Series TR1D

€34.47 Tax included

€28.49 tax excl.

Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses, 3 poles with a current capacity of 50A category AC3 or 80A category AC1, With 24Vac coil, the contactor is equipped with 2 auxiliary contacts, one open (NO) and one closed (NC).


Reference: TR1D5011B7

SCHEMANC

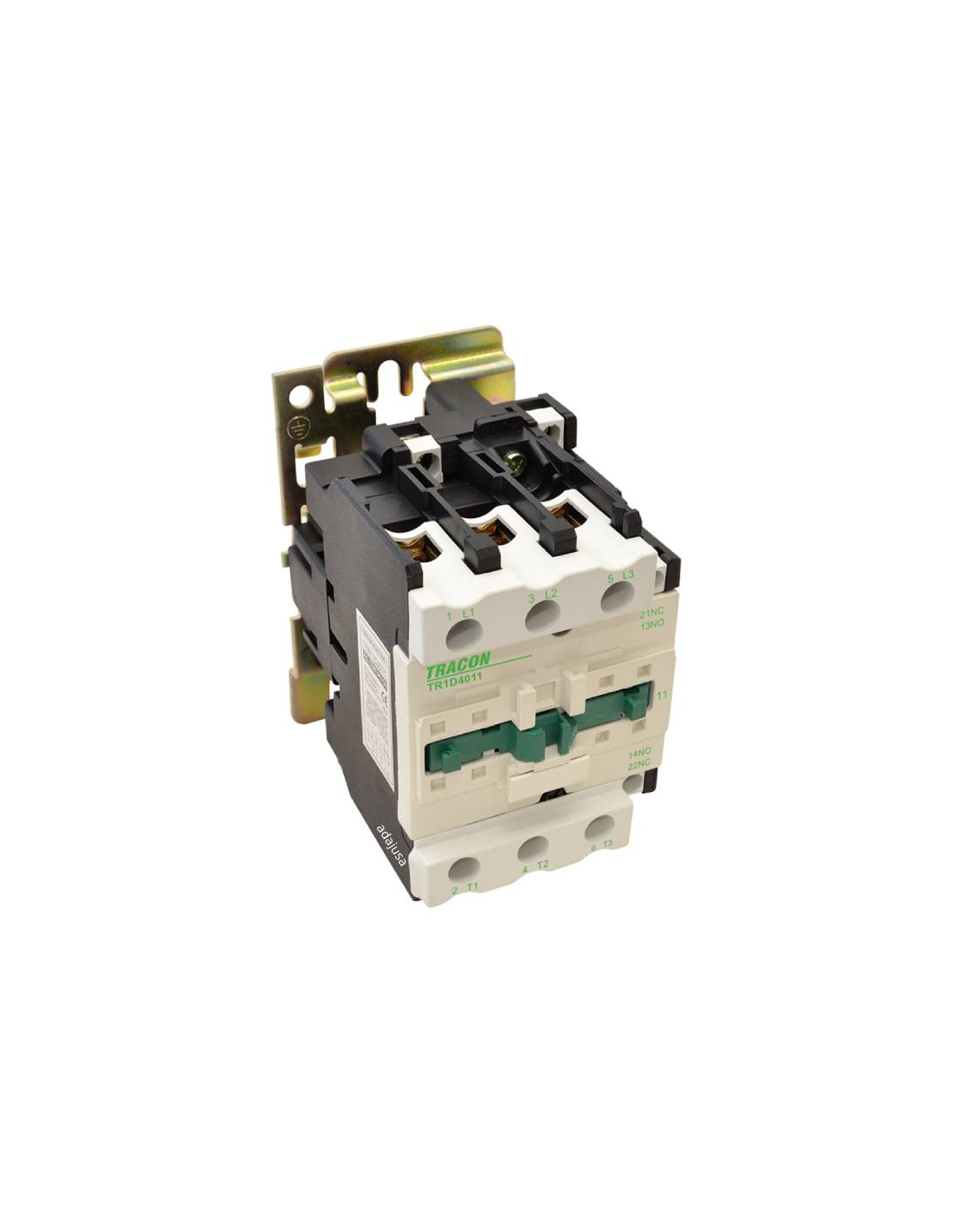

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase contactor (3 poles) of 50A in category AC3 or 80A in category AC1, the contactor is equipped with highly robust main contacts, manufactured with 85% silver, which makes it suitable for demanding applications for controlling electric motors , heating, lighting, ventilation and general use systems. The contactor is equipped with 2 auxiliary contacts, one open (NO) and one closed (NC). The contactor can be fixed using screws or by DIN rail.



Characteristics::

  • Manufacturer/Supplier: Tracon
  • Reference: TR1D5011B7
  • Number of poles: 3
  • Coil voltage: 24Vac 50/60Hz
  • Contactor rated current in AC1: 80A
  • Contactor rated current in AC3: 50A
  • Contactor rated current in AC4: 24A
  • Rated impulse voltage (Ui): 690 V
  • Contactor maximum power: 3~AC3 220/230V: 15kW
  • Contactor maximum power: 3~AC3 380/400V: 22kW
  • Maximum contactor power: 3~AC4 380/400: 7.5kW
  • Maximum power contactor 3~AC3 415V: 25kW
  • Contactor maximum power: 3~AC3 500V: 30kW
  • Contactor maximum power: 3~AC3 660/690V: 33kW
  • Contactor maximum power: 3~AC3 1000V: 30kW
  • Auxiliary Contact integrated into the contactor: 1 Open (NO) and 1 closed (NC).
  • Mechanical life expectancy: > 3.000.000 cycles
  • Electrical life expectancy: > 1.000.000 cycles
  • Driver section: 25mm 2
  • Working temperature range: -25ºC to +55ºC
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±30%



Dimensions:

TR1DNANCDIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.
