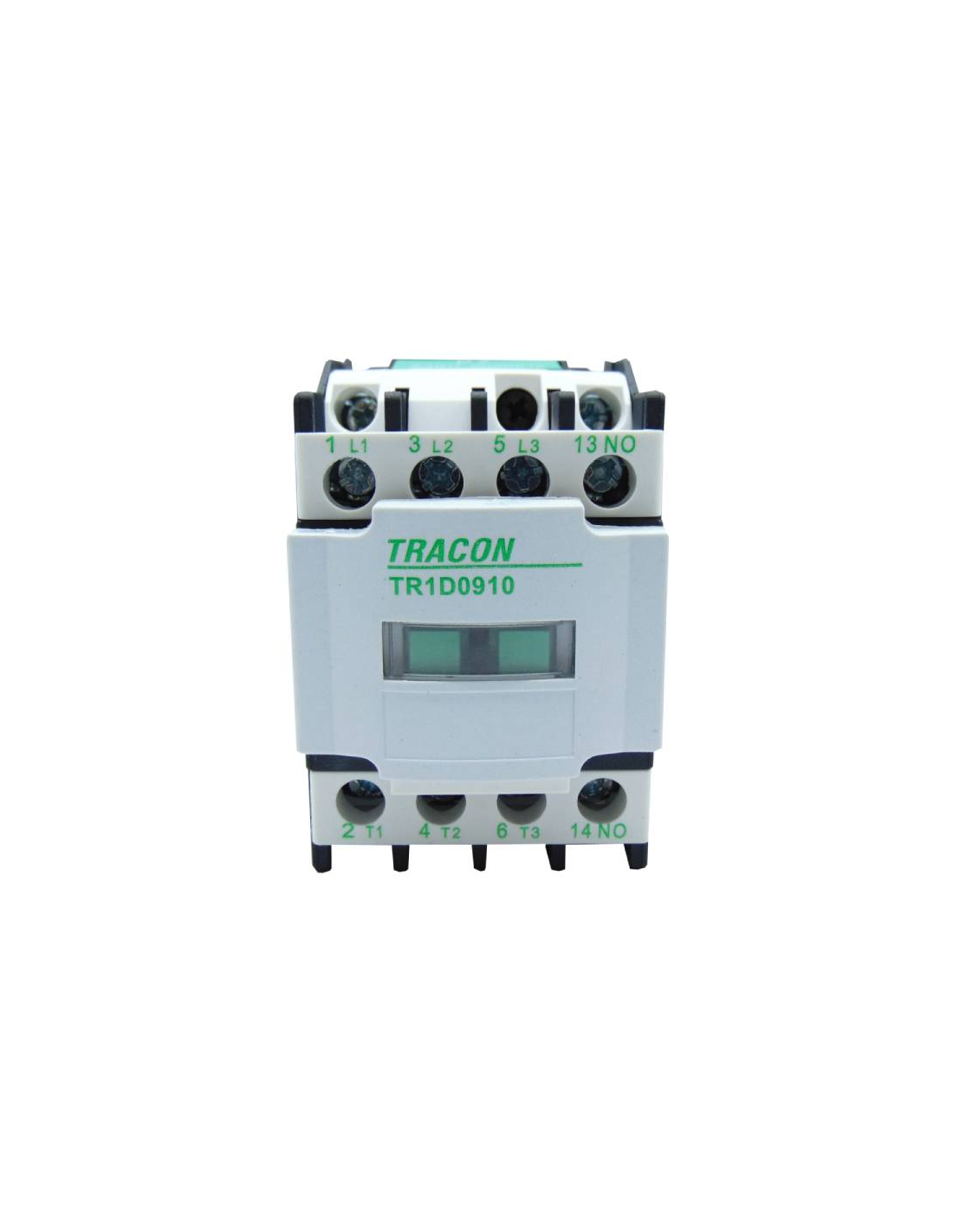

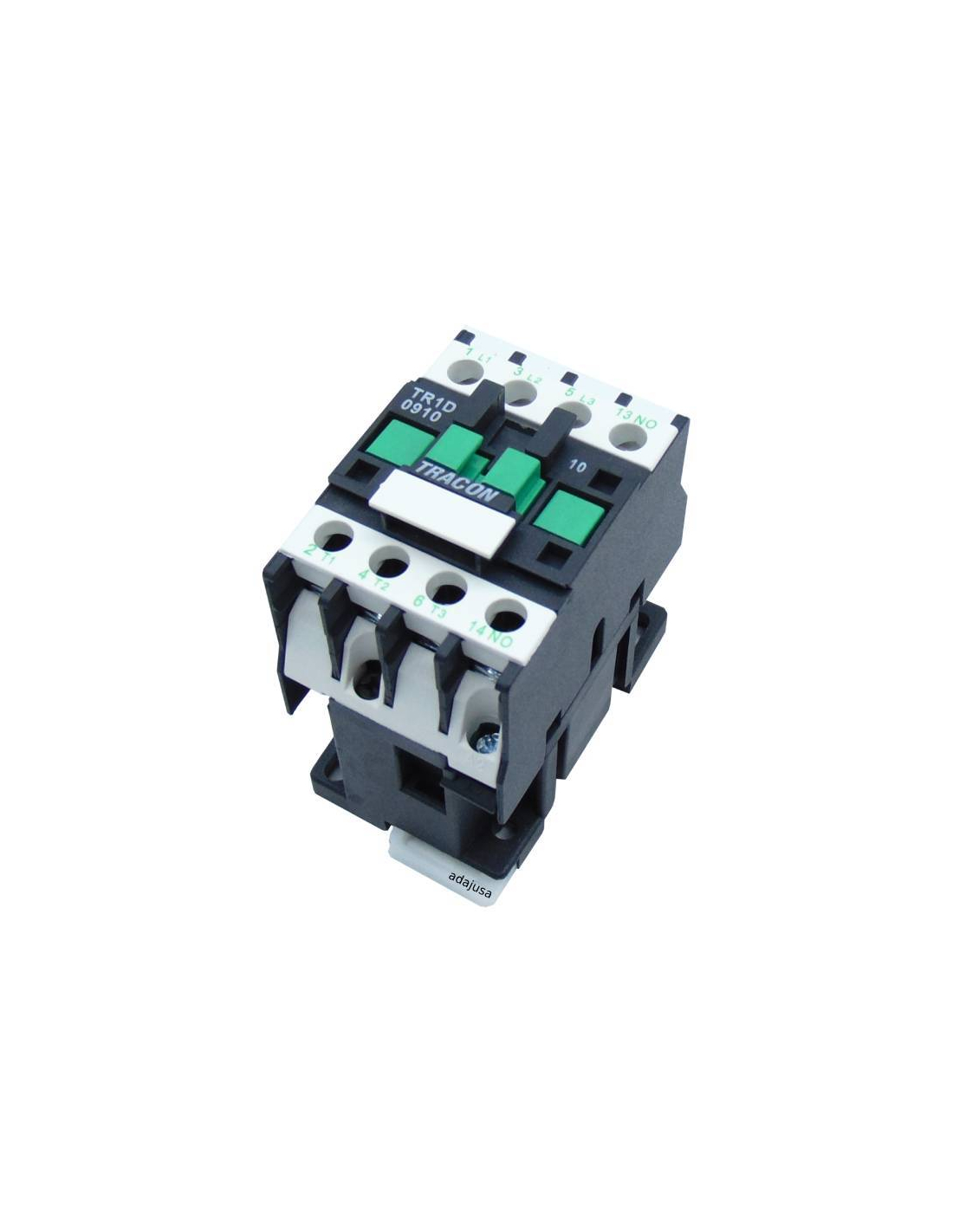

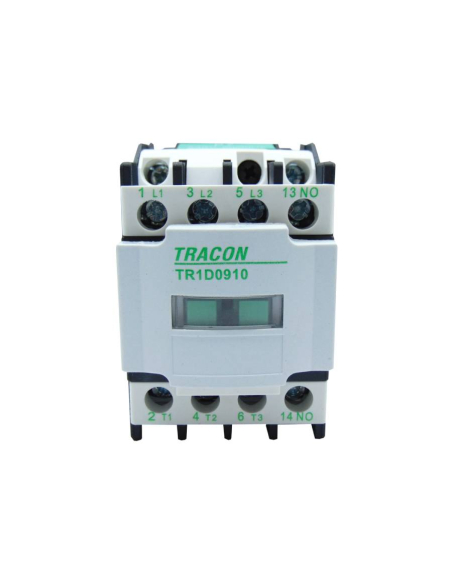

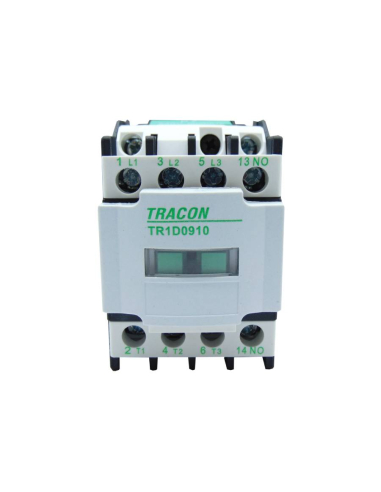

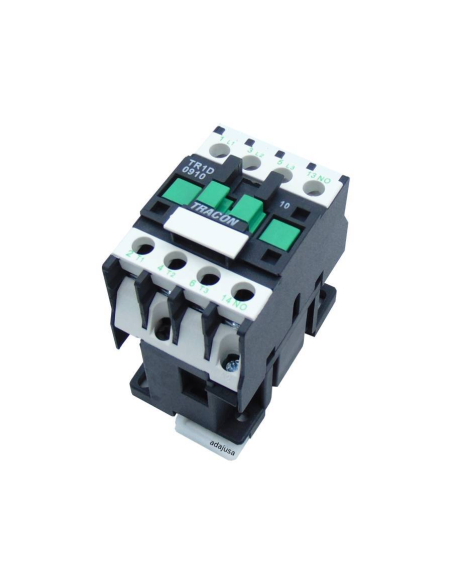

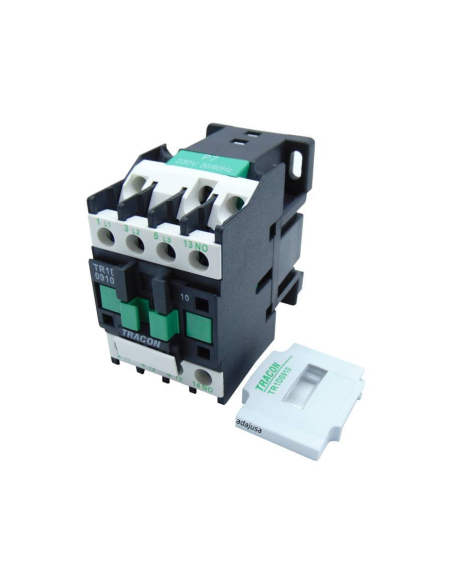

Three-phase contactor 32A 24Vac open auxiliary contact NA TR1D Series
Three-phase contactor 32A 24Vac open auxiliary contact NA TR1D Series
Three-phase contactor 32A 24Vac open auxiliary contact NA TR1D Series

Three-phase contactor 32A 24Vac open auxiliary contact NA TR1D Series

€19.52 Tax included

€16.13 tax excl.

Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses. 3-pole contactor with current capacity of 32A category AC3 or 50A category AC1, with 24Vac coil, the contactor is equipped with an open auxiliary contact (NO).


Reference: TR1D3210B7

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase contactor (3 poles) of 32A in category AC3 or 50A in category AC1. The contactor is equipped with highly robust main contacts, made of 85% silver, which makes it suitable for demanding applications for controlling electric motors, heating, lighting, ventilation and general use systems. The contactor is equipped with an open auxiliary contact (NO). The contactor can be fixed using screws or by DIN rail.





Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TR1D3210B7
  • Number of poles: 3
  • Coil voltage: 24Vac 50/60Hz
  • Contactor rated current in AC1: 50A
  • Contactor rated current in AC3: 32A
  • Contactor rated current in AC4: 12A
  • Rated impulse voltage (Ui): 690 V
  • Maximum contactor power: 3~AC3 220/230V: 7.5kW
  • Contactor maximum power: 3~AC3 380/400V: 15kW
  • Maximum contactor power: 3~AC4 380/400: 4.5kW
  • Contactor maximum power: 3~AC3 415V: 15kW
  • Maximum contactor power: 3~AC3 500V, 660/690V: 18.5kW
  • Auxiliary Contact integrated in the contactor: 1 Open (NO)
  • Mechanical life expectancy: > 3.000.000 cycles
  • Electrical life expectancy: > 1.000.000 cycles
  • Driver section: 10mm 2
  • Working temperature range: -25ºC to +55ºC
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±30%


Dimensions:
Dimensions of Adajusa TR1D contactors




Material for professional use, install in compliance with the regulations in force at the installation site.
