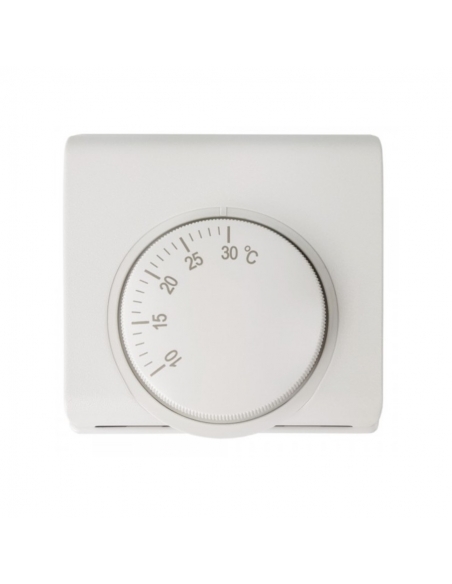

Mechanical ambient thermostat

€11.52 Tax included

€9.60 tax excl.

MT-2

Mechanical ambient thermostat for the control and regulation of temperature in rooms and homes.

Reference: MT-2

1 question about the product
Privacy
Shipments
Returns

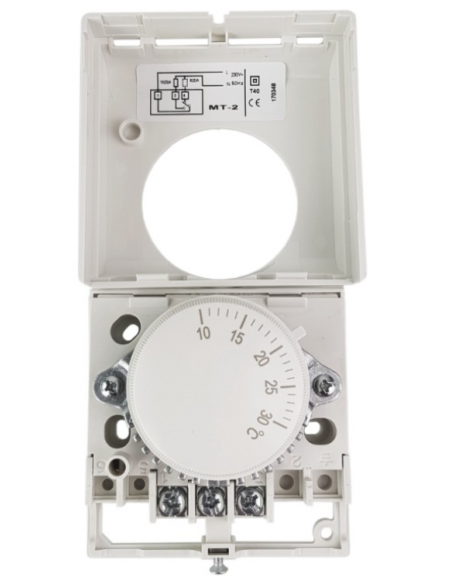

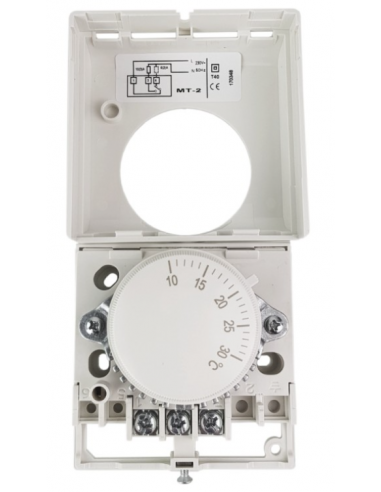

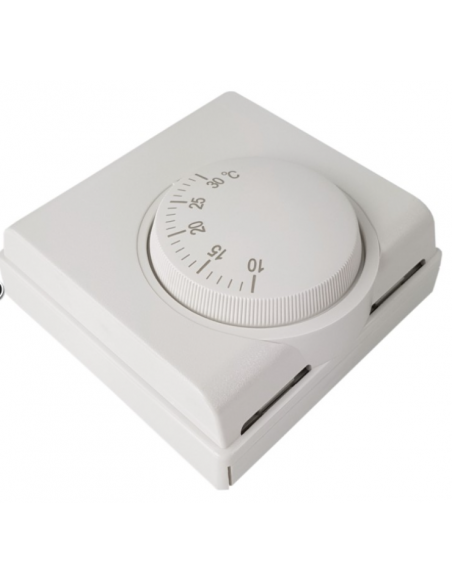

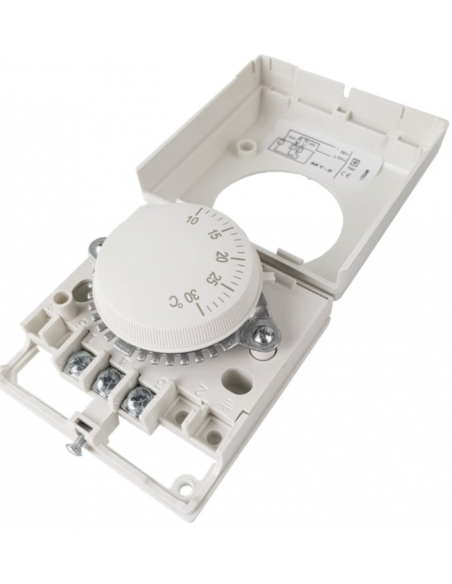

Simple room thermostat for temperature control and regulation in rooms and homes, surface mounting.

It is recommended to install it at an approximate height of 1.5 meters, in a room of habitual use. It must not be directly exposed to drafts or direct heat sources. Easy installation.

The thermostat measures the temperature of the room and is able to turn the contact on or off depending on the measurement taken. If the room temperature is below the set temperature, the thermostat closes the NO contact between 1 and 4 and opens the NC contact between 1 and 3. If the temperature is higher than the set temperature, the thermostat opens the contact between 1 and 3 and closes the contact between 1 and 4.


Specifications:

  • Supplier/Manufacturer: Mixvil
  • Reference: MT-2
  • Manual adjustment with rotary selector
  • Simple and precise temperature control
  • Adjustment range: 10oC to 30oC
  • Adjustment interval: 1orC
  • Switching temperature difference: -2orC to +20orC
  • Supply voltage: 230 VAC, 50Hz / 10(3)A
  • Dimensions: 83x83x36 mm
  • Degree of protection: IP20
  • Sensor Type: Gas Filled Silicone

Connection diagram:

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
Material for professional use, install in compliance with current regulations at the place of installation.

Questions

Question
Este termostato tiene un contacto NC? es para arrancar un ventilador cuando pase de la temperatura marcada y pararlo cuando baje
Answer
Buenas tardes,

El el siguiente enlace puede ver el funcionamiento del termostato.

https://adajusa.es/es/reles-de-control-y-proteccion-termostatos-sondas-de-temperatura/13388-termostato-mecanico-de-ambiente-8445340133889.html

El termostato mide la temperatura de la sala y es capaz de encender o apagar el contacto en función de la medida tomada. Si la temperatura de la sala es inferior a la temperatura fijada, el termostato cierra el contacto NO entre 1 y 4 y abre el contacto NC entre 1 y 3. Si la temperatura es superior a la temperatura fijada, el termostato abre el contacto entre 1 y 3 y cierra el contacto entre 1 y 4 (vea el esquema en la ficha del producto).


Para la aplicación que menciona le iría mejor un termostato de este tipo

https://adajusa.es/es/1256-sistemas-de-ventilacion-para-armarios?page=2

Por favor compruebe si alguno de esos termostatos cumple con sus requisitos,


Un saludo

ADAJUSA


Manuel on 06/05/2023 14:06:57

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Compact analogue thermostat TF1M 1NC Gaestopas | ADAJUSA Compact analogue thermostat TF1M 1NC Gaestopas | ADAJUSA 2
Control and protection relays, thermostats, temperature probes

Compact analog thermostat closed contact

OMU System
TF1M
€7.14 (€5.95 tax excl.)
Compact analog thermostat with closed contact, DIN rail mounting (1 module width), suitable for temperature regulation inside electrical cabinets and similar. Temperature range 0º - 60ºC. Very compact size and simple installation.Reference: TF1M Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Control relay and protection TPM6-230/400 Toscano
Shipping time: 3 - 5 days
Electronic control relays

Control and protection relay TPM7-POOL for purification pump - Toscano

Toscano
TPM7-POOL
€171.11 (€142.59 tax excl.)
Electronic protection relay for pool purification pump with 14A output in single phase and up to 20A in single/three phase with use of external contactor. Module suitable for Toscano ECO-POOL control panels. Integrated electronic protection with automatic motor overload adjustment, external and manual start/stop control of the pump and lighting (control...
DTA4848R0 DELTA OMRON thermostat temperature controller | ADAJUSA | price DTA4848R0 DELTA OMRON thermostat temperature controller | ADAJUSA | price 2
Control and protection relays, thermostats, temperature probes

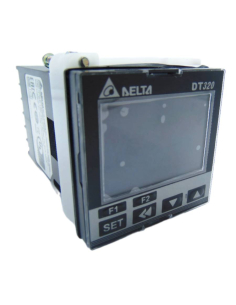

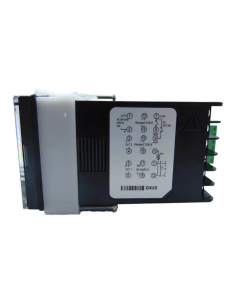

Digital Temperature Controller 48x48 - Delta
