Control and protection relay TPM7-POOL for Wi-Fi control purification pump - Toscano

Control and protection relay TPM7-POOL for Wi-Fi control purification pump - Toscano

€272.37 Tax included

€225.10 tax excl.

Electronic protection relay for pool purification pump with 14A output in single phase and up to 20A in single/three phase with use of external contactor. Module suitable for Toscano ECO-POOL control panels.

Integrated electronic protection with automatic motor overload adjustment, external control of spotlights and RGB scene change, external and manual control of pump start/stop, two time programs for filtration and one time program for lighting, frost protection ( via optional probe ).


It allows the possibility of manual configuration and control or through the APP available for Android and iOS, using an external Wifi control module, included in the supply.


Reference: TPM7-POOL + TPOOL-W

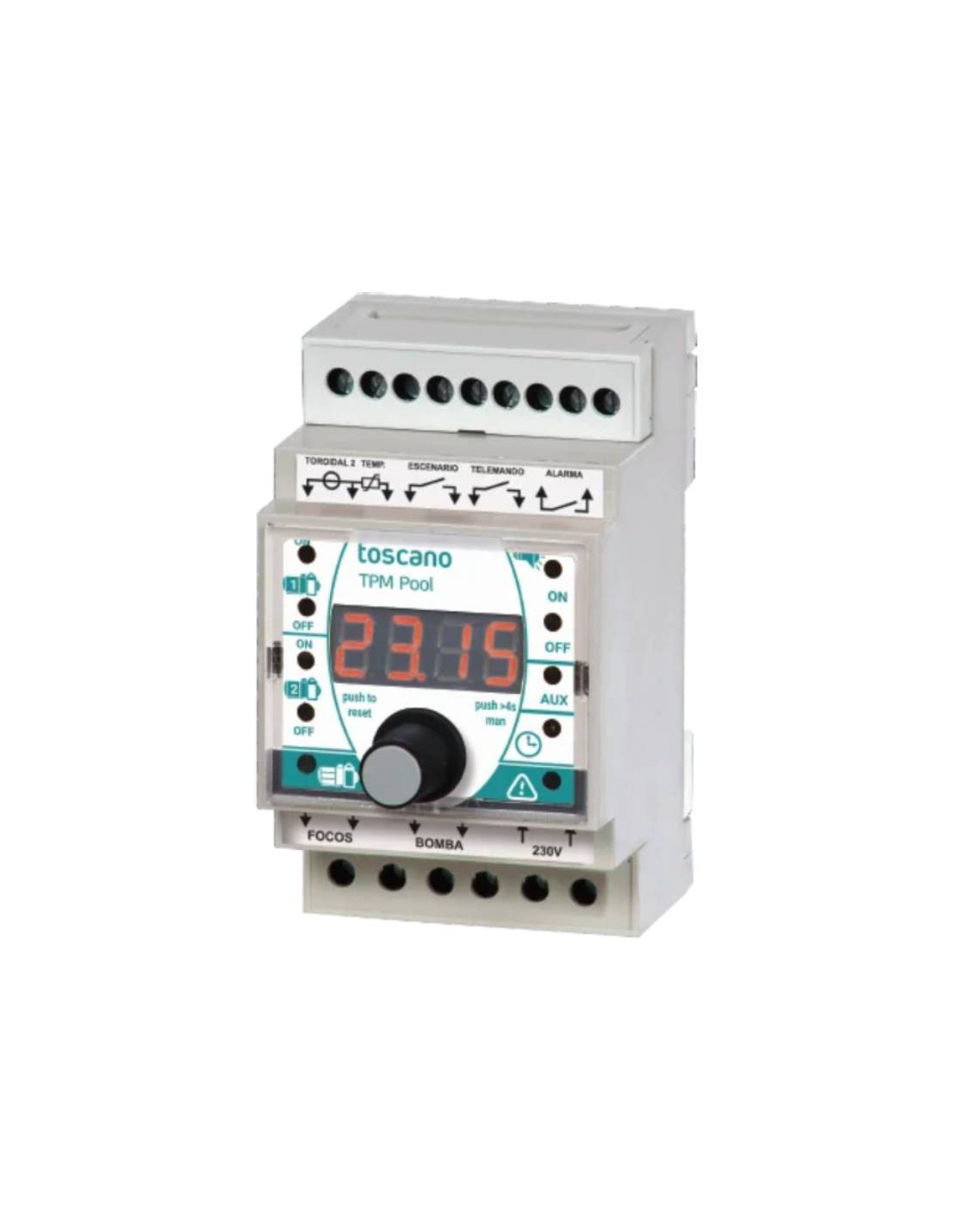

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!

Digital control and protection module for pool purification pumps, 230Vac, suitable for Toscano ECO-POOL panels. DIN rail mounting.


Simple and intuitive installation and use equipment. It has independent programs for filtration (two programs) and for lighting control (one program). It incorporates electrical protection with automatic adjustment of motor overload and anti-blocking, external control for turning on and off lights and RGB scene change, external control of pump start and stop, forced start and stop of the pump manually .

The TPM7-POOL allows protection against frost by incorporating an additional probe (not included in the supply) that allows the purifier to be started when the ambient temperature is very low. It has an auxiliary output with voltage-free contact 250V/5A max. for connecting alarm, low flow, cleaning robot, dosing pumps, electrolyzer, UV lamps, heat pump , etc.

It has a reset function to reset any failure of the purifier, and an automatic calibration test to protect the pump , allowing self-adjustment during the first start-up.


Allows the possibility of manual configuration or configuration through APP via Wi-Fi connection. APP available for both Android and iOS that allows quick and comfortable configuration and control. The Wifi module allows control of the purifier pump to carry out filtering programs and control its status, as well as the possibility of detecting if the pump has any problem or malfunction. It also allows the control and setting of schedules for turning the pool lights on and off and changing the RGB scene.

The Wifi Module is for DIN rail mounting and includes 2 meters of antenna cable.




Characteristics:

  • Manufacturer: Toscano
  • Reference: TPM7-POOL + TPOOL-W
  • Digital control and protection for swimming pools
  • Simple and intuitive operation
  • 4 digit LED display
  • LED display information: Current time, filtering programming, spotlight programming, auxiliary output status, alarms
  • pump output 14A in single phase (up to 20A in single/three phase with external contactor)
  • Control methods: Time programming, heat pump , anti-frost
  • Protections: Overload, anti- pump blockage
  • Overload protection 20% above calibration
  • reset function
  • Designed for modular boxes (3 modules)
  • Mounting on 35 mm DIN rail
  • Toscano ECO-POOL module


Technical specifications:
  • Supply voltage: 230V AC – 50/60 Hz
  • Protections: Overload, Anti- pump blocking
  • Overload protection: 20% above calibration
  • pump output: 14A in single phase (up to 20A in single/three phase with external contactor)
  • Spotlight output: 230V AC / 5A max
  • Auxiliary output: voltage-free contact 250V / 5A max
  • Minimum pump intensity: 0.5A
  • Operating temperature: -10ºC to +55ºC
  • TPM-POOL protection degree: IP20
  • TPM-POOL dimensions: 53x91x73 mm. 3 modules, compatible with modular boxes


Connected:








For more information, you can download the technical sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.
