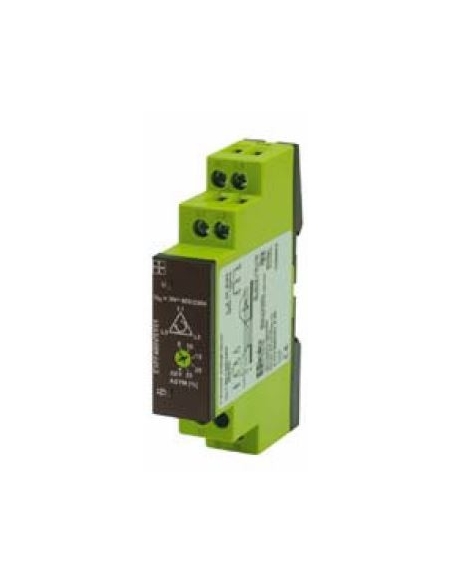

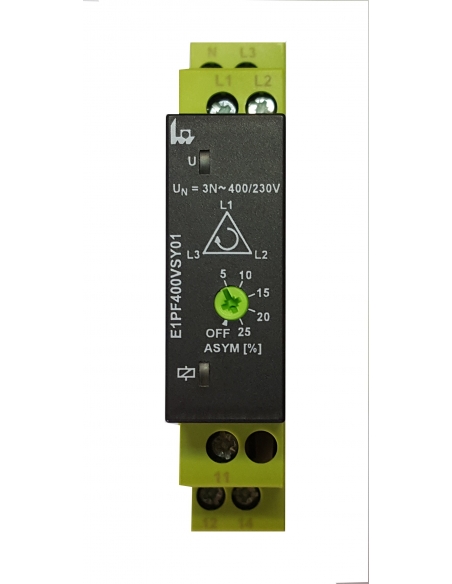

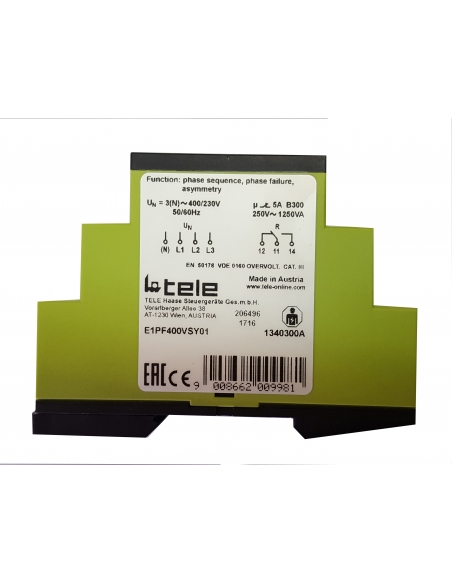

Phase sequence control relay

€132.97 Tax included

€109.89 tax excl.

Control relay on three-phase lines, this relay detects when all phases are connected in the correct sequence and the asymmetry is less than the set value, the output relay R switches on and the yellow LED lights up. As soon as the phase sequence changes, the output relay switches off and the yellow LED goes out.

Art. no.: E1PF400VSY01

Picture is representative for illustrative purposes, the delivered item will correspond to the specifications shown.

No queries yet, leave the first!


Electronic relay for control and monitoring of three-phase lines with an output contact. This relay allows to monitor the following parameters:

  • Phase sequence control. When all phases are connected in the correct sequence and the asymmetry is less than the set value, the output relay R switches on and the yellow LED lights up. As soon as there is a change in the phase sequence, the output relay switches off and the yellow LED goes out.

Diagrama 1 relé de control de fases adajusa

  • Phase failure monitoring. When a fault occurs in any of the three phases, the output relay R switches off and the yellow LED goes out.

Diagrama 2 relé de control de fase adajusa E1PF

  • Asymmetry control. When the asymmetry exceeds the set ASYM value, the output relay R switches off and the yellow LED goes out. The disconnection occurs even in the case of an asymmetry caused by the return voltage in a motor running on only two phases.

Diagrama 3 relé control de fase adajusa ENYA E1PF

Technical characteristics:

  • Manufacturer: TELE
  • Part No.: E1PF400VSY01
  • Supply voltage: = controlled voltage. L1-L2--L3 3x400V.
  • Admissible tolerance: ±30% Un.
  • Nominal consumption: 8VA.
  • Rated frequency: 48-63 Hz.
  • Resetting time: 500 ms.
  • De-energizing voltage: >20% of auxiliary voltage.
  • overvoltage category: III (according to IEC 60664-1).
  • Permissible impulse voltage: 4 kV.
  • Measuring quantities: 3x400V (48...63Hz).
  • Measuring input: L1-L2-L3.
  • Permissible tolerances: ±30% Un.
  • ASYM asymmetry threshold: OFF, 5...25%.
  • Base accuracy: ±5% of nominal value.
  • Setting accuracy ±5% of full scale.
  • Repetition accuracy at constant conditions: ≤2%.
  • Temperature influence: ≤ 0.05% per ºC.
  • Trigger time: 100 ms approx.
  • Green LED ON: Power supply (relay in operation).
  • Yellow LED ON/OFF: on/off.

Output circuit:

  • No. of contacts switched: 1 NAC.
  • Rated voltage: 250Vac.
  • Switching capacity: 5A/250Vac.
  • Fuse protection: 2A fast-acting.
  • Mechanical durability: 20x10⁶ operations.
  • Electrical durability at 1000VA resistive load: 2x10⁵ operations.
  • Switching frequency at 100VA, resistive load: max 30 man/min.
  • Switching frequency at 1000VA, resistive load: max 6 man/min.

CONNECTION

Conexionado relé de control E1PF ENYA adajusa

DIMENSIONS

Dimensiones rele de control E1PF ENYA adajusa

For further information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
