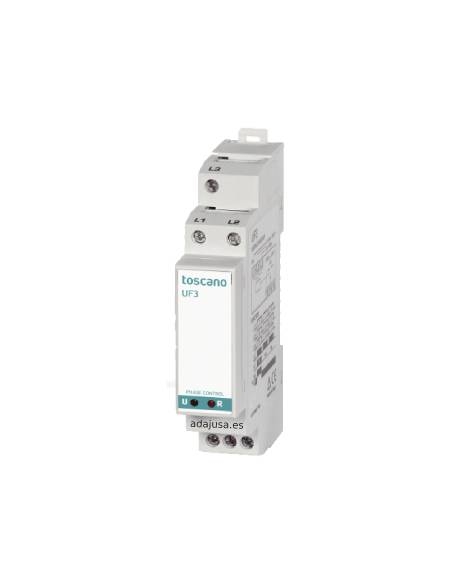

Relay sequence and phase reversal UF3-230/400 - Toscano

€94.11 Tax included

€77.78 tax excl.

Sequence relay and phase reversal, 200 power supply... 400VAC, single module 18 mm wide, DIN rail mounting

Reference: UF3-230/400




No queries yet, leave the first!


Sequence relay and phase reversal, 200 power supply... 400VAC, single module, DIN rail mount

Characteristics:

  • Manufacturer: Toscano
  • Reference: UF3-230/400
  • Self-extinguishing material
  • Compact size - 1 module - 17.5mm
  • Relay output with switched contact
  • Rail mounting DIN EN50022



Technical specifications:

  • Supply voltage: 3 x 200... 400 VAC
  • Frequency range: 47... 63 Hz
  • Power consumption: 1.9 W
  • Relay output: 8 A, 250 VAC / 24 VDC
  • Working temperature: -10ºC...+50ºC
  • Degree of protection: IP20
  • Dimensions: 98 x 17.5 x 64 mm
  • Weight: 60 g

Connection:




Operation:



To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
