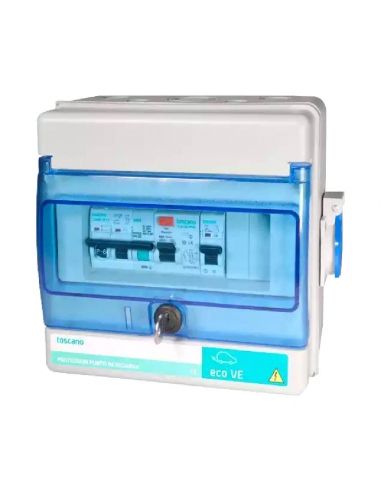

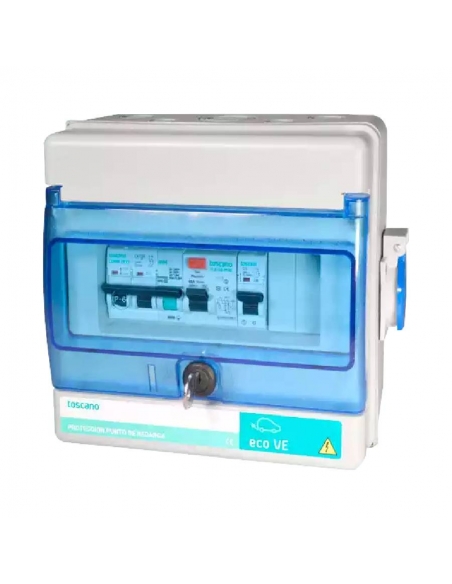

The ECO-VE-COMBI control and protection panels are designed to protect electric vehicle charging stations in accordance with the ITC-BT-52 directive.
The protection panel is equipped with protection against both permanent and transient surges in the electrical network.
The protection against transient surges protects against electrical discharges filtered through the network due to a thunderstorm and impacts caused by lightning or shunting of the transformers supplying the network. This protection shunts such discharge to the ground connection, preventing it from reaching the charging station. If the protection is triggered, red indicators will be displayed on the device and reconnection will be prevented. If this is the case, the transient protection cartridge must be replaced by firmly pulling it out and replacing it with a new one. The permanent protection protects against mains voltage surges above 275 V according to EN 50550, limiting the operation of the equipment and preventing voltage above this from reaching the charging station.
General characteristics
- Manufacturer: Toscano
- Part number: ECO-VE-COMBI-4P40T15-S
- Amperage: 4x40A
- Power rating: 27.71kW
- Nominal voltage: 230Vac (L/N) / 400Vac (L/L) 50/60Hz
- Vigivolt protection consumption: 0.3VA
- Maximum terminal cross-section: 25mm²
- Environmental ranges: -5ºC to +40ºC / 80º HR
- Degree of protection: IP65
- Dimensions (mm): 362x362x160

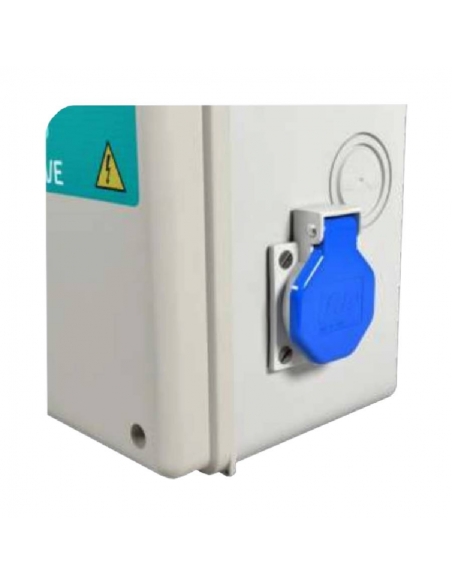

- Lock: Metal key lock
Permanent Characteristics
- Tripping voltage: >270Vac
- Overvoltage response time: according to norm EN 50550
IGA characteristics
- Rated current: 40A
- Tripping curve: C
- Breaking capacity: 10kA
Differential Characteristics
- Class A: Alternating and pulsed current
- Leakage current: 30mA
Transient Characteristics
- Maximum voltage Uc: 320VAC (L/N)
- Protection level Up (L/N) (N/PE):
- Maximum discharge current (8/20µs) Imax (L/N) (N/PE): 15kA
- Class: II
Standards:
IEC 61643-11 / EN 61643-11/ IEC 61439-123 / ITC-BT-52 / EN 50539-11:2013/A1:2014 / EN 60269-6:2011 / IEC 60364-7-712:2017 RLV / EN 60947 3:2009/A2:2015 / EN 61439-1:2012/ EN 61439-2:2012 / A11:2018
Connection
For further information you can download the data sheet by clicking on the "Attachments" tab.
Professional use material, install in compliance with the regulations in force at the place of installation
