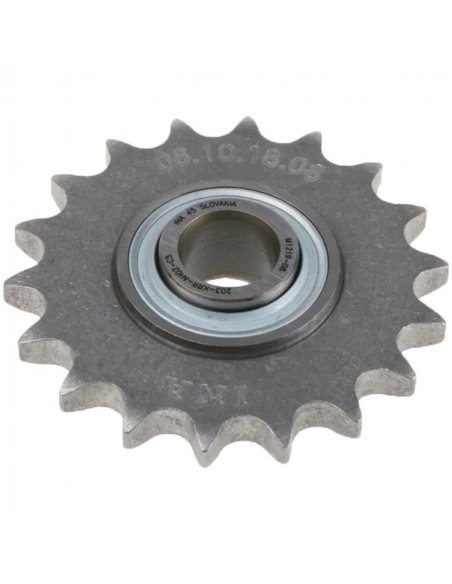

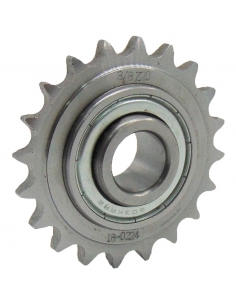

Tensioning wheel for chain diameter 20mm 18 teeth 08B C 10 - INA

€47.93 Tax included

€39.94 tax excl.

KSR200808

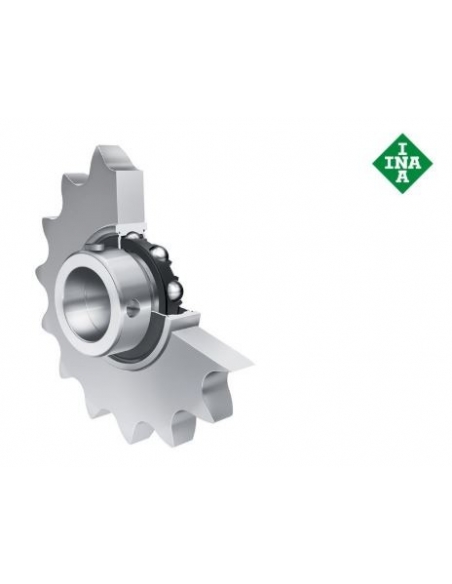

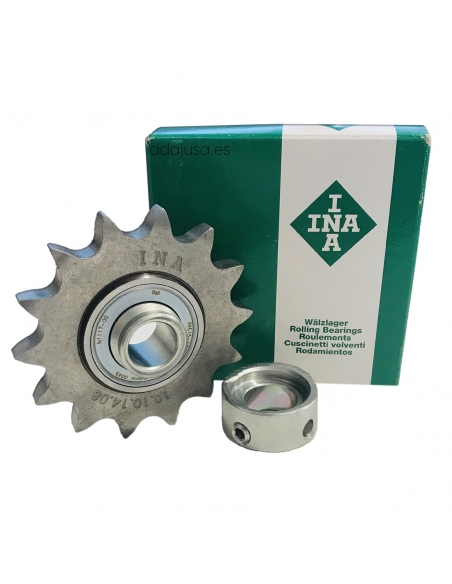

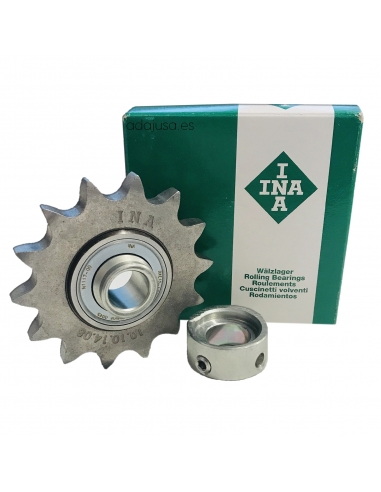

Tensioning wheel with ball bearing for chain in sintered steel (C 10). Diameter 20mm and 18 teeth. Valid for normal chains and roller chains.

SKU: KSR 20.B0.08.10.18.08




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.


No queries yet, leave the first!
Privacy
Shipments
Returns


The tensioning wheels or sprockets for INA chains are units of guidance and forwarding of chains, being valid for normal chains and rollers. They serve to compensate for the elongations of the chains, which occur throughout the service life by the operation itself, improve the smoothness of the ride and increase the performance of the system under high loads and speeds.

The units are supplied ready for assembly, are composed of wheel for the chain and rigid ball bearing already assembled. The tensioning wheels for chains are made of high-strength sintered steel. As the inner ring of the rigid ball bearing is extended on both sides, no additional separator rings are required.

The inner ring is fixed to the shaft by an eccentric tensioning ring. The drill in this series has a positive tolerance. In this way, unhanhanized shafts up to ISO h9 tolerance can be used under medium loads and speeds.

Manufacturer: INA

SLY: KSR 20.B0.08.10.18.08

Dimensiones rueda dentada perfil

Dimensiones rueda dentada frente

Dimensions:

  • Hub diameter (d): 20 mm Tolerance: +0.018 / -0
  • Tip diameter (Dk): 78.6 mm
  • Tensioner width (B1): 31 mm
  • Outer ring width (C): 14 mm
  • Tensioning thickness (C1): 7 mm.
  • Chamfer acho (C2): 1.1 mm.
  • Outer diameter (D): 47 mm.
  • Primitive diameter (D0): 73.13 mm.
  • Outer diameter of the tensioner (d3): 33 mm.
  • Width between the sides (W): 3 mm M6 x 0.75 mm
  • Dentate (p): 08B
  • Number of teeth (Z): 18
  • Weight: 0.26 Kg.
  • Hardness HB 50+/-10

Material for professional use, install in compliance with the regulations in force at the place of installation.


    Questions

    Be the first to ask a question about this product!

    Question about the product

    * Required fields
    (read)

    Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

    You might also like

    Simple roller chain ISO DIN 8187 ISB - ADAJUSA
    Roller chains European standard ISO DIN 8187

    Single step roller chain 12.7 1/2 08B-1 DIN 8187

    ISB-Cadenas
    CAD08B-1
    Starting from €6.48 (€5.40 tax excl.)
    Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250020  Step: 12.7- 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image for...
    View
    Single step roller chain 1/2 08B-1 DIN 8187 - Tsubaki - ADAJUSA
    Roller chains European standard ISO DIN 8187

    Single step roller chain 12.7 1/2 08B-1 DIN 8187 - Tsubaki

    Tsubaki
    CADE-RS08B1
    Starting from €155.46 (€25.91 tax excl.)
    Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 72710080001 Step: 12.7- 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image for...
    View
    Simple chain of anticorrosive rollers 12.7 1/2 08BBS-1 ISO 8187 Tsubaki | ADAJUSA | price
    2021-06-03
    Specialized roller chains

    Simple roller chain anti-corrosion step 12.7 1/2 NEPTUNE 08B-1 DIN 8187 - Tsubaki

    Tsubaki
    NEPTUNE08B1
    Starting from €355.20 (€59.20 tax excl.)
    Simple roller chain with anticorrosive treatment, according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 08B-1-NEPTUNE:TSU Pitch: 12.70 mm - 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging of 5...
    View
    Single roller chain without lubrication 1/2" LAMBDA 08B-1 DIN 8187 - Tsubaki - ADAJUSA
    2021-06-03
    Specialized roller chains

    Single roller chain without lubrication step 12.7 1/2 LAMBDA 08B-1 DIN 8187 - Tsubaki

    Tsubaki
    LAMBDA08B-1
    Starting from €530.70 (€88.45 tax excl.)
    Simple roller chain with the bushing impregnated with food grade lubricant, according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows to be installed in very limited spaces. Reference: CADE-RS 08B-1-LAMBDA:TSU Pitch: 12.70 mm - 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging...
    View
    Single roller chain anticorrosive (NEPTUNE) and non-lubrication (LAMBDA) 1/2" 08B-1 DIN 8187 - Tsubaki - ADAJUSA
    2021-06-03
    Specialized roller chains

    Simple roller chain anticorrosive and without lubrication step 12.7 1/2 08B-1 DIN 8187...

    Tsubaki
    LAM-NEP08B1
    Starting from €694.08 (€115.68 tax excl.)
    Simple roller chain with the bushing impregnated with food grade lubricant and anticorrosive treatment, according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows to be installed in very limited spaces. Reference: CADE-RS 08B-1-LAMBDA-NEP:TSU Pitch: 12.70 mm - 1/2" Roller diameter: 8.51 mmPrice per...
    View

    16 other products in the same category:

    Customers who bought this product also bought:

    Brackets and tensioners with bearings

    Oval bracket with shaft bearing 25mm UCFL205 - ISB

    ISB
    UCFL205-ISB
    €8.21 (€6.84 tax excl.)
    Cast oval housing with UCFL205 inserted bearing for 25mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects. Reference: UCFL205 Representative image for...
    Simple roller chain ISO DIN 8187 ISB - ADAJUSA
    Roller chains European standard ISO DIN 8187

    Single step roller chain 19.05 3/4 12B-1 DIN 8187

    ISB-Cadenas
    CAD12B-1
    Starting from €12.22 (€10.18 tax excl.)
    Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250030  Step: 19.05- 3/4" Roller diameter: 12.07 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters.  Representative image...
    View
    Simple roller chain ISO DIN 8187 ISB - ADAJUSA
    Roller chains European standard ISO DIN 8187

    Single step roller chain 12.7 1/2 08B-1 DIN 8187

    ISB-Cadenas
    CAD08B-1
    Starting from €6.48 (€5.40 tax excl.)
    Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250020  Step: 12.7- 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image for...
    View
    Conical bushing - taper lock size 3020
    Taper lock - Taper Bushings for pine nuts

    Conical bushing - taper lock size 3020

    Generico-TE
    92R-T3020
    €54.32 (€45.27 tax excl.)
    Conical bushing, size 3020. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 3020-0xx The bushings are supplied with the hole...
    Conical bushing - taper lock size 1610
    Taper lock - Taper Bushings for pine nuts

    Conical bushing - taper lock size 1610

    Generico-TE
    92R-T1610
    €15.46 (€12.88 tax excl.)
    Conical bushing, size 1610. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly. The bushings are supplied with the hole finished to the selected...
    Square bracket with shaft bearing 75mm UCF215 - SNRSNRBrackets and tensioners with bearings
    Brackets and tensioners with bearings

    Square bracket with shaft bearing 75mm UCF215 - SNR

    SNR
    UCF215-SNR
    €111.12 (€92.60 tax excl.)
    Square casting bracket with UCF215 inserted bearing for 75mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects. Manufacturer: SNR Reference: UCF215...

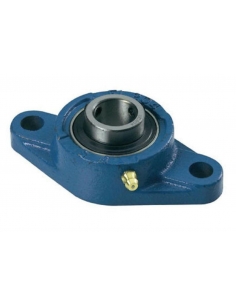

    UCFL209 self-aligning oval SNR shaft diameter 45mm | ADAJUSA
