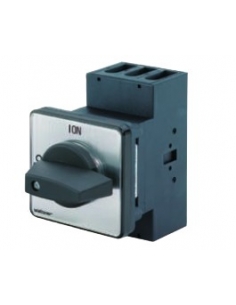

Triphasic switch 20A Size 48
Triphasic switch 20A Size 48

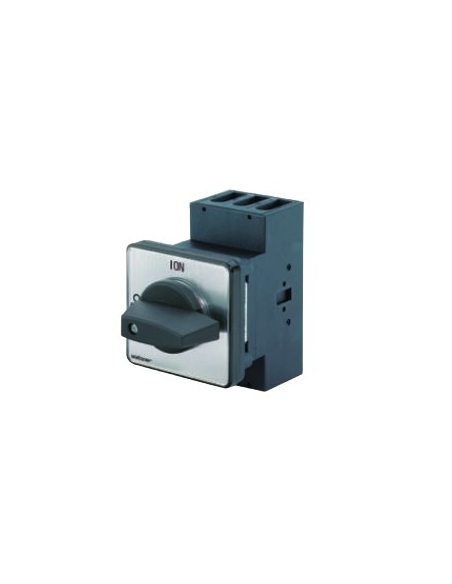

4-pole switch 32A Black handle - Salzer

€77.03 Tax included

€63.66 tax excl.

32A 4-pole switch size 48, black handle.

4 pole switch diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


4-pole, 32A four-pole Switch disconnector for inductive loads (electric motors) and general control. Fixing plate with black handle size 48 (36x36) for flush mounting.

Characteristics:

  • Manufacturer: Salzer .
  • Manufacturer reference: H226-41400-003M1
  • number of poles: 4.
  • Nominal voltage (Ue): 690V.
  • Nominal intensity (Ie) in AC21A: 32A.
  • Nominal interrupting capacity: 15 kA.
  • Number of maneuvers / hours: 50.
  • Mechanical durability: 100,000 maneuvers.
  • Mounting: Recessed.
  • Standards: IEC60947; IEC60204; UL508 CSA 22.2 No.14

Dimensiones_interruptor_normal_tamaño_48

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

4-pole disconnector switch 25a 48x48mm black - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnector switch 4-pole 25a SQ 48x48 series black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GISQ250448NB
€27.42 (€22.66 tax excl.)
four-poles disconnector switch 25a., rotary knob 90º 0-1 of 48x48mm, aluminum front plate and black lever, possibility of locking, made according to the strictest European standards that allow to meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main...
Disconnector switch 4 poles 32A full 67x67mm - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnector switch 4 poles 32A series SQ 67x67 yellow red lever - Giovenzana

Giovenzana Internacional B.V.
GISQ320467R
€28.39 (€23.46 tax excl.)
Disconnecting switch 4 poles (tetrapolar) 32A., rotary control 90º 0-1. front the yellow color and red lever, possibility of locking by padlock, made according to the strictest European standards, which allow, comply with the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start...
20A disconnector switch, 3 Adajusa poles
Disconnector switches 4-poles

Three-phase Switch disconnector 32A (4 poles) yellow-red

OMU System
MX-432Y
€17.75 (€14.67 tax excl.)
Rotary switch, 4-pole four-pole main disconnector 32A . 0-I, with yellow-red drive, lockable in position O. Front panel size 66x66 mm. Suitable for interruption, connection and switching of electrical circuits, as well as direct starting of motors and main switch in machines.Reference: MX-432Y Representative image for illustrative purposes, the item...
nterruptor disconnector sectioner series SQ 4 poles 25a full 67x67mm - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnector switch 4 poles 25a series SQ 67x67 grey black lever - Giovenzana

Giovenzana Internacional B.V.
GISQ250467N
€27.83 (€23.00 tax excl.)
Disconnector switch 4 poles (tetrapolar) 25a. ,rotary control 90º 0-1., 67x67mm, front the gray color and lever in black, possibility of locking by padlock, made according to the strictest European standards, which allow, meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct...
Disconnector switch 4 poles 32A full 67x67mm SE series - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnecting switch 4 poles 63A series SE 67x67 yellow red handle - Giovenzana

Giovenzana Internacional B.V.
GISE630467R
€51.43 (€42.50 tax excl.)
Disconnecting switch 4 poles (four-pole) 63A. yellow front knob and red handle, possibility of locking by padlock, made in accordance with the strictest European standards, which allow to comply with the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and...
Disconnector switch 4 poles 32A full 48x48mm red - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnector switch 4 poles series SQ 32A 48x48 red lever - Giovenzana

Giovenzana Internacional B.V.
GISQ320448R
€27.55 (€22.77 tax excl.)
Disconnecting switch 4 poles (tetrapolar) 32A., rotary control 90º 0-1. front the yellow color and lever in red, made according to the strictest European standards, which allow, meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in...
Full 4-pole disconnector switch 25a 67x67mm SE series - Giovenzana adajusa
  • Pack
Disconnector switches 4-poles

Disconnector switch 4 poles 25a series SE 67x67 grey black lever - Giovenzana

Giovenzana Internacional B.V.
GISE160467N
€23.84 (€19.70 tax excl.)
Disconnecting switch 4 poles (tetrapolar) 25a. ,rotary control 90º 0-1. front the gray color and lever in black, made according to the strictest European standards, which allow, meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines....
Disconnector switch 4-pole...
  • Pack
Disconnector switches 4-poles

Disconnector switch 4-pole 25a SQ 48x48 red lever - Giovenzana

Giovenzana Internacional B.V.
GISQ250448R
€26.95 (€22.27 tax excl.)
four-poles disconnector switch 25a., 90º 0-1 48x48mm rotary knob, yellow front plate and red lever, made to the strictest European standards to meet safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. reference: GISQ250448RRepresentative image for...
Full 4-pole disconnector switch 25a 67x67mm - Giovenzana
  • Pack
Disconnector switches 4-poles

Disconnector switch 4 poles 25a series SQ 67x67 yellow red lever - Giovenzana

Giovenzana Internacional B.V.
GISQ250467R
€27.78 (€22.96 tax excl.)
Disconnecting switch 4 poles (tetrapolar) 32A., rotary control 90º 0-1., 67x67mm, front yellow and lever in red, possibility of locking by padlock, made according to the strictest European standards, which allow, meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
Additional neutral pole for SQ32A Traspanel disconnector - Giovenzana Additional neutral pole for SQ32A Traspanel disconnector - Giovenzana 2
Accessories for disconnector switches

Additional neutral pole for SQ32A Traspanel disconnector - Giovenzana

Giovenzana Internacional B.V.
GISQ032ANIR
€5.66 (€4.68 tax excl.)
Additional open neutral pole, for 32A sectioner switch panel mounting. This additional pole allows the neutral conductor cut to be added to a 3-pole (three-phase) disconnector switch. The closure of the additional contact is anticipated to the principals, avoiding problems of neutral losses. Reference: SQ032ANIR

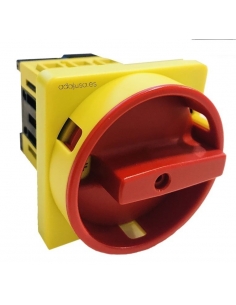

Full 4-pole disconnector switch 25a 67x67mm SE series - Giovenzana
