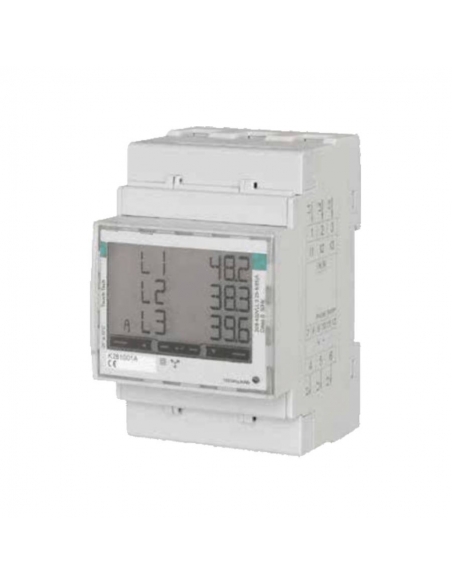

Three-phase electric power meter TEC-400D din-rail - Toscano

€234.43 Tax included

€193.74 tax excl.

Three-phase 400VAC digital energy meter, din-rail mount.

Reference: TEC-400D




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase 400Vac digital energy meter, 5(65)A, DIN rail.


Direct connection three-phase energy analyzer with Modbus, pulse or M-bus interface, 65 A. The analyzer measures active and reactive energy, combining mode (easy connection on) or separating the supplied and consumed energies.

It allows the measurement according to two rates using a digital input or a Modbus command. An optional output can be added to communicate the measurements: pulse output, RS485 Modbus port or M-Bus port. It measures a DIN module, with backlit LCD screen with touch zones to move through the pages and set the values of the parameters.


Characteristics:

  • Manufacturer: Toscano
  • Reference: TEC-400D
  • Reference: 10002202
  • Power supply: Autonomous (through the measured voltage)
  • Consumption: ≤ 1W, ≤ 10VA
  • Base current: 5A
  • Maximum current (continued): 65A
  • Minimum current: 0.25A
  • Ignition current: 0.02A
  • Operating voltage: 208-400 V ac (mains voltage)
  • Frequency: 45-65 Hz
  • Accuracy class:

Active energy: Class 1 (EN62053-21) / Class B (EN50470-3)
Reactive energy: Class 2 (EN62053-23)



Output Specifications:

  • Pulse output: 1000 pulses/kWh. Proportional to the measured active energy (EN62052-31)


LED Specifications:

  • Pulse ratio: 1000 pulses/kWh (EN50470-3, EN62052-11)
  • Duration: 90ms
  • Color: Red & Orange



To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
