Double electric safety pedal - Giovenzana
Double electric safety pedal - Giovenzana

Double electric safety pedal - Giovenzana

€99.84 Tax included

€82.51 tax excl.

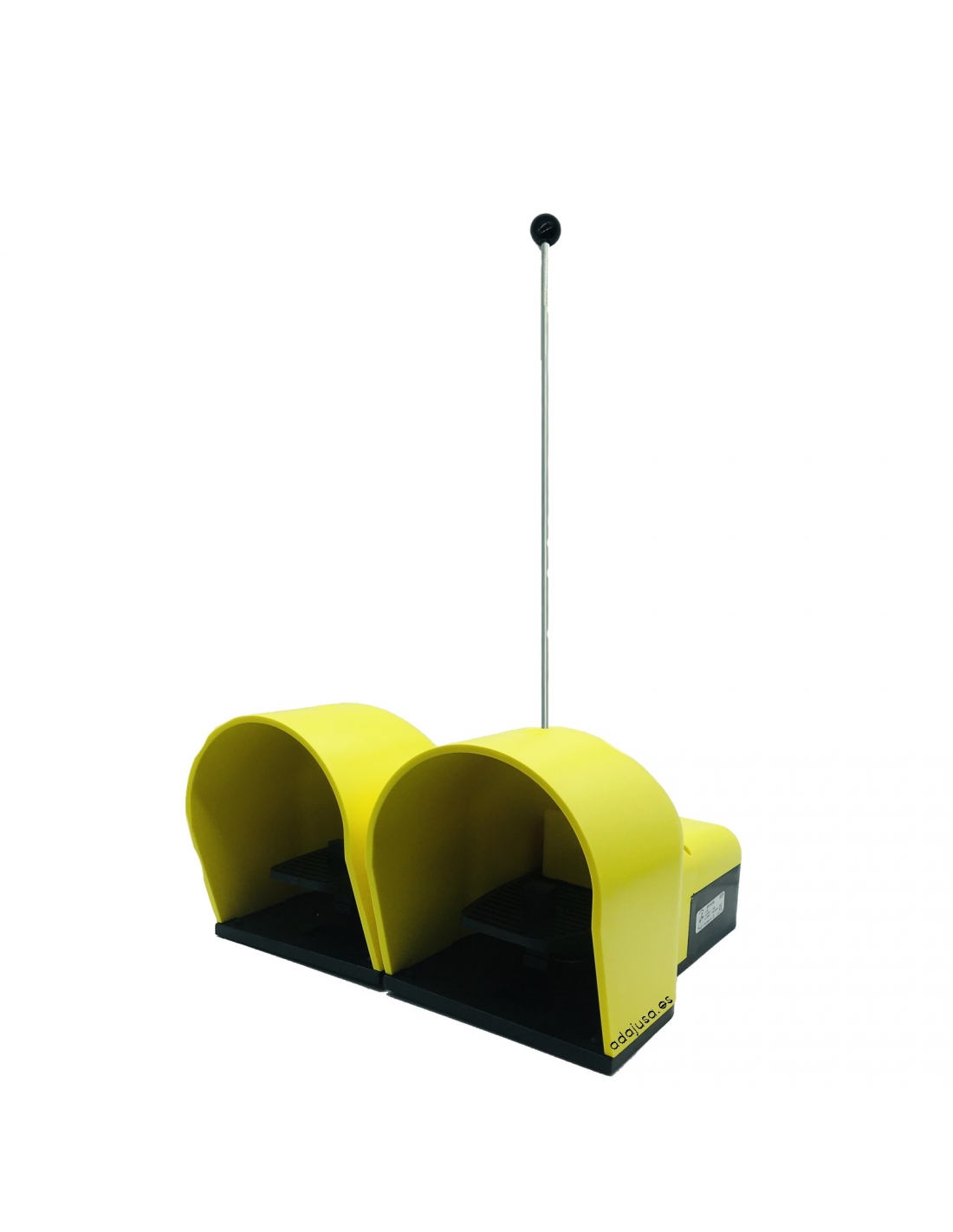

Double safety electric pedal with locking device in resting position, manufactured in thermoplastic with protective cover. 1 open NA contact per pedal.

Safety switches are used as machine and equipment control switches when the operator needs to have hands-free.

It is equipped with safety devices to prevent accidental drives.

Color: yellow

Ref: IP7018

Simbolo pulsador abierto

No queries yet, leave the first!


Double safety electric pedal, manufactured in high strength thermoplastic material with protective cover for industrial and general applications. Each pedal incorporates 1 slow-breaking open contact (NA).

Safety pedal switches are used as machine and equipment control switches when the operator needs to have hands-free to perform other functions.

The safety pedals have a protective cover against accidental actuation by falling objects or accidental pulsations. They have a mechanical locking device mounted to prevent pedal actuation if the pedal foot is not fully on the pedal drive. It also has rubber stops at the base to prevent slipping.

The degree of protection of the electric pedal is IP-65. The pedal switch complies with the machine directive and is CE marked.

Only Giovenzana contact blocks can be added. You can add 2 more additional contacts per pedal.

Additional contact references that can be added are:

Open contact screw connection: GI-PL004002
Closed contact screw connection: GI-PL004001
Open spring connection contact: GI-PCW10
Closed spring connection contact: GI-PCW01

Feature Summary:

  • Manufacturer: Giovenzana.
  • Ref: IP7018
  • Material: Thermoplastic.
  • Color: Yellow (pantone 102C).
  • Contact type: 1 NA (Per pedal).
  • Break type: Slow.
  • Maximum insulation voltage (Ui): 690V.
  • Nominal thermal current (Ith): 10A.
  • Nominal operating current (In) in AC-15 AC current category:
    • 24Vac: 16A.
    • 48Vac: 12A.
    • 120Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4.5A.
    • 440Vac: 3.5A.
    • 500Vac: 1A.
    • 690Vac: 1A.
  • Nominal operating current (In) in category DC-15 DC current:
    • 24Vdc: 2A.
    • 48Vdc: 1.2A.
    • 110Vdc: 0.4A.
    • 220Vdc: 0.25A.
  • Contact resistance:
  • Positivity: Positive opening NC contact.
  • Degree of protection: IP65.
  • Input: 16.5mm.
  • Operating ambient temperature: -25o.. +70oC.
  • Compliance: IEC/EN60947-5-4.

Dimensions:

Dimensiones pedal doble Giovenzana IP7018

Only Giovenzana contact blocks can be added. You can add 2 more additional contacts per pedal.

Additional contact references that can be added are:

  • Open contact screw connection: GI-PL004002
  • Closed contact screw connection: GI-PL004001
  • Open spring connection contact: GI-PCW10
  • Closed spring connection contact: GI-PCW01
