Limit Switch lever with series FCT wheel with cable - Giovenzana

€38.42 Tax included

32.02 tax excl.

GIFCT2L04Z11D

electric metal leverlimit switch with nylon wheel, FCT series, push button drive, made of thermoplastic material, positive opening contacts.

Pre-wired with 2 m cable, side exit.

2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.

Esquema contactos finales de carrera FCT

Giovenzana

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Model
  • Slow break 1NC/1NO
  • Sudden rupture 1NC/1NO

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch, FCT series, metal lever drive with wheel diameter 17.5 in nylon. The FCT series of position switches is made of thermoplastic material, with pre-set lateral output. Designed for industrial applications of automation, elevators and lifting, and general use. The installation is very simple, ensuring an extreme ease of assembly.

The limit switch is pre-wired with cable of length 2 meters and side exit.

High degree of protection, IP67, designed to be able to be used even in the most rigid environmental situations, these end-of-races have passed the IP67 immersion test, in accordance with the EN60529 standard.

Esquemas y salidas FCT Giovenzana

specifications:

  • Manufacturer: Giovenzana.
  • Series: FCT2L04.
  • Number of contacts: 2.
  • Contact with positive opening: NC contact.
  • Employment category: AC15/600.
  • Rated thermal current (Ith): 10A.
  • Nominal insulation voltage: 500Vac.
  • Minimum allowable current: 5mA to 5Vdc.
  • Insulation resistance: 100MΩ min. (DC500V).
  • Contact resistance: 25mΩ max. (Initial).
  • Drive travel for positive opening: Several.
  • Maximum switching frequency: 2 cycles/sec
  • Housing material: Polybutene terephthalate with UL approved glass fibers.
  • Actuator material: Miscellaneous.
  • Working temperature: -25ºC.. 70ºC.
  • Mechanical durability: 10,000,000 min cycles.
  • Electrical durability: 150,000 min cycles.
  • Fixation: 2xM4.
  • Output: Pre-wired with cable length 2 m, and side exit.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Degree of protection: IP-67.

Diagrama final de carrera roldana FCT Giovenzana

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Digital pressure switch 2 PNP outputs Digital pressure switch 2 PNP outputs 2
Pressure switches, vacuum switches and flowmeters

Digital pressure switch 2 PNP outputs - Metal Work

Metal Work
P42P04F1QD
€79.39 (€66.16 tax excl.)
Electronic pressure switch, digital measuring device, whose display changes the color of the screen when it reaches the adjustment pressure. It has two programmable PNP type transistor outputs. Large display. Operation with a voltage of 12-24Vdc. Dimensions 30x30x25,4mm. Manufacturer reference: P42P04F3QD - P42P04F1QD. Representative image for...

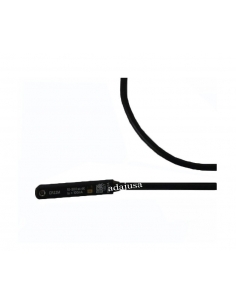

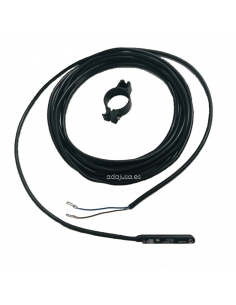

Magnetic reed sensor 2 wires connector and cable - Aignep | ADAJUSA | price
