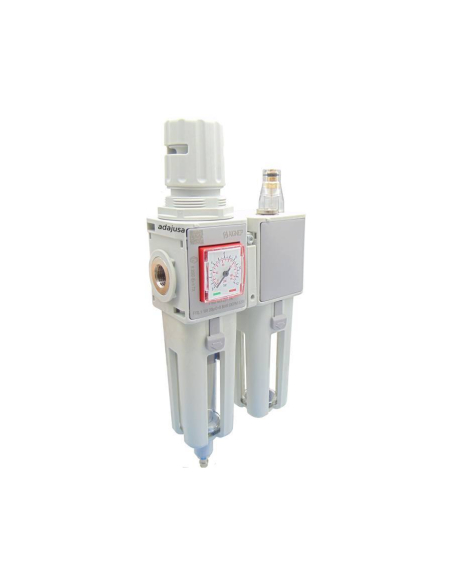

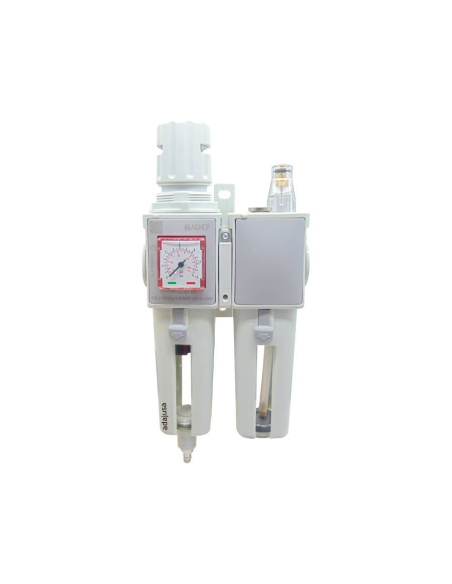

Pneumatic filtering group 1/4 regulation 0-8 bar automatic purge size 1 FRL EVO series - Aignep
Pneumatic filtering group 1/4 regulation 0-8 bar automatic purge size 1 FRL EVO series - Aignep

Pneumatic filtering group 1/4 regulation 0-8 bar automatic purge size 1 FRL EVO series - Aignep

€104.77 Tax included

€86.59 tax excl.

Filtering group of 1/4, maintenance unit of 1/4 for pneumatic applications, automatic purge, compact size (T1) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.

Series: FRL Evo
Reference: Y100103232100

Logotipo Aignep Norma de referencia serie EVO Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 filter unit, 3/8 maintenance unit for pneumatic applications, automatic drain, compact size (T1), in 2 modules (FR+L), European manufacture. Fastening by means of lateral holes. Knob with padlock.

The main features of this filtering group include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and coalescence filtration element. These filtering groups are manufactured silicone-free.

Compact pressure gauge inserted on the regulator body. With its reduced size and weight, it meets today's demand for miniaturization and performance. Manufactured in technopolymer and nickel-plated brass with excellent corrosion resistance. The type of drain is automatic, discharging the condensate when it reaches the maximum allowable level regardless of the operating pressure.

The main application of this series of filtering groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics of the filtering group:

  • Manufacturer: Aignep
  • Part number: Y100103232100
  • Number of elements: 2 (FR+L)
  • Fluid: Compressed air
  • Thread size: 1/4
  • Filtration degree: 20 μm (*)
  • Condensation drain: automatic
  • External sight glass
  • Built-in overpressure relief valve
  • Maximum pressure: 15 bar
  • Regulation from 0-8 bar (**)
  • Flow rate at 6 bar (ΔP1bar): 1500 Nl/min
  • Pressure gauge: Included
  • Vessel capacity: 28 cm3
  • Mounting screws: M5x15
  • Mounting form: Vertical
  • Working temperature: -10ºC to +50ºC
  • Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
  • Reference standard: PED 2014/68/EU
  • Mounting accessories: not included
(*) On request it is possible to supply units with a filtration degree of 5 μm

(**)Other regulation ranges on request
  • 0 a 2 bar
  • 0 a 4 bar
For other sizes or references: please consult us.

Dimensiones grupo filtrante FR-L EVO Aignep Adajusa

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
