Filter 1/8 20 micron semi-automatic purge FRL...
Filter 1/8 20 micron semi-automatic purge FRL MINI series - Aignep

Filter 1/8 20 micron semi-automatic purge FRL MINI series - Aignep

€16.81 Tax included

€13.89 tax excl.

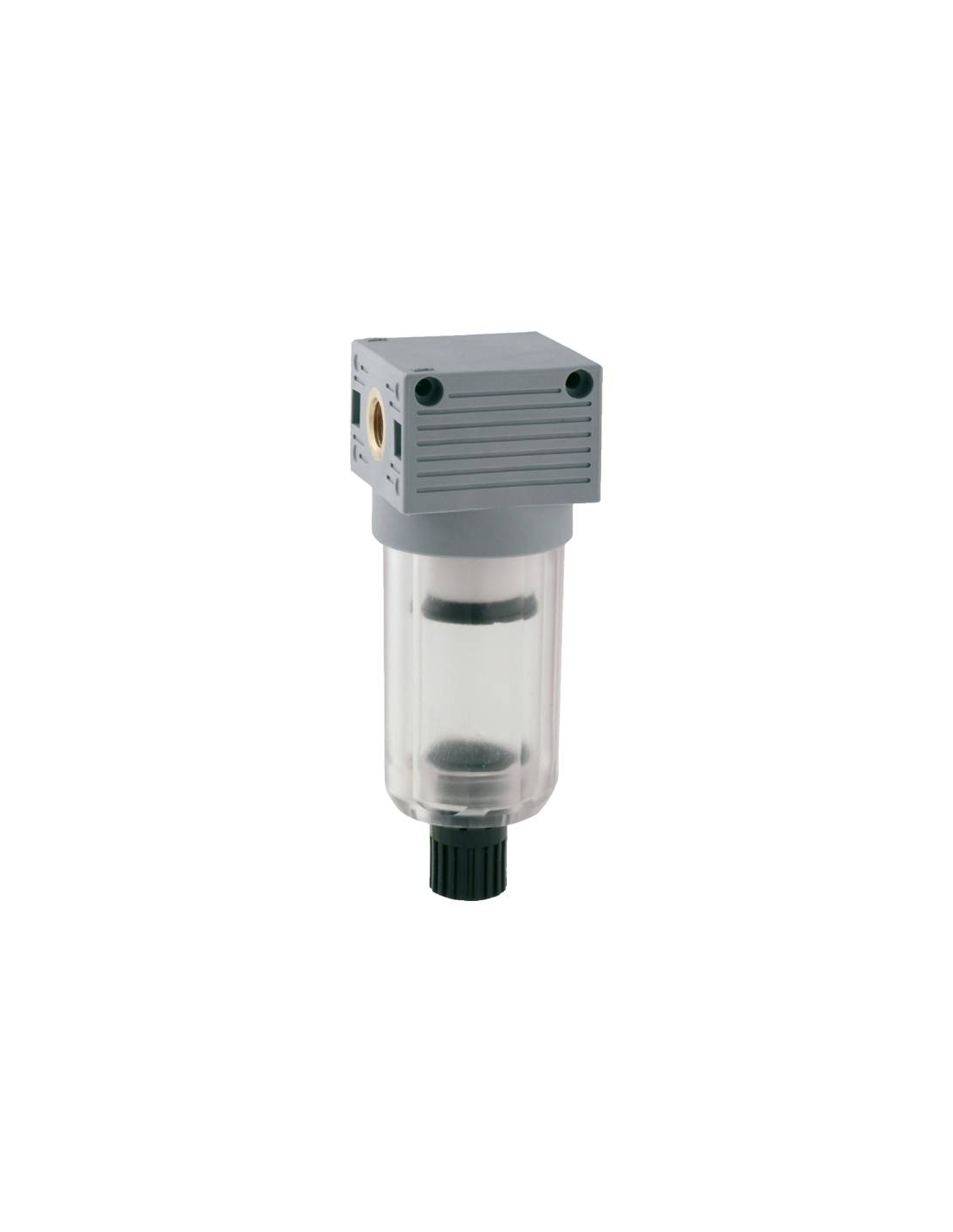

1/8 filter, with a filtration degree of 20μm and semi-automatic discharge, compact size, for retention of solid or liquid impurities from the air compressor .These filtering cups are made of technopolymer and finished in metal. Made in Italy.

Series: FRL mini
Part number: T010002201000

Simbolo neumatico filtro Adajusa
Logotipo Aignep
Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!


1/8 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size. The type of purge is semi-automatic, discharging when the pressure in the filter approaches zero.

Among the main features of this filtering group it has a high flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Features
:

  • Manufacturer: Aignep
  • Manufacturer's part number: T010002201000
  • Threaded drive: 1/8"
  • Filtration degree: 20 μm
  • Maximum inlet pressure: 15 bar
  • Manual condensate drain and automatic drain when pressure is removed.
  • Flow rate at 6 bar (∆P 1 bar): 800 Nl/min
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensation) (cm3): 17,5
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Reference standard: PED 2014/68/EU
(*) On request it can be supplied with a filtration degree of 5 μm.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa
TABLA T010 MINI

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information, you can download the technical data sheet by clicking on the "Attachments" tab
