Cylindrical male swivel elbow fitting 1/2 pipe 14mm Series 55000 - Aignep

Cylindrical male swivel elbow fitting 1/2 pipe 14mm Series 55000 - Aignep

€4.85 Tax included

€4.01 tax excl.

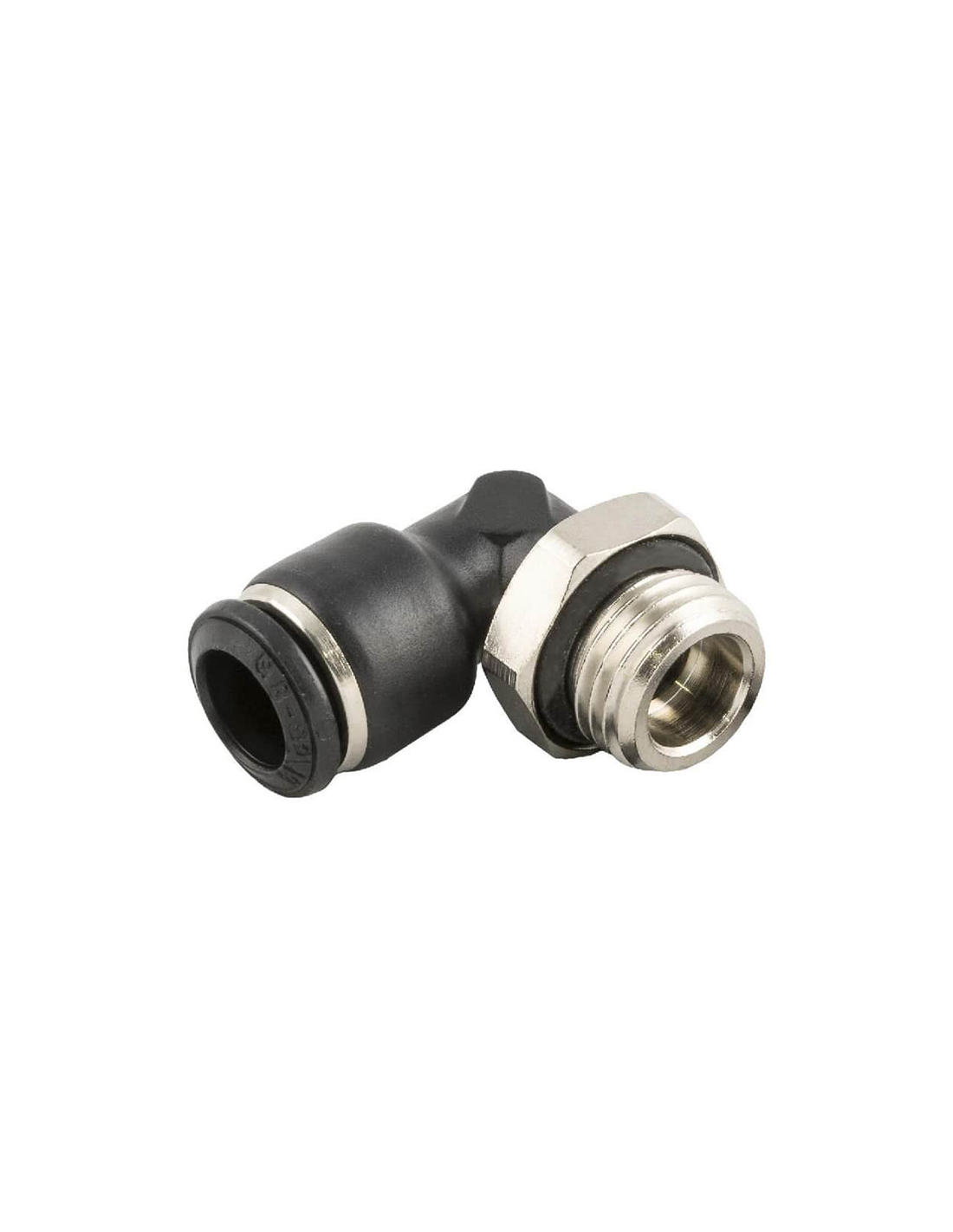

Cylindrical male swivel elbow fitting 1/2 for 14mm pipe with metal nut and gasket included, made of technopolymer and nickel-plated brass, the pipe extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55116 14 1/2




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Cylindrical male swivel elbow fitting 1/2 for 14mm tube with metal nut and gasket included, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. The connection is very efficient simple and allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.



Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55116 14 1/2
  • Male thread: 1/2
  • Outer tube diameter: 14mm
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

55116Esq

55116Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
