simple flange for downpipe diameter 32mm female downspout 1/2 - Aignep

simple flange for downpipe diameter 32mm female downspout 1/2 - Aignep

€28.11 Tax included

€23.23 tax excl.

Flange for downspouts or bypass flange for 32mm outer diameter pipe and for downspouts with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them.


Reference: 90247 32 1/2

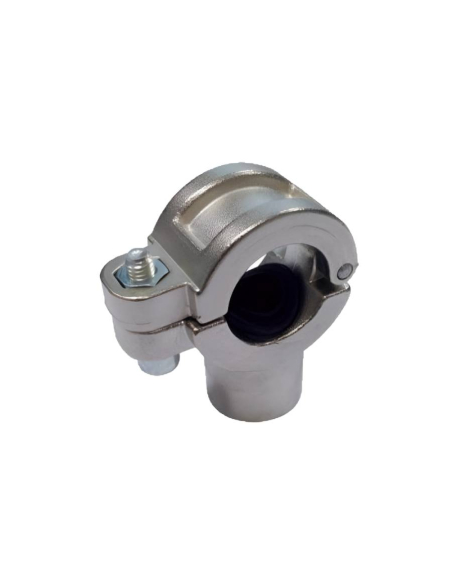

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

simple flange for creating downpipes or for branching off the main pipe network in already finished installations, for main pipe with an external diameter of 32mm and for downspouts with a 1/2 cylindrical female thread. This type of flange with a simple design allows you to create a downpipe in an already finished installation of compressed air, vacuum and inert gases such as nitrogen and argon without having to dismantle it. Body and nut made of nickel-plated brass, NBR O-ring. Maximum working pressure 16 bar .





The flanges for downpipe diameters 20, 25, 32 and 40mm come pre-assembled with the nut fully tightened, so that it is only necessary to insert the pipe to the bottom of the fitting for automatic connection or assembly, automatic system or "Push In" for quick and easy assembly.




Characteristics:

  • Manufacturer: Aignep
  • Reference: 90247 32 1/2
  • Series: Infinity
  • Pipe diameter: 32mm
  • Downpipe thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
















Material for professional use, install in compliance with the regulations in force at the installation site.
