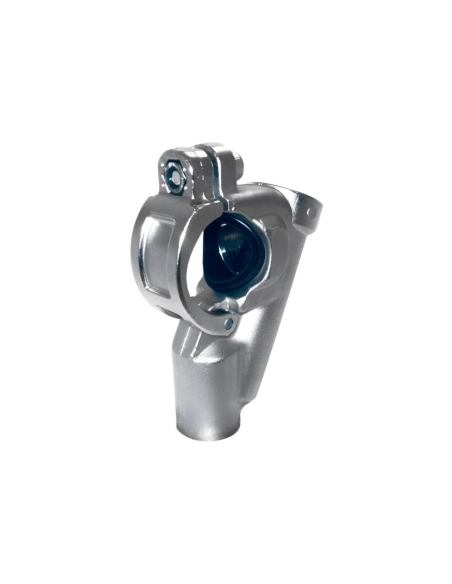

Flange for downspout diameter 32mm female downpipe 1/2 - Aignep

Flange for creating downpipes or for branching off the main pipe network in already finished installations, for main pipe with an external diameter of 32mm and for downspouts with a 1/2 cylindrical female thread. This type of flange with a condensate separation system allows you to create a downpipe in an already completed installation of compressed air, vacuum and inert gases such as nitrogen and argon without having to dismantle it. Body and nut made of nickel-plated brass, NBR O-ring. Maximum working pressure 16 bar .


This type of element with an anti-condensate design has a particular internal geometry that allows its application and installation in both horizontal and vertical positions, with the condensate always remaining in the main line of the pipe network.

The flanges for downpipe diameters 20, 25, 32 and 40mm come pre-assembled with the nut fully tightened, so that it is only necessary to insert the pipe to the bottom of the fitting for automatic connection or assembly, automatic system or "Push In" for quick and easy assembly.

Characteristics:

• Manufacturer: Aignep
• Reference: 90246 32 1/2
• Series: Infinity
• Pipe diameter: 32mm
• Downpipe thread: Female 1/2 (Gas cylindrical according to ISO 228)
• Material: Nickel-plated brass
• Application: Compressed air, vacuum, inert gas (nitrogen, argon)
• Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
• Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
• All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.
