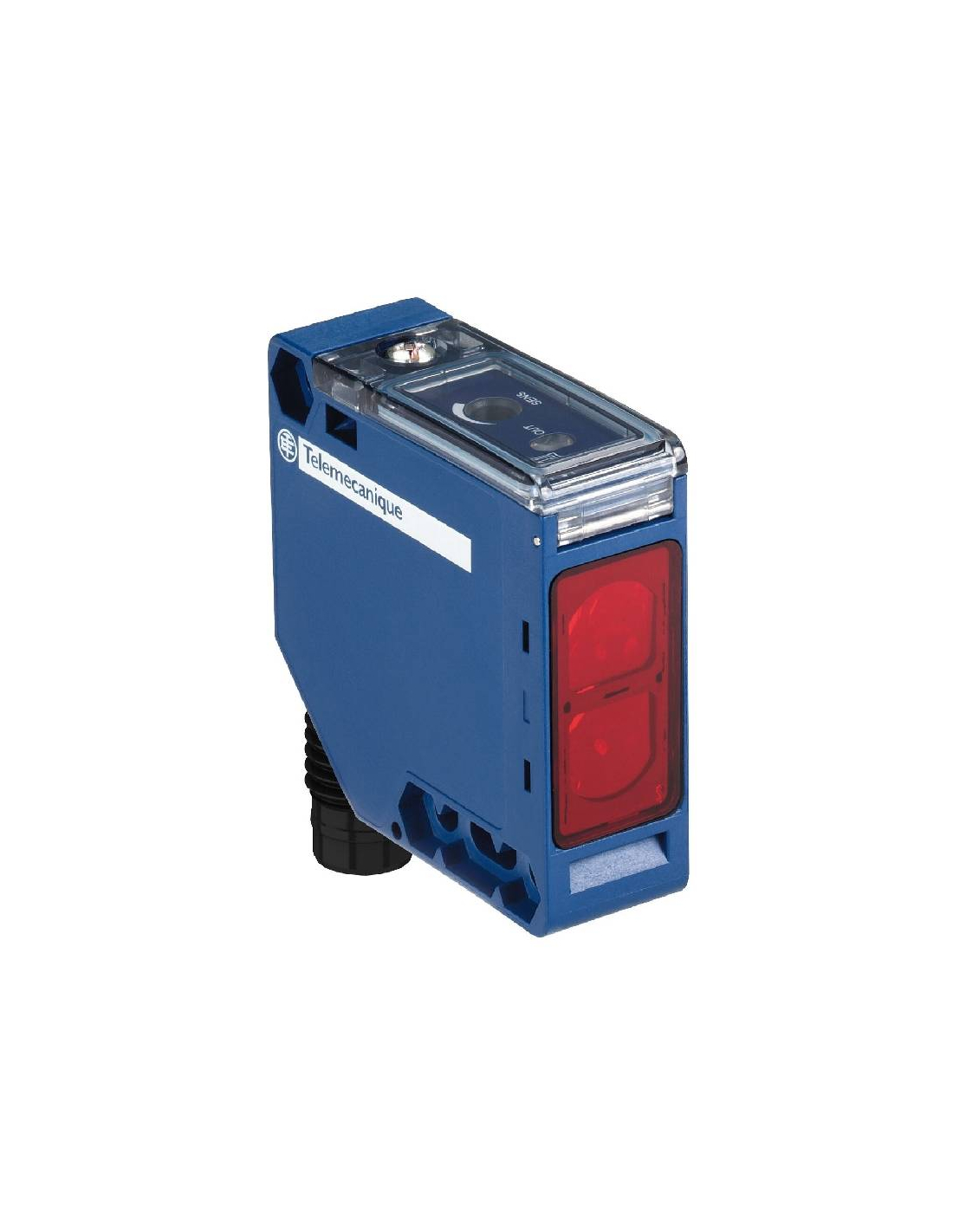

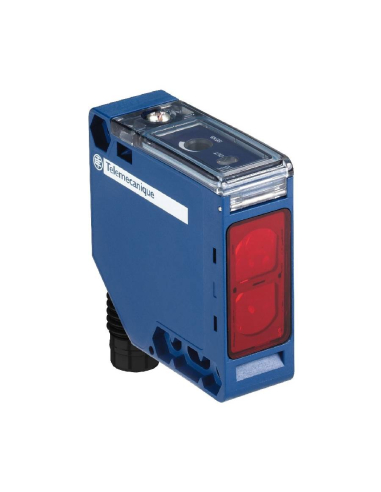

Photoelectric sensor or photocell for detecting presence or absence of objects; diffuse type detection system with PNP type output, detection range 1 meter, 4-pin M12 male connector. Supply voltage 12-24Vdc. This model can be mounted directly on the surface or on a support by means of its fixing points.
Photoelectric sensor that uses infrared light to detect the presence or absence of objects, it is based on a diffuse detection system in which emitter and receiver are in the same element. When an object intervenes in the beam emitted by the emitter, the light bounces off the object, causing reflection and changing direction and being sent to the receiver; when it is received with a different intensity to that emitted, it is translated into an electrical signal that is transmitted to the photocell control system indicating the presence of an object. If no object is present, the emitted light beam is lost in space.
Its PNP type output supplies current to the load connected to the photocell. The electrical load is connected between the sensor output and the negative terminal. When the photocell detects an object, its PNP type output closes allowing current to flow through the load and activate a relay or PLC input.
Suitable for industrial applications where it is necessary to detect or count objects in a production line or automation process, determine the exact position of an object, determine the distance between points, etc. They allow fast response and non-contact detection. Also suitable for security systems where object detection requires the activation of alarms or stopping of machinery.
Features:
- Manufacturer: Telemecanique
- Part number: XUK5APANM12
- XU SERIES
- Sensor design: Compact 50 x 50
- Detection system: Diffuse
- Housing material: Plastic
- Lens material: PMMA
- Output signal type: Discrete
- Power circuit type: DC
- Wiring technique: 3-wire
- Discrete output type: PNP
- Discrete output function: 1 NO
- Electrical connection: 4-pin M12 male connector
- Emission: Diffuse infrared
- Nominal sensing distance: 1 meter
- Maximum sensing distance:: 1.5 meter
- Status LED: 1 LED (yellow) for output status
- Nominal supply voltage: 12...24 Vdc
- Switching capacity
- Switching frequency
- Maximum voltage drop
- Current consumption
- Maximum initial delay: 15 ms
- Maximum response delay: 2 ms
- Maximum recovery delay: 2 ms
- Configuration: No sensitivity adjustment
- Operating Temperature: -25 to +55ºC
- Dimensions: 50x50x18 mm
- Weight: 0.19kg
- Degree of protection: IP65, double insulation according to IEC 60529
- Certifications: CE, CSA, UL
Dimensions:
Wiring diagram:
Possible connector orientations angled:
For further information, you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, it has to be installed by qualified personnel respecting the regulations in force at the place of installation.
