Cap from friction SF2 101212C type PAP 1012 P20 - ADAJUSA
Cap from friction SF2 101212C type PAP 1012 P20 - ADAJUSA

Grooved plain bearing SF2 101212C type PAP 1012 P20 - ISB

€0.38 Tax included

€0.31 tax excl.

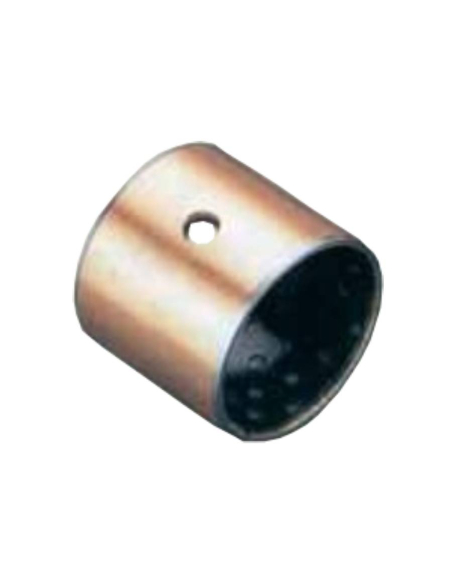

Honeycombed bushing SF2 10x12x12mm PAP P20 , polyacetal resin (POM) interior with a sheet steel base on which a thick porous layer of bronze is sintered. The finish of the outer steel frame is copper plated.

Used in the mining and metallurgy industries, stamping presses, hydroelectric machinery, for cold rolling of steel and many other applications that require periodic lubrication.

Reference: SF2101212C




Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Bushings with alveolate surface, friction bushing (bearing) that has alveoli to contain and gradually release the lubricant, this characteristic means that they require little maintenance, they have a reduced friction capacity to protect the surface of the bushing.

It has an outer hole to facilitate lubrication. It is recommended to use a lithium grease.

Note: MoS2 and lithium based greases are not suitable.

As main characteristics of this type of bushings we can highlight:

  • Reduced maintenance, thanks to long relubrication intervals.
  • Good adaptability to oscillating and rotating movements
  • Limited wear (provided they are applied and used correctly)
  • water-repellent
  • Reduced sensitivity to edge loading
  • Good heat dispersion



Characteristic:

  • Manufacturer: ISB
  • Type: SF2
  • Reference: 101212C
  • Friction material: POM on porous bronze.
  • Outer material: Copper-plated steel armor.
  • Inner surface: Alveolate.
  • Load capacity: 70N/mm2
  • Temperature: -40ºC to +130ºC
Dimensions:
  • Inner diameter (d): 10mm
  • Outer diameter (D): 12mm
  • Length (L): 12mm
  • Outer hole diameter (H): 4mm
Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attached Files" tab.
