Fuse holder base 2 poles 8x32 20A for DIN rail mounting

€5.42 Tax included Delivery between 2 and 4 weeks.

€4.48 tax excl.

2-pole 8x32mm fuse holder for electrical connection up to 20A and 690V, for 8x32mm cylindrical fuse cartridges, and protection of both circuits and electrical machinery.


Part number: HBA-2P-20


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

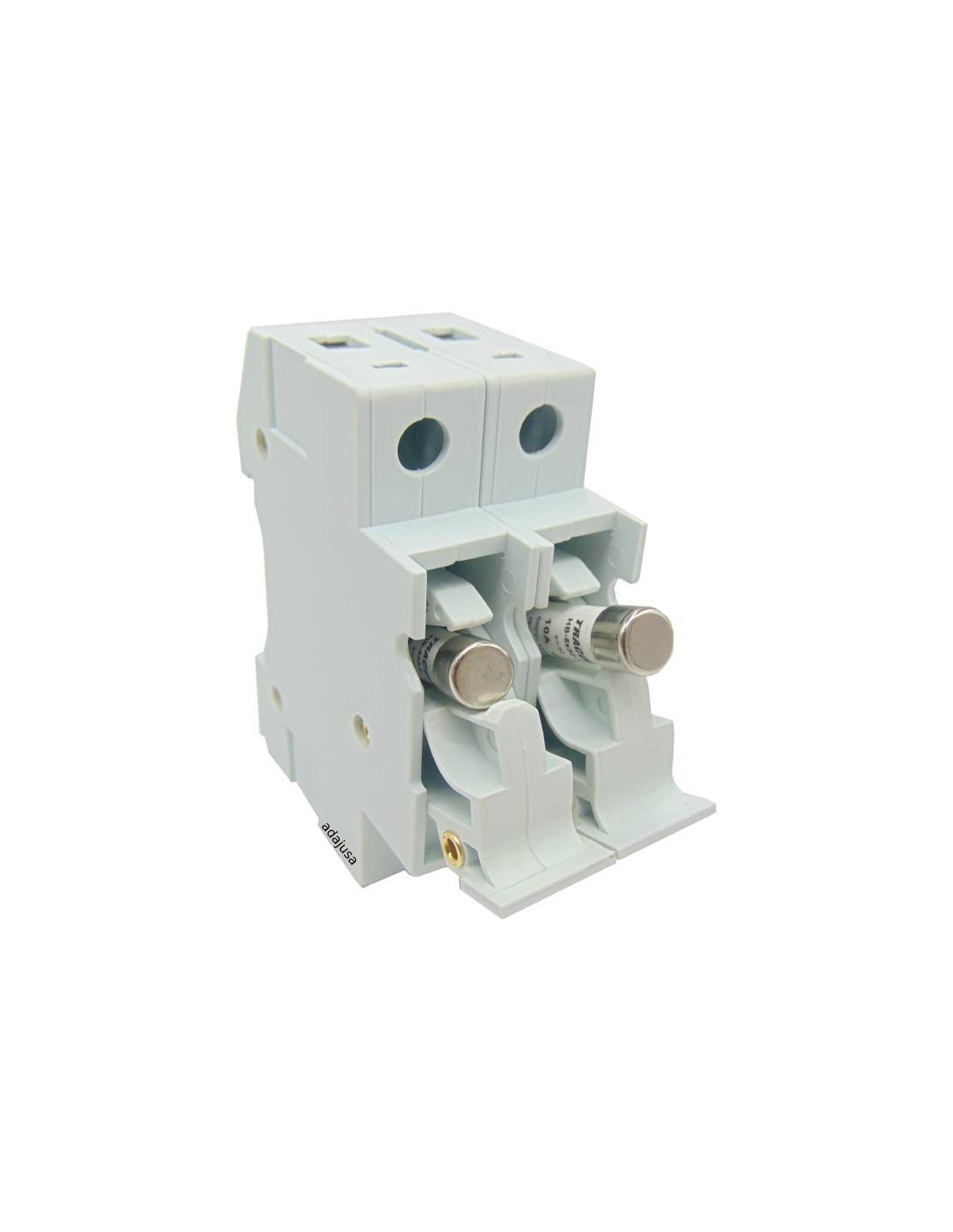

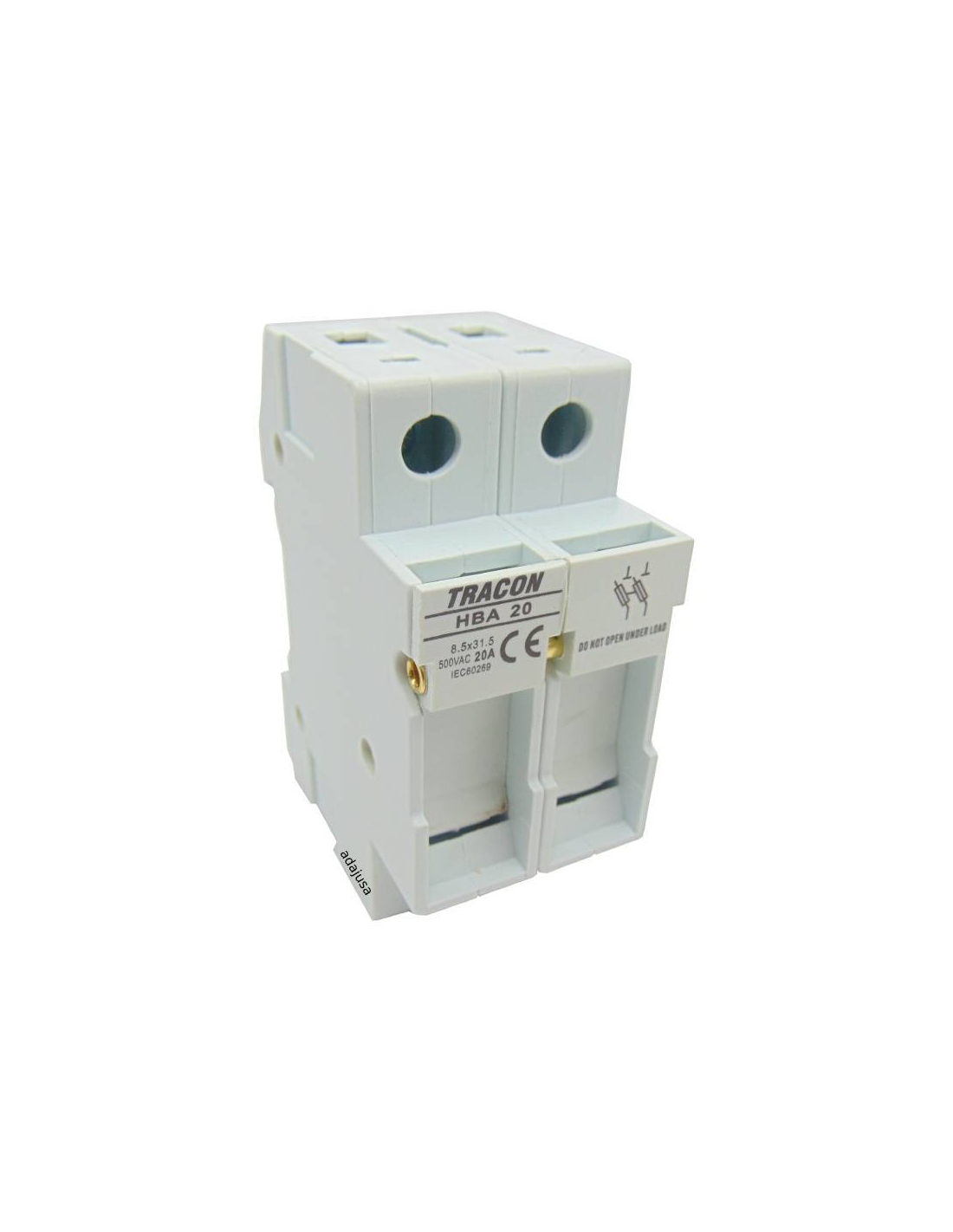

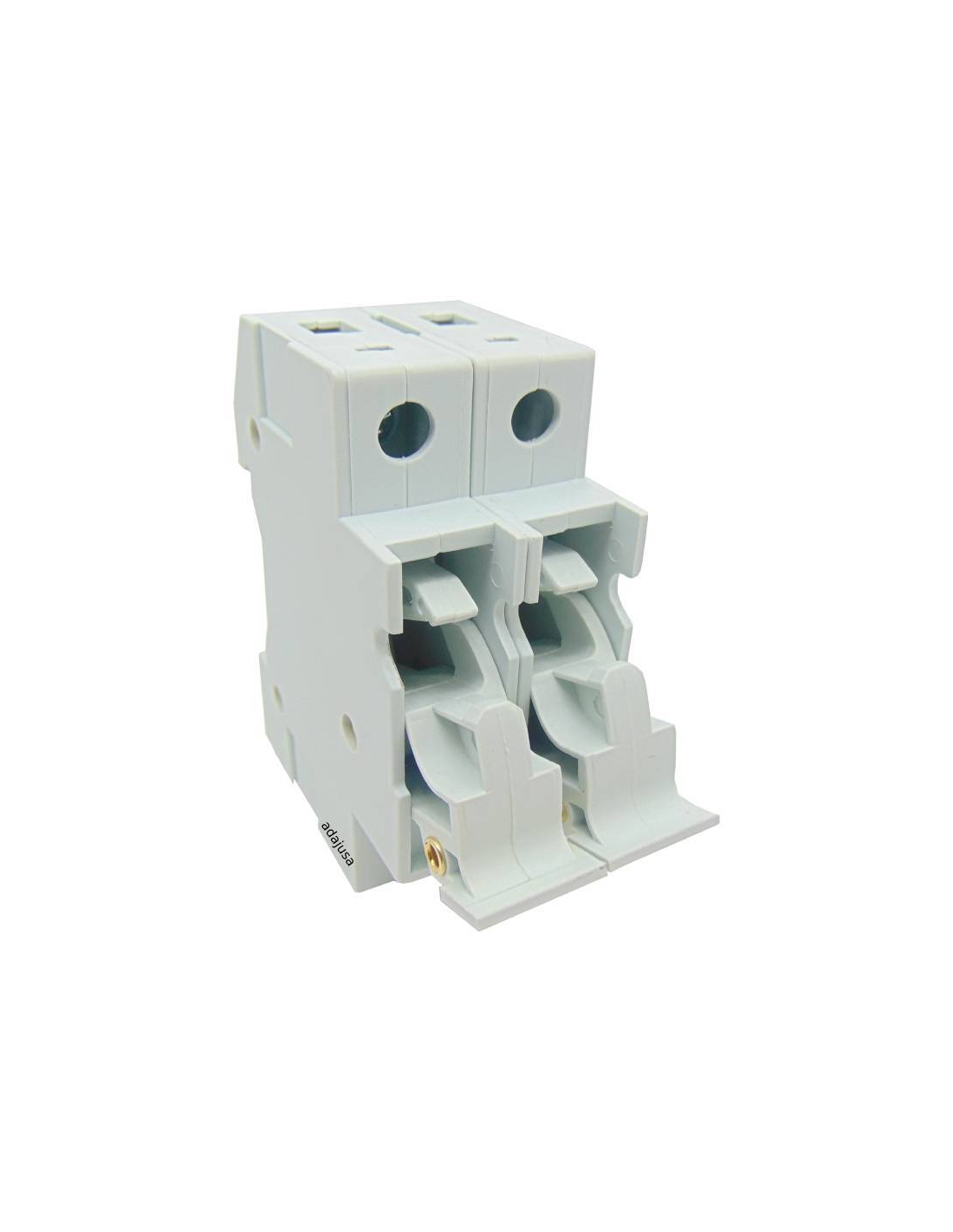

2-pole disconnectable fuse holder for 8x32mm fuses, DIN rail mounting. Its main use is the protection of electrical cabinets in machinery and general use.

Self-extinguishing plastic riveted housing V0 UL94. Allows connection from both top and bottom.
The supply only includes the fuse base, not the fuse, which has to be purchased separately.


Technical specifications:

  • Manufacturer/Supplier: TRACON
  • Part number: HBA-2P-20
  • Number of poles: 2
  • Fuse size: 8x32
  • Rated current: 20A
  • Rated voltage: 230V/400V
  • Rated frequency: 50 / 60Hz
  • Rated voltage from isolation: 690V
  • Rated breakdown current: 100 kA 500Vac / 50kA 690Vac
  • Cable cross-section: 1.5 - 6mm²
  • Mounting: DIN rail
  • Degree of protection: IP20
  • Standards: EN 60269-1, HD60269-2





Material for professional use, install in compliance with the regulations in force at the place of installation.
