FA output flange for reducer size 50

Name: FA output flange for reducer size 50
Brand: Generico-MOT
SKU: FA-50
Price: 9.504 EUR
Availability: InStock

€9.50 Tax included

€7.92 tax excl.

Output flange type FA-50 for wormgearboxes size 50. This flange allows a lateral coupling in a very compact way simple.

Part No.: FA-50

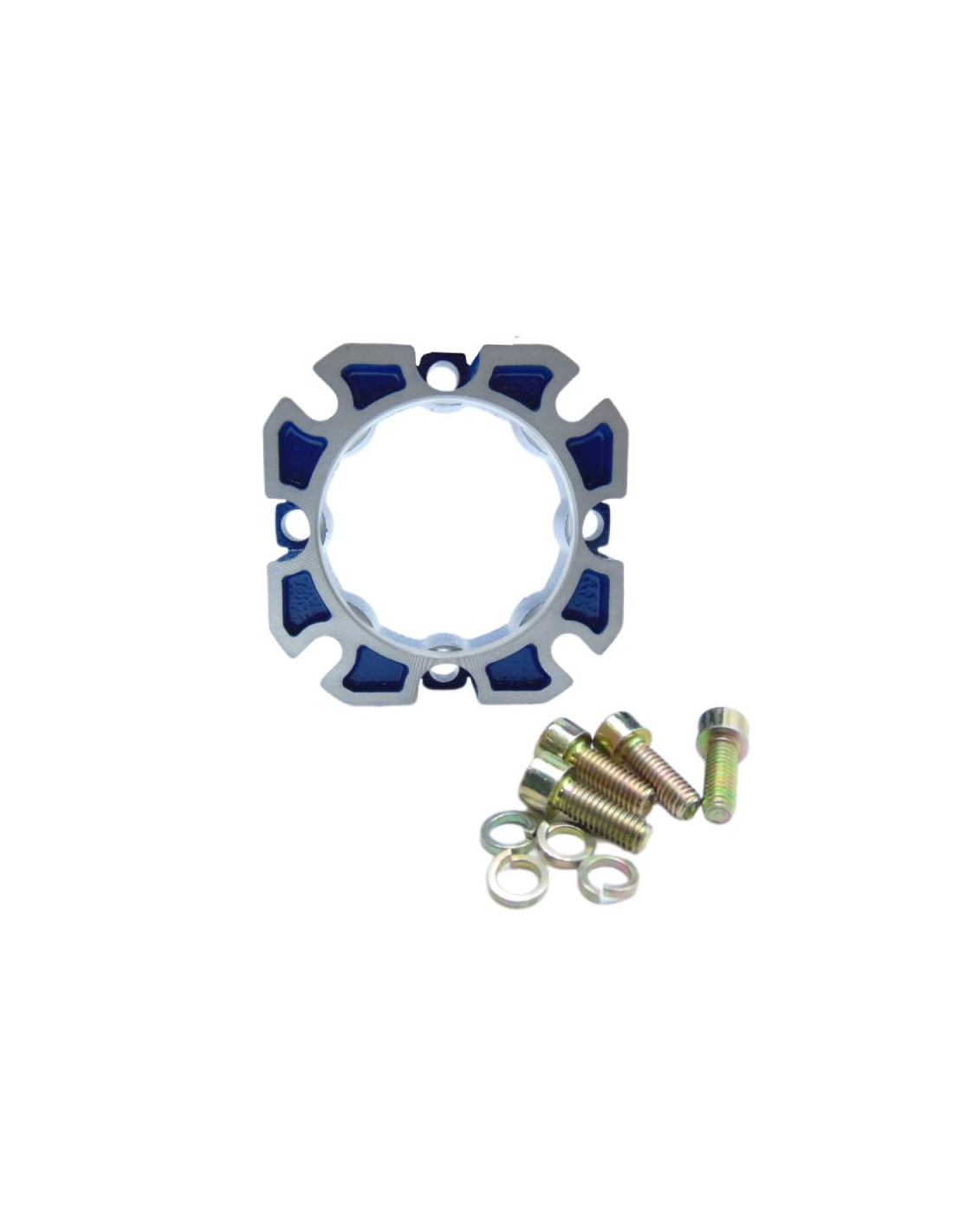

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Lateral output flange type FA-50 for worm gearboxes size 50. This flange allows a lateral mounting in a very compact way simple. Made of aluminum.

Technical specifications

Part number: FA-50
Type of flange: FA
Size: 50
Material: Aluminum

Material for professional use, install in compliance with the regulations in force at the place of installation.
