Cap 19mm to 24mm drive shaft or gearbox adapter

Name: Cap 19mm to 24mm drive shaft or gearbox adapter
Brand: Generico-MOT
SKU: CAS-19/24
Price: 11.532 EUR
Availability: InStock

€11.53 Tax included

€9.61 tax excl.

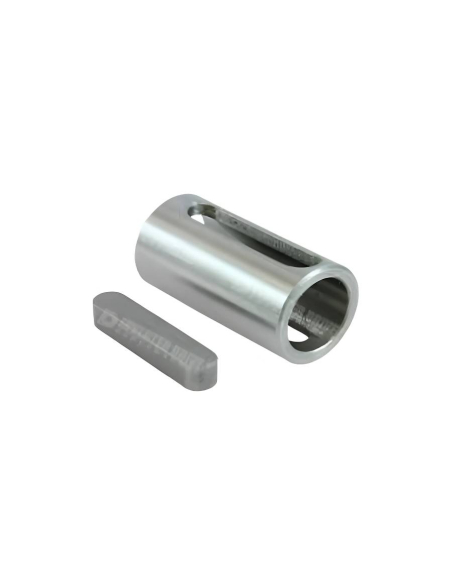

Cap 19/24 adapter for motor or gearbox shaft, inner diameter 19mm and outer diameter 24mm. Made of steel, this adapter bushing allows to increase the diameter of a motor shaft to adapt it to the input of a gearbox or any other application.

Reference: 19/24

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Cap 19mm inner diameter and 24mm outer diameter adapter. Allows to adapt the output shaft of a motor to the input shaft of a gearbox or any other type of application.

Made of ground steel.
The supply includes the key for the bushing.

Technical specifications

Part No.: 19/24
Material: Steel
Finish: ground
Inside diameter: 19mm
Outside diameter: 24mm
Key: included

Material for professional use, must be installed in compliance with the regulations in force at the place of installation.
