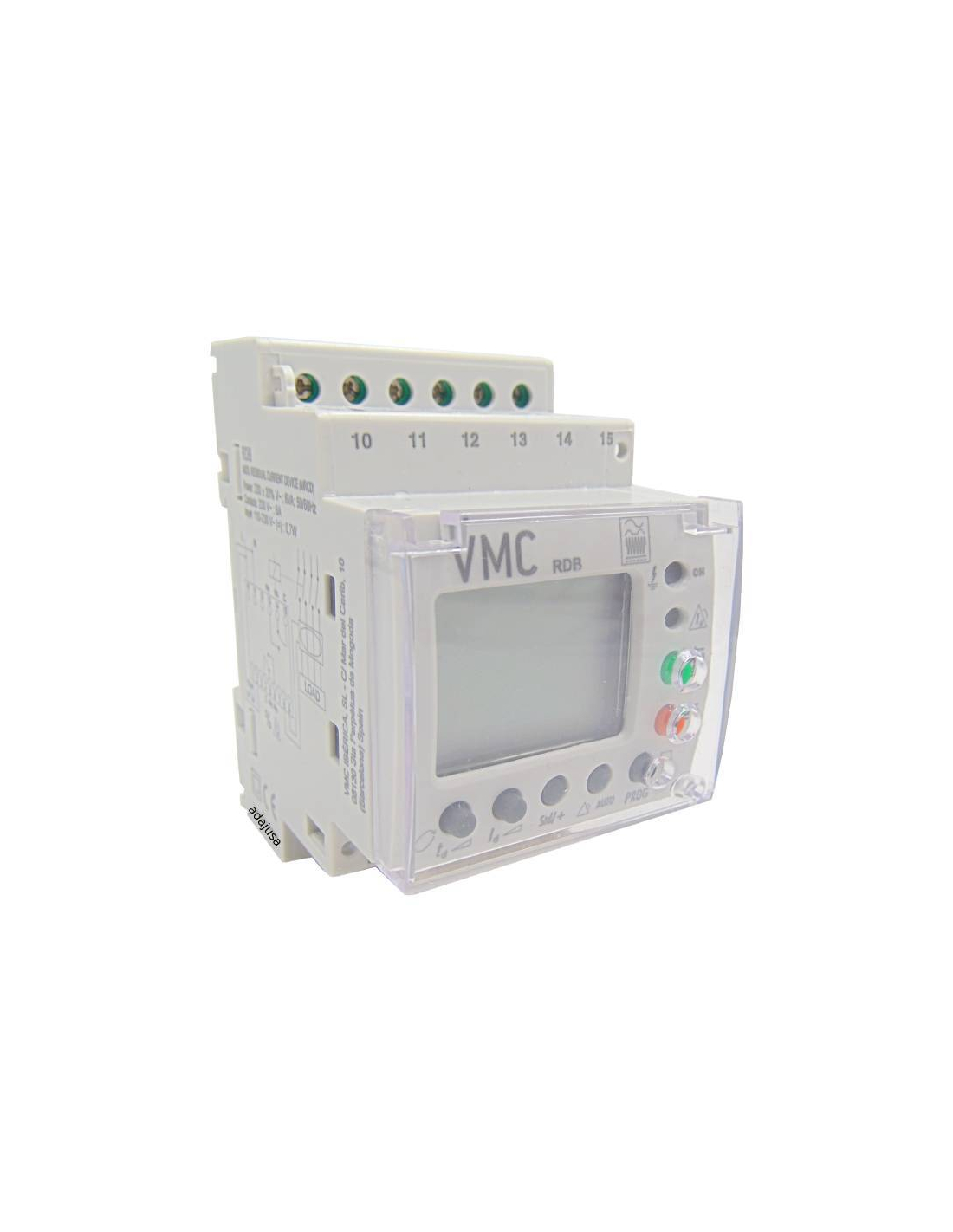

Class B differential protection electronic relay - RBD Series

€397.46 Tax included

€328.48 tax excl.

Electronic relay with class B differential protection for protection and monitoring of computer equipment, frequency converters, electric vehicle chargers and photovoltaic installations. Detection of alternating leakage current up to 1kHz, pulsed and pure continuous.

Compatible with TDC-TB series protection transformers.


Reference: RBD0001



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electronic relay with class B differential protection for protection and monitoring of computer equipment (UPS), frequency converters, electric vehicle chargers and photovoltaic installations. Detection of alternating leakage current up to 1kHz, pulsed and pure continuous.

Compatible with TDC-TB series protection transformers.


Note: The toroidal transformer is not included in the supply.




Characteristics:

  • Manufacturer/Supplier: VMC
  • Reference: RBD0001
  • Class: B (IEC 60755)
  • Sensitivity: 0.1A...3A (according to TDC-TB)
  • Delay: 0.1s...10s
  • Differential transformer: External, TDC-TB series
  • Test and reset: Using buttons, T and R
  • Remote control: Possible Remote Test and Reset
  • Control of the display and control element: Through 2 NO/NC switched output relays
  • Auxiliary power: 230Vac ±20% 50/60Hz 6A
  • Output Contacts : 25Vac
  • Use temperature: -10...+50C
  • Fixing: DIN Rail 46277
  • Dimensions: 3 modules (70mm)
  • Weight: 256g
  • Protection degree: Terminals IP20, Transpanel IP41
  • Standards: IEC 62020, IEC 60755, IEC 609472-4, IEC 62423

Dimensions:


Connected:







For more information, you can download the technical sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.
