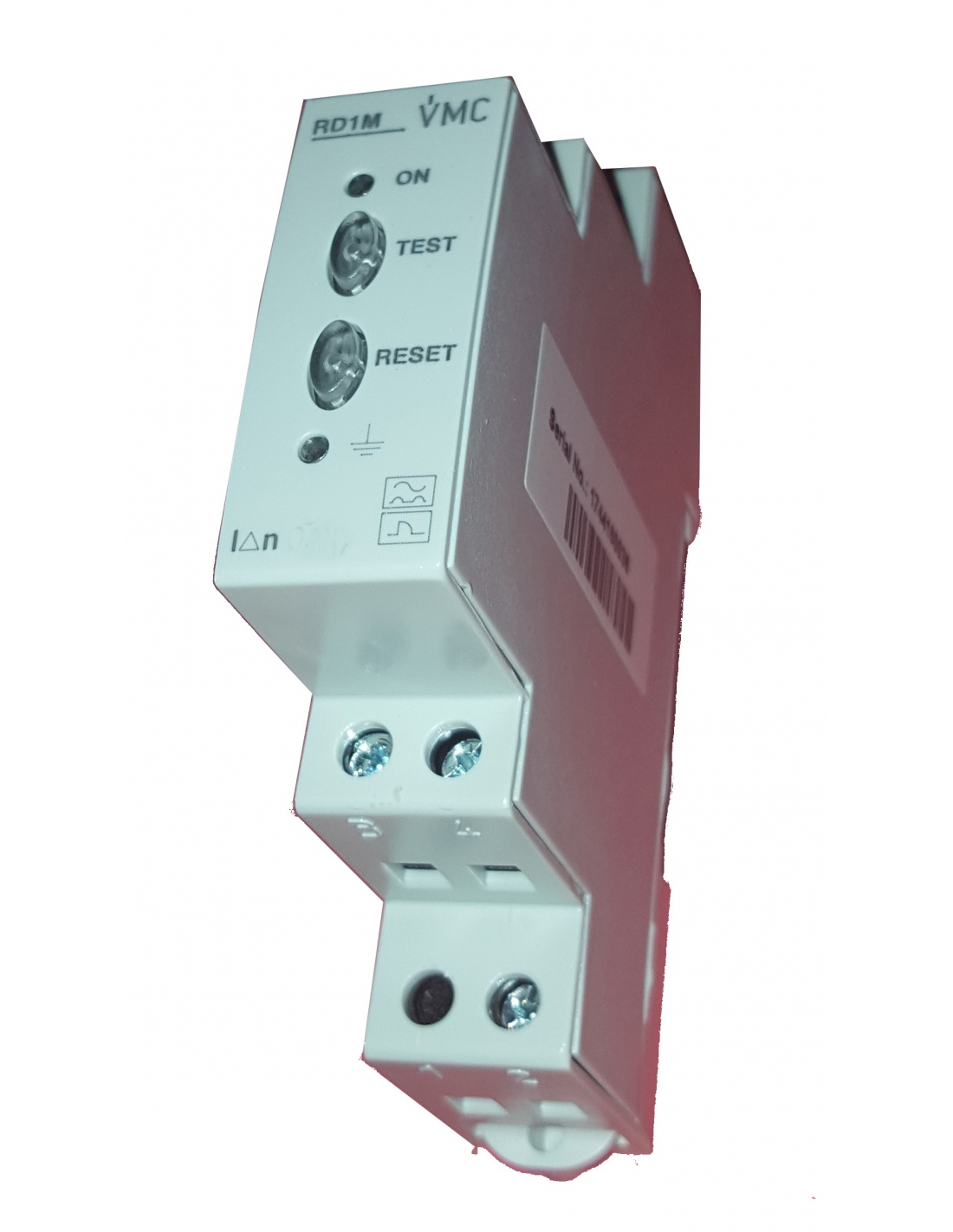

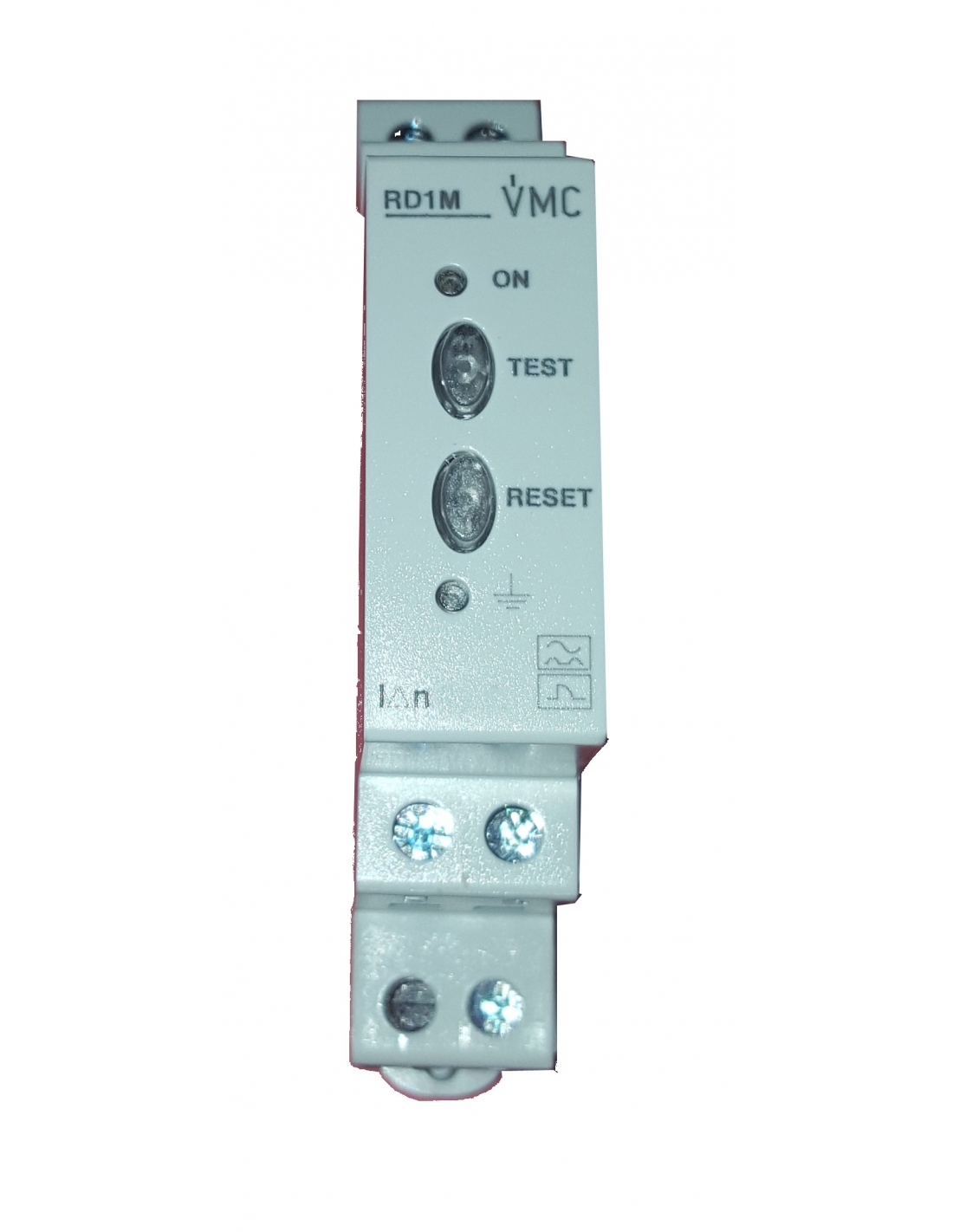

Electronic differential relay of sensitivity and fixed delay class A of great reliability for industrial protection, both in single-phase and three-phase systems. Sensitivity 30mA (0.03A) and trip time 0.02s, to be connected to an external toroidal transformer of the TD series. It has a switched contact for the firing element.

Reference: RD1M030

Logotipo clase A

Marca LG


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Differential protection relay which allows complete differential protection by associated it with a toroidal transformer of the TD series, ensuring maximum safety and continuity of the electrical service and avoiding untimely firing. The relay can be installed on single-phase or three-phase lines.

The sensitivity is set to 30mA (0.03A) and the firing time is 0.02s: mounting is done on symmetrical perfl DIN 46277. 230Vac supply voltage. Switched NA/NC output contact to trigger an external trigger element.

Class A differential protection for the detection of alternating and alternating leakage current with continuous component, which makes it especially recommended for electrical installations with the presence of currents distorted by the presence of harmonics. Fixed detection is performed by sampling the differential intensity and calculating its true effective value (TRMS).

Note: The measurement element, the toroidal transformer is not included in the supply.

Technical details:

  • Manufacturer: LS
  • Manufacturer's Reference: RD1M-030
  • Type: Class A, immunized, high-frequency current filtering
  • Sensitivity (I'n): 0.03A (30mA)
  • Delay: 0.02 seconds
  • Output contact: 1 switched contact NA/NC 5A. 250Vac
  • Maximum power: 1250VA
  • Electrical performance: 100x103 operations, 5A. 85oC with resistive load 250Vac
  • Relay power supply: 230Vac (± 20%) 50/60Hz 4VA
  • Test pushbutton
  • Type of reconnection: manual via Reset button or power outage
  • Operating temperature: -10o to 65oC
  • Fixing: via DIN rail
  • Dimensions: 17.5x90x72mm (1 module)
  • Degree of protection: IP20 / IP41 transframe
  • Standards: IEC 61008-1, IEC 755, IEC 255-5

Led status indications:

  • Leakage LED on permanently: relay triggered
  • Power LED flashing and leakage on: Continuity failure detection in transformer.

Dimensions:

Dimensiones rele diferencial RD1M030

Mounting:

Conexión relé diferencia RD1M030 bobina de emisión

Conexionado relé diferencial RD1M030 bobina de mínima


Material for professional use, install in compliance with the regulations in force at the installation site.
