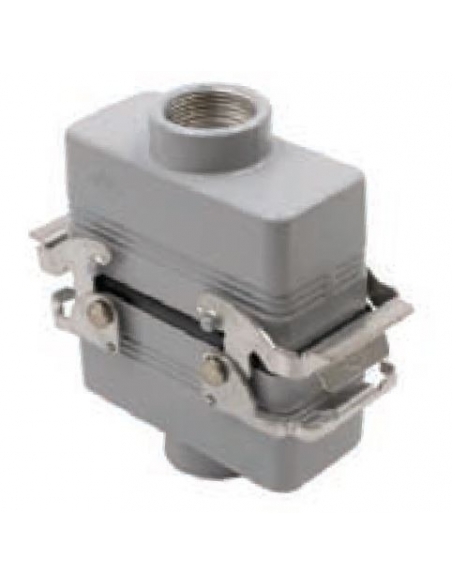

Full 6-pole multipolar extension connector and Pg16 ground
Full 6-pole multipolar extension connector and Pg16 ground

Full 6-pole multipolar extension connector and Pg16 ground

€58.66 Tax included

€48.48 tax excl.

6-pole multipolar extension connectors + grounding, complete with vertical output Pg16. Can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection.

Reference: CNLZ06VG

No queries yet, leave the first!


Complete, 6-pole multipolar extension connectors and grounding. Vertical cable output with Pg16 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer: ILME
  • Reference: CNLZ06VG
  • Series: CNZ, full connector 16A max - 500Vac.
  • Number of poles: 6+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: Pg16.
  • Regulations: EN 61984:2009-06
