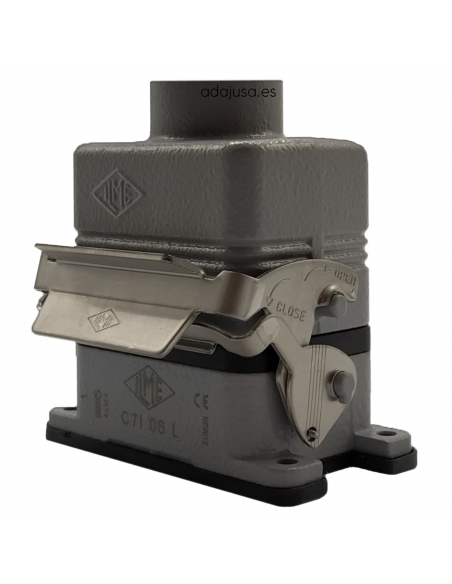

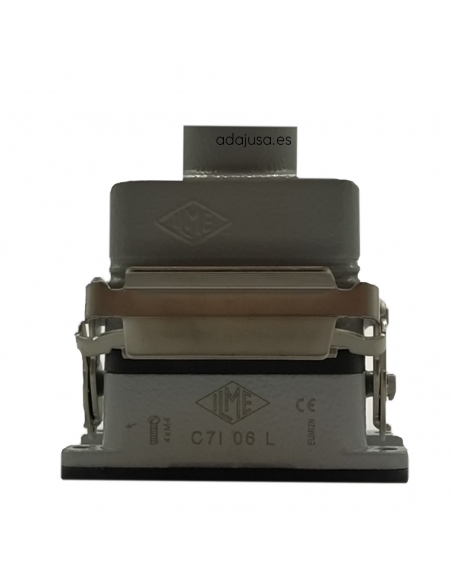

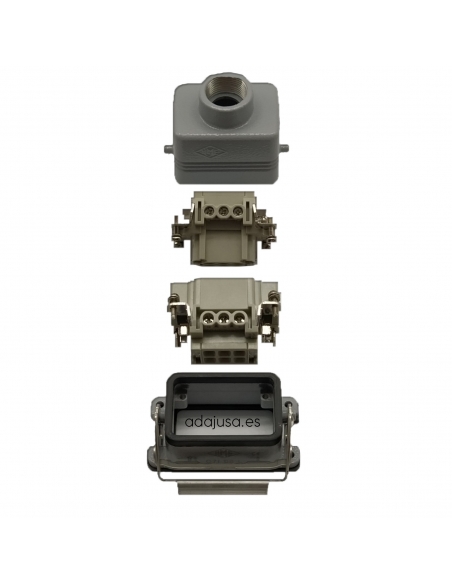

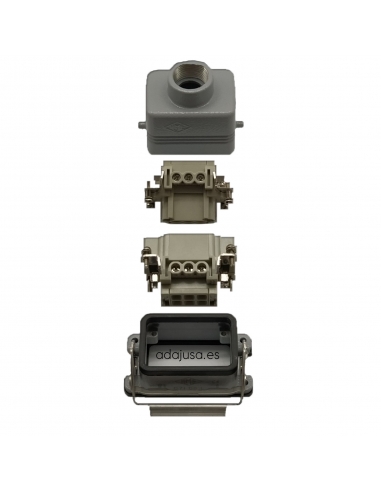

Full multipolar connector 24 poles and recessed ground vertical output PG21

€87.23 Tax included

€72.09 tax excl.

24-pole multipolar connectors + grounding, complete with PG21 vertical output, recessed panel mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection.

Reference: CNZ24IV

No queries yet, leave the first!


Complete multipolar connectors, for panel mounting, 24-pole and grounding. Vertical cable output with PG21 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer/Supplier: ILME
  • Reference: CNZ24IV
  • Series: CNZ, full connector 16A max - 500Vac.
  • Number of poles: 24+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: PG21.
  • Situation: Vertical.
  • Weight:
  • Regulations: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar
