Intermediate straight fitting diameter 6mm...
Intermediate straight fitting diameter 6mm Series 55000 - Aignep

Intermediate straight fitting diameter 6mm Series 55000 - Aignep

€1.49 Tax included

€1.23 tax excl.

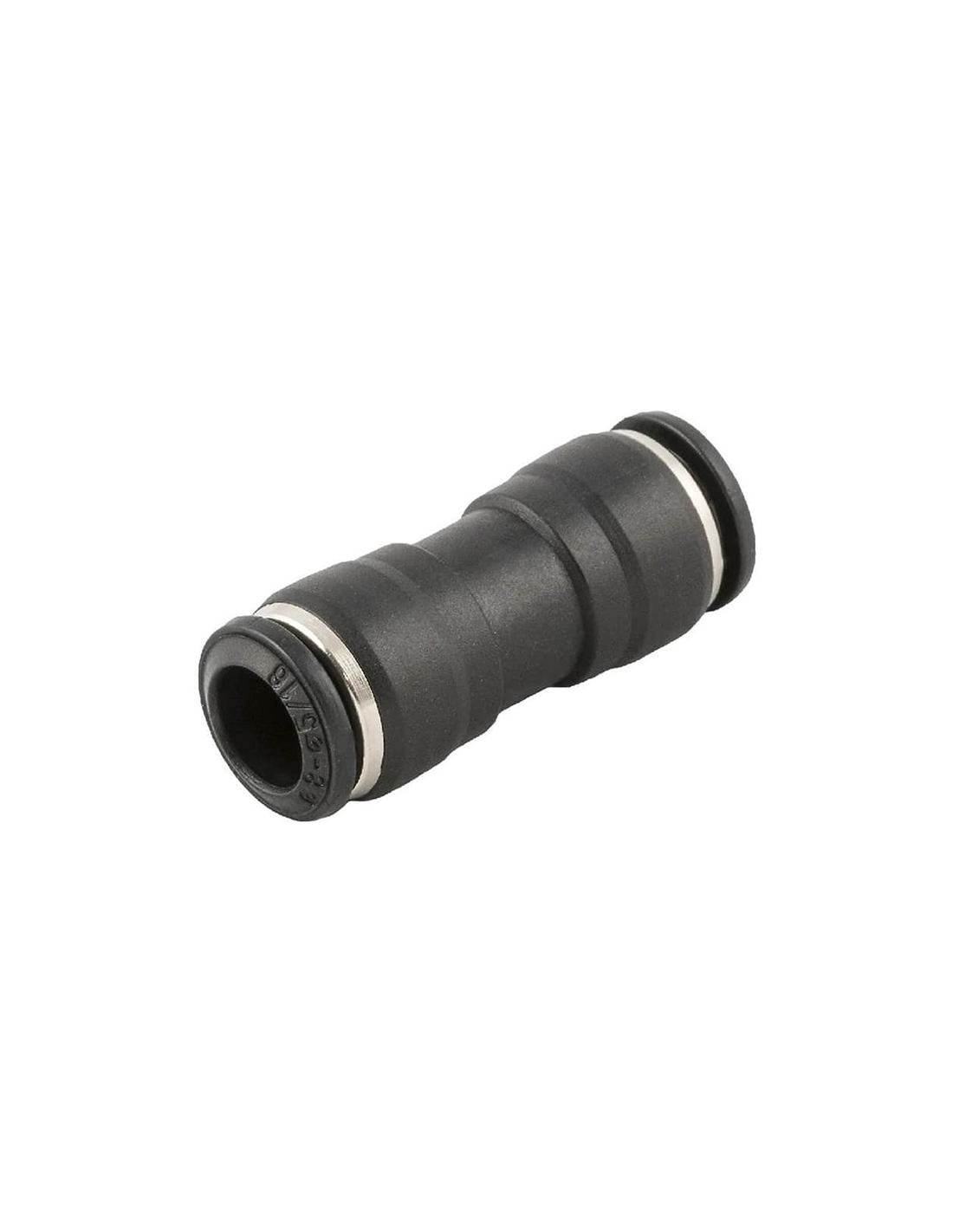

Intermediate straight fitting for 6mm tubing, made of technopolymer and the tubing extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55040 6




aignep
normativa


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Intermediate straight fitting for 6mm tubing, made of technopolymer and the tubing extraction ring in acetal resin. The connection is very efficient simple and allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 55040 6
  • Outer tube diameter: 6mm
  • Fluid: vacuum, compressed air and water
  • Material: technopolymer
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20°C to +80°C
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

50040 Esq

55040Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
