round head for black push button - SCHNEIDER

€4.04 Tax included

3.37 tax excl.

XACA9412

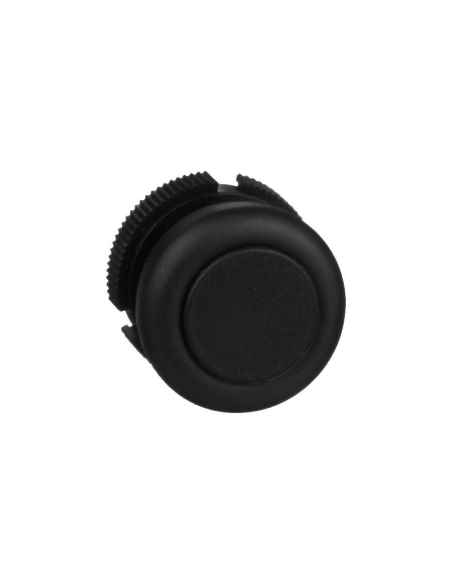

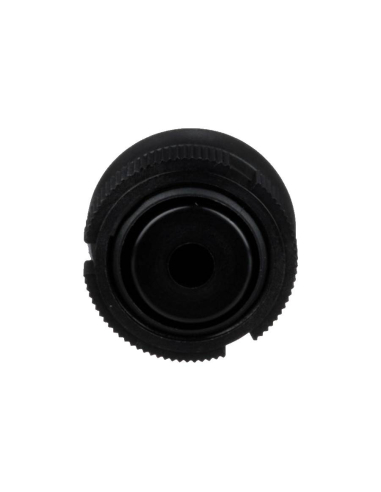

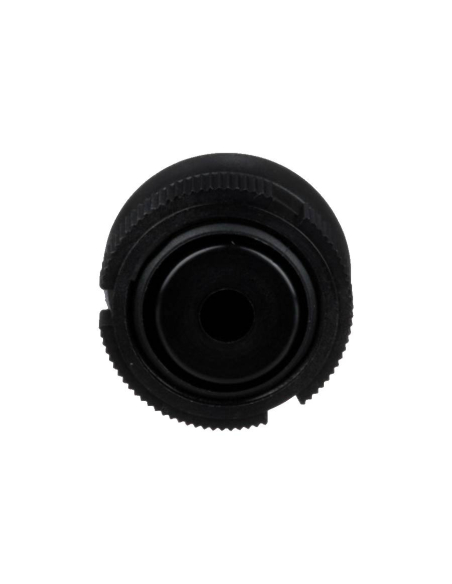

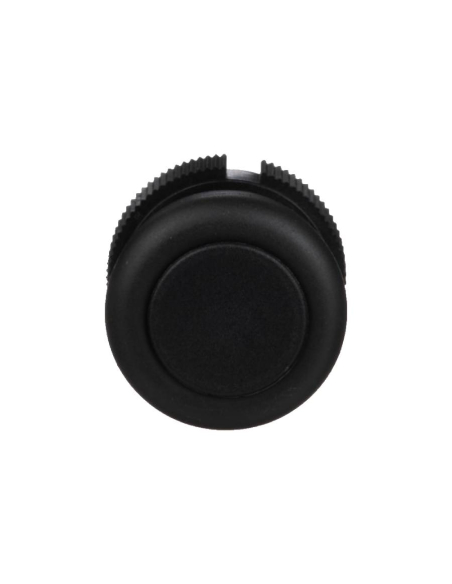

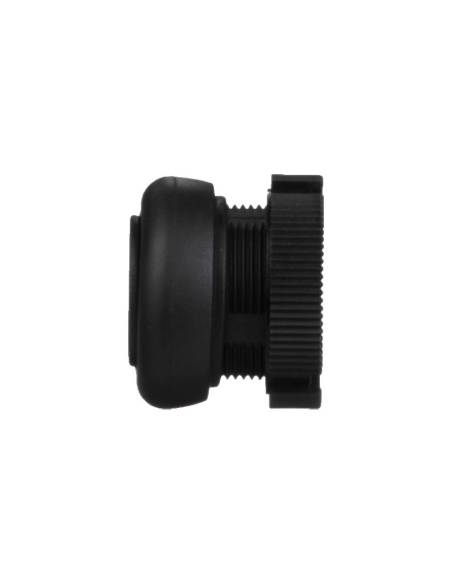

Black round head for pushbutton, spring return. Suitable for front mounting on pendant pushbutton boxes and can be combined with the HARMONY XAC series of contact blocks.


Reference: XACA9412




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Black round head for push buttons. Capped head, works with a spring/impulse return mechanism.

Suitable for front mounting on Schneider HARMONY XAC series pendant control boxes and combinable with the range of contact blocks of the same series, allowing it to perform a wide variety of control functions.




Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XACA9412
  • HARMONY XAC SERIES
  • Operator Profile: Black flush, unmarked
  • Operator Type: Spring Return
  • Operating temperature: -40…70C
  • Overvoltage category: Class II according to IEC 61140
  • IP protection class: IP65 according to IEC 60529
  • IK protection class: IK08 according to IEC 62262
  • Weight: 0.01kg
  • Regulations: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60204-32, UL 508








For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Empty pendant push Button box 2 push buttons - SCHNEIDER

Schneider
XACA02
€52.06 (€43.38 tax excl.)
Empty Button box with die-cut for two push-buttons, allows for custom composition by adding the necessary control units for machinery control and general use. Pendant control Box ideal for elevators and crane applications, made of yellow polypropylene with stepped rubber cable entry.Compatible with push buttons, pilot lights, switches and selectors with a...
Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Pendant emergency stop push Button box and 2 push buttons - SCHNEIDER

Schneider
XACA2913
€110.62 (€92.18 tax excl.)
Button box equipped with an emergency stop button and up and down buttons providing 2 speeds (low and high) for each movement. Pendant Box ideal for elevators and crane applications for the control of two-speed motors, made of yellow polypropylene with stepped rubber cable entry.In compliance with the safety requirements of IEC standards. Reference:...

16 other products in the same category:

PLN07 Giovenzana series 7-element adajusa
Lifting elements - crane bridges - hostas

Emergency button PLN07 bridge crane or hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN07
€119.60 (€99.67 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, behind and front and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 7 elements...
Position Limiter FCR006 - Giovenzana adajusa
limit switch - position detectors - electric pedals - sensors

Limit Switch FCR003 Position Limiter - Giovenzana

Giovenzana Internacional B.V.
FCR003
€116.66 (€97.22 tax excl.)

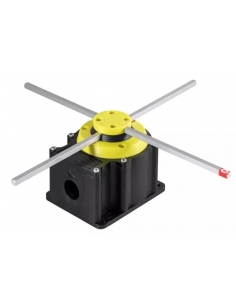

Position limiter,limit switch, for bridge cranes, hoists, lifting systems and industrial systems in general, crossbar and four positions (0º/90º/180º/ 270º) with mechanical interlocking. Reference: FCR003 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Button 10 elements PLN10 Series Giovenzana adajusa
Lifting elements - crane bridges - hostas

Emergency Button PLN10 Crane Bridge or Hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN10
€171.68 (€143.07 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, a pushbutton with alarm and pushbuttons for up and down, behind and front, behind and front (double speed) and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements....
Position limiter FFH001 - Giovenzana adajusa
limit switch - position detectors - electric pedals - sensors

Limit Switch position limiter FFH003 - Giovenzana

Giovenzana Internacional B.V.
FFH003
€100.27 (€83.56 tax excl.)

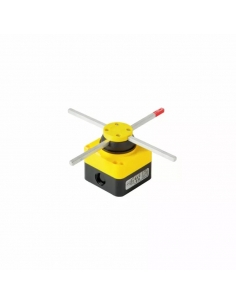

Position limiter,limit switch, for crane bridges, hoists, lifting systems and industrial systems in general, crossbars and four positions (0º/90º/180º/ 270º) without mechanical interlocking. Reference: FFH003 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.
