Magnetothermic 1 pole 6A curve C - Tracon
Magnetothermic 1 pole 6A curve C - Tracon

Magnetothermic 1 pole 6A curve C - Tracon

€2.48 Tax included

€2.05 tax excl.

1-pole 6A curve C Magnetothermic , for protection against short circuits and overloads. Breaking capacity of 6000A (6kA). Active protection with individual status indication.


Reference: TDZ-1C-6

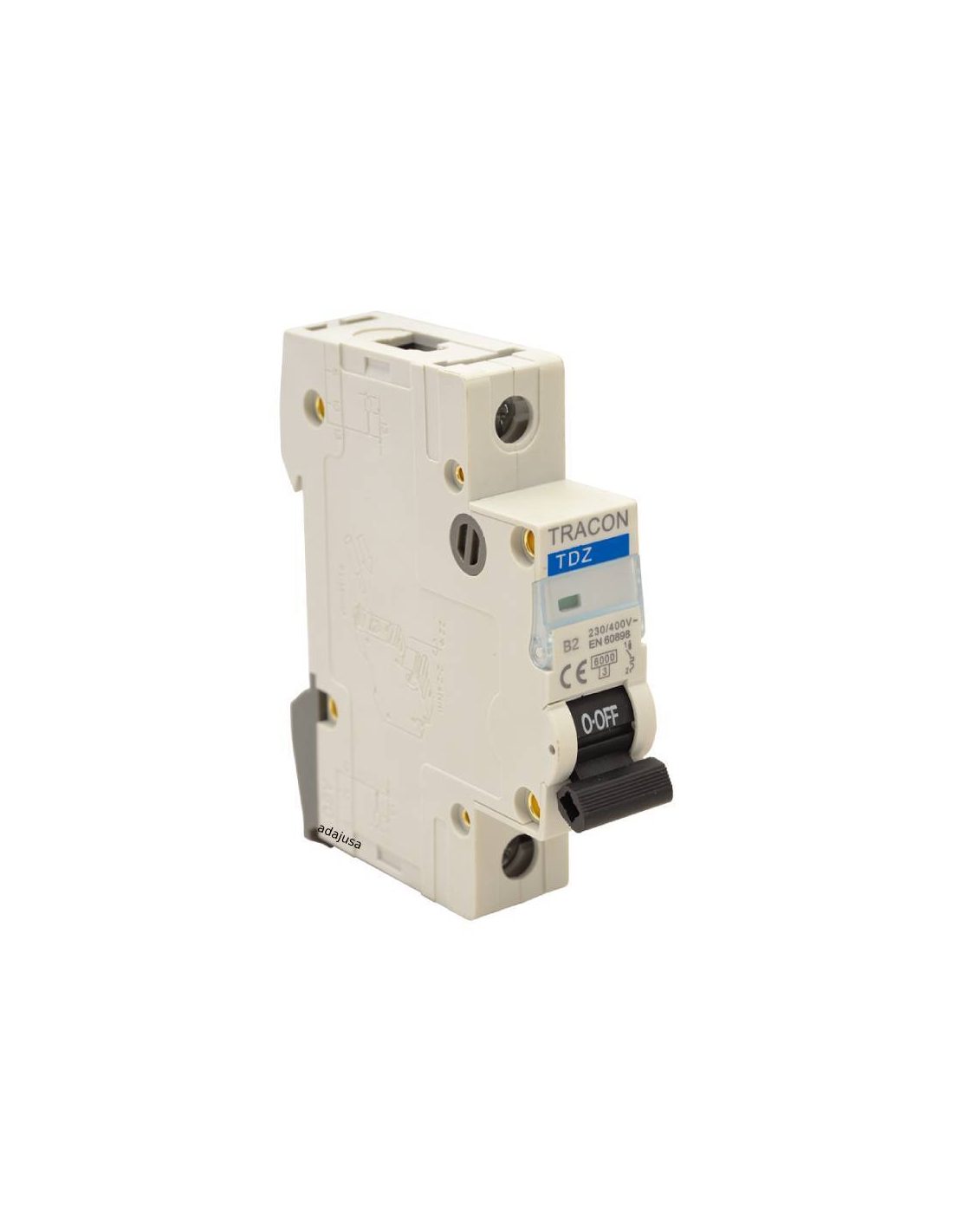

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


1-pole 6A 6kA curve "C" Magnetothermic , for protection against short circuits and overloads in machinery. With an assigned breaking capacity of 6000A (6kA), active pole protection with status indication. Made of fireproof thermoplastic material. Manufactured according to the reference standard EN 60898. High reliability and performance allowing a high number of work cycles.

As the main characteristics of this range of products we can highlight:

  • Compact design and structure
  • Two ways to connect cables and distribution combs
  • Transparent protective cover for the protection of identification labels
  • Visual status indication
  • Supports the assembly of a large number of accessories



Technical characteristics:

  • Manufacturer/Distributor: Tracon
  • Manufacturer reference: TDZ-1C-6
  • Rated current (In): 6A
  • Number of poles: 1
  • Breaking capacity (Icn): 6000A (6kA)
  • Maximum operating voltage (Ue): 230/400Vac, 50/60Hz
  • Nominal insulation voltage (Ui): 500Vac
  • Rated impulse withstand voltage (Uimp): 4kV
  • Characteristic curve: C
  • Electrical life: > 6000 cycles
  • Mechanical life: > 20000 cycles
  • Operating temperature: -25ºC...+55ºC
  • Protection grade: IP20
  • Conductor section: 1.5 - 25mm²
  • Allows the use of pin-type connection combs
  • Supports the assembly of auxiliary elements
  • Sealable in OFF position
  • Regulations: EN 60898



Dimensions:





Material for professional use, install in compliance with the regulations in force at the installation site.
